Create a canvas app to manage projects

  • Article

Note

This article is part of a tutorial series on using Power Apps, Power Automate, and Power BI with SharePoint Online. Make sure you read the series introduction to get a sense of the big picture, as well as related downloads.

In this task, we'll build a canvas app from scratch. This app allows a user to assign a manager to projects and to update project details. You will see some of the same controls and formulas you saw in the first app, but you will build more of the app yourself this time. The process is more complex, but you'll learn more, so we think it's a fair trade-off.

Quick review of Power Apps Studio

Power Apps Studio has three panes and a ribbon that make app creation feel like building a slide deck in PowerPoint:

  1. Left navigation bar, which shows a hierarchical view of all the app's screens and controls, as well as thumbnails of the screens
  2. Middle pane, which contains the app screen you are working on
  3. Right-hand pane, where you set options like layout and data sources
  4. Property drop-down list, where you select the properties that formulas apply to
  5. Formula bar, where you add formulas (like in Excel) that define app behavior
  6. Ribbon, where you add controls and customize design elements

Power Apps Studio.

Step 1: Create screens

With that review out of the way, let's start building an app.

Create the app

Create a blank canvas app with Phone layout, and "Project Management app" name.

Add four screens to the app

In this step, we'll create four blank screens for the app. We'll use different screen layouts, depending on the screen's purpose. We'll add to these screens in later steps.

Screen Purpose
SelectTask Opening screen; navigate to other screens
AssignManager Assign a manager to an approved project
ViewProjects View a list of projects, with summary information
UpdateDetails View and update the details for a project

  1. On the Home tab, click or tap NewScreen, then Scrollable screen.

    Scrollable screen.

  2. Rename the screen to SelectTask.

    Rename screen.

  3. Create and rename additional screens:

    1. Click or tap NewScreen, then Scrollable screen. Rename the screen to AssignManager.
    2. Click or tap NewScreen, then List screen. Rename the screen to ViewProjects.
    3. Click or tap NewScreen, then Form screen. Rename the screen to UpdateDetails.

  4. Select the ellipsis (. . .) next to Screen1, then click or tap Delete.

    Delete screen.

The app should now look like the following image.

All app screens.

Step 2: Connect to a list created using Microsoft Lists

In this step, we'll connect to the Project Details list. We only use one list in this app, but you could easily connect to both if you want to extend the app.

  1. In the left navigation bar, click or tap the SelectTask screen.

  2. In the right pane, click or tap Add data source.

    Connect to data.

  3. Click or tap New connection.

    New connection.

  4. Click or tap SharePoint.

    SharePoint connection.

  5. Select Connect directly (cloud services), then click or tap Create.

    Connect directly (cloud services).

  6. Enter a SharePoint URL, then click or tap Go.

    SharePoint URL for connection.

  7. Select the Project Details list, then click or tap Connect.

    Select Project Details list.

    The Data sources tab in the right pane now shows the connection that you have created.

    Data sources tab.

Step 3: Build the SelectTask screen

In this step, we'll provide a way to navigate to the other screens in the app - working with some of the controls, formulas, and formatting options that Power Apps provides.

Update the title and insert introductory text

  1. In the left navigation bar, select the SelectTask screen.

  2. In the middle pane, select the default [Title], then in the formula bar, update the Text property to "Contoso Project Management".

    Text property in formula bar.

  3. On the Insert tab, click or tap Label, then drag the label down below the top banner.

    Add label.

  4. In the formula bar, set the following properties for the label:

    • Color property = DarkGray

    • Size property = 18

    • Text property = "Click or tap a task to continue..."

      Update label text.

Add two navigation buttons

  1. On the Insert tab, click or tap Button, then drag the button below the label.

    Add button.

  2. In the formula bar, set the following properties for the button:

    • OnSelect property = Navigate(AssignManager, Fade). When you run the app and click this button, you navigate to the second screen in the app, with a fade transition between the screens.

    • Text property = "Assign Manager"

  3. Resize the button to accommodate the text.

    Resize button.

  4. Insert another button with the following properties:

    • OnSelect property = Navigate(ViewProjects, Fade).

    • Text property = "Update Details"

      Update button text.

      Note

      The button is labeled Update Details, but we first navigate to the ViewProjects screen to select a project to update.

Run the app

The app doesn't do a lot yet, but you can run it if you like:

  1. Click or tap the SelectTask screen (the app always starts from the selected screen in Preview mode in Power Apps Studio).

  2. Click or tap Run app icon. in the upper right corner to run the app.

  3. Click or tap one of the buttons to navigate to another screen.

  4. Click or tap Close app preview icon. in the upper right corner to close the app.

Step 4: Build the AssignManager screen

In this step, we'll use a gallery to display all projects that have been approved but don't yet have a manager. We'll add other controls, so you can assign a manager.

Note

We'll build a page later in the app that allows you to edit all fields for a project (including the manager field), but we thought it would be cool to build a screen like this one as well.

  1. Save the changes you've made so far.

  2. In the left navigation bar, click or tap the AssignManager screen.

Update the title and insert introductory text

  1. Change [Title] to Assign Manager.

  2. Add a label with the following properties:

    • Color property = DarkGray

    • Size property = 18

    • Text property = "Select a project, then assign a manager"

      Assign manager layout.

Add a back arrow to return to the SelectTask screen

  1. Click or tap the blue bar at the top of the screen.

  2. On the Insert tab, click or tap Icons, then click or tap Left.

    Insert left arrow.

  3. Move the arrow to the left side of the blue bar, and set the following properties:

    • Color property = White

    • Height property = 40

    • OnSelect property = Navigate(SelectTask, Fade)

    • Width property = 40

      Add back button.

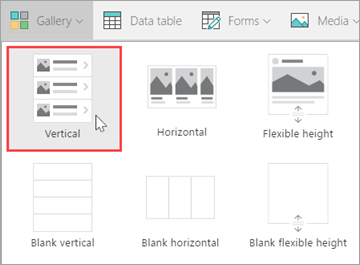

  1. On the Insert tab, click or tap Gallery, then Vertical.

    Add a vertical gallery.

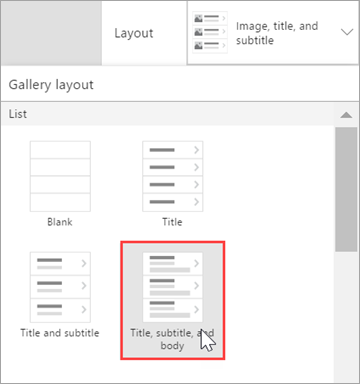

  2. Select Title, subtitle, and body from the Layout menu in the right pane.

    Change the gallery layout.

    The gallery now has the right layout, but it still has the default sample text. We'll fix that next.

    Gallery with default text.

  3. Set the following properties for the gallery:

    • BorderThickness property = 1

    • BorderStyle property = Dotted

    • Items property = Filter('Project Details', PMAssigned="Unassigned"). Only projects with no manager assigned are included in the gallery.

      Gallery with text from list.

  4. In the right pane, update the fields to match the following list:

    • ApprovedDate

    • Status

    • Title

      Gallery.

  5. Resize labels in the gallery as appropriate, and remove the arrow from the first gallery item (we don't need to navigate anywhere from this gallery).

    Remove arrow icon.

    The screen should now look like the following image.

    Formatted gallery.

Change the color of an item if it's selected

  1. Select the gallery, then set the TemplateFill property to If (ThisItem.IsSelected=true, Orange, White).

  2. Select an item in the gallery. The screen should now look like the following image.

    Gallery with selected item.

Add a label, text input, and OK button to submit manager assignments

  1. Click or tap outside the gallery you've been working on.

  2. On the Insert tab, click or tap Label. Drag the label below the gallery, to the left. Set the following properties for the label:

    • Size property = 20

    • Text property = "Manager:"

    Add Manager label.

  3. On the Insert tab, click or tap Text, then Text input. Drag the text input below the gallery, in the center. Set the following properties for the drop down:

    • Default property = ""

    • Height property = 60

    • Size property = 20

    • Width property = 250

    Add text input.

  4. On the Insert tab, click or tap Button. Drag the button below the gallery, to the right. Set the following properties for the button:

    • Height property = 60

    • OnSelect property = Patch('Project Details', LookUp('Project Details', ID = Gallery1.Selected.ID), {PMAssigned: TextInput1.Text}). For more information, see Formula deep-dive.

    • This formula updates the Project Details list, setting a value for the PMAssigned field.

    • Size property = 20

    • Text property = "OK"

    • Width property = 80

    Add OK button.

The completed screen should now look like the following image.

Finished Assign Manager screen.

Step 5: Build the ViewProjects screen

In this step, we'll change properties for the gallery on the ViewProjects screen. This gallery displays items from the Project Details list. You select an item on this screen, then you edit the details on the UpdateDetails screen.

  1. In the left navigation bar, click or tap the ViewProjects screen.

  2. Change [Title] to "View Projects".

  3. In the left navigation bar, click or tap BrowserGallery1 under ViewProjects.

  4. Select Title, subtitle, and body from the Layout menu in the right pane.

    Change the gallery layout.

    The gallery now has the right layout, with the default sample text.

    Gallery with right layout.

  5. Select the refresh button Refresh icon., and set its OnSelect property to Refresh('Project Details').

  6. Select the new item button Add new icon., and set its OnSelect property to NewForm(EditForm1); Navigate(UpdateDetails, ScreenTransition.None).

Add a back arrow to return to the SelectTask screen

  1. In the left navigation bar, click or tap the AssignManager screen.

  2. Select the back arrow you added there, and copy it.

  3. Paste the arrow into the ViewProjects screen and position it to the left of the refresh button.

    Back button.

    All its properties come along with it, including the OnSelect property of Navigate(SelectTask, Fade).

  1. Select the BrowseGallery1 gallery, and set the Items property of the gallery to SortByColumns(Filter('Project Details', StartsWith(Title, TextSearchBox1.Text)), "Title", If(SortDescending1, Descending, Ascending)).

    This sets the data source of the gallery to the Project Details list, and uses the Title field for search and sort.

  2. Select the Details arrow icon. in the first gallery item, and set the OnSelect property to Navigate(UpdateDetails, None).

    View Projects gallery - first item selected.

  3. In the right pane, update the fields to match the following list:

    • Status

    • PMAssigned

    • Title

      Gallery fields.

      The completed screen should now look like the following image.

      View Project screen finished.

Step 6: Build the UpdateDetails screen

In this step, we'll connect the edit form on the UpdateDetails screen to our data source, and we'll make some property and field changes. On this screen, you edit details for a project that you selected on the View Projects screen.

  1. In the left navigation bar, click or tap the UpdateDetails screen.

  2. Change [Title] to "Update Details".

  3. In the left navigation bar, click or tap EditForm1 under UpdateDetails.

  4. Set the following properties for the form:

    • DataSource property = 'Project Details'

    • Item property = BrowseGallery1.Selected

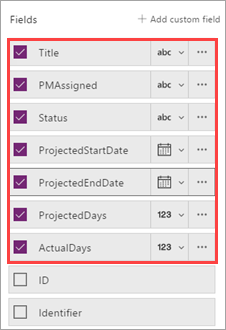

  5. With the form still selected, in the right pane click or tap the checkbox for the following fields, in the order shown:

    • Title

    • PMAssigned

    • Status

    • ProjectedStartDate

    • ProjectedEndDate

    • ProjectedDays

    • ActualDays

      Edit form fields.

  6. Select the cancel button Cancel icon., and set its OnSelect property to ResetForm(EditForm1); Back().

  7. Select the save button Checkmark save icon. and check out the OnSelect formula - SubmitForm(EditForm1). Because we're using the edit form control, we can use Submit(), instead of using Patch() like we did earlier.

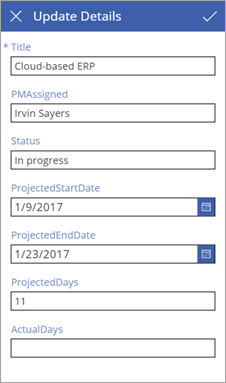

The completed screen should now look like the following image (if the fields are blank, make sure you select an item on the View Projects screen).

Update Details screen finished.

Step 7: Run the app

Now that the app is complete, let's run it to see how it works. We'll add a link on the SharePoint site to the app. You will be able to run the app in the browser, but you might need to share the app for other people to run it. For more information, see Share your app.

  1. In the Office 365 app launcher, click or tap Power Apps.

    Power Apps in Office 365 app launcher.

  2. In Power Apps, click or tap the ellipsis (. . .) for Project Management app, then Open.

    Select Project Management app.

  3. Copy the address (URL) for the app in the browser.

    Copy app URL.

  4. In SharePoint, click or tap EDIT LINKS.

    Edit SharePoint site links.

  5. Click or tap (+) link.

    Add app link to SharePoint site.

  6. Enter "Project Management app", and paste in the address for the app.

    Edit link properties.

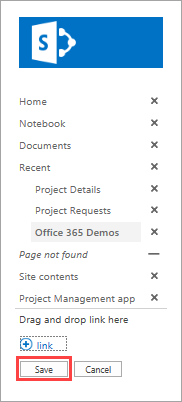

  7. Click or tap OK, then Save.

    Save link changes.

Assign a manager to a project

Now that we have the app in our SharePoint site, we'll assume the role of the project approver - we'll look for any projects that don't have a manager assigned, and assign a manager to one of the projects. Then we'll assume the role of the project manager, and add some information about a project that is assigned to us.

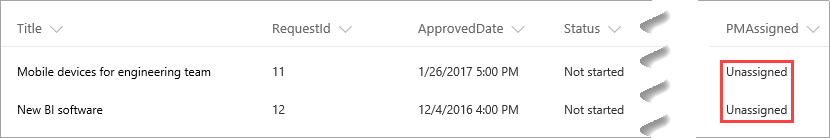

  1. First, let's look at the Project Details list in SharePoint. Two projects have a value of Unassigned in the PMAssigned column. We will see these in the app.

    Unassigned projects in list.

  2. Click or tap the link that you created to the app.

  3. On the first screen, click or tap Assign Manager.

    App intro screen.

  4. On the Assign Manager screen, you see the two unassigned projects from the list. Select the New BI software project.

    Gallery with item selected.

  5. In the Manager text input, enter "Joni Sherman", then click OK.

    The change is applied to the list, and the gallery refreshes so only the remaining unassigned project is displayed.

    Assign manager to project.

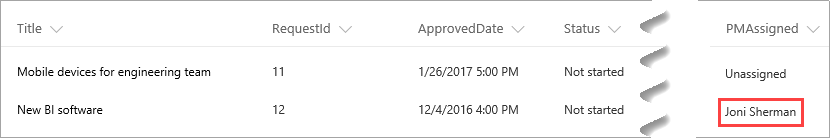

  6. Go back to the list and refresh the page. You'll see that the project entry is now updated with the project manager name.

    Project manager assigned in list.

Update details for the project

  1. Click or tap Back icon. to go back to the first screen, then click or tap Update Details.

    Update details.

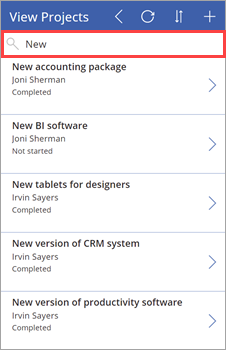

  2. On the View Projects screen, enter "New" in the search box.

    Search in app gallery.

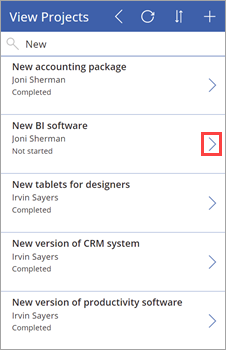

  3. Click Details arrow icon. for the New BI software item.

    Gallery item selected.

  4. On the Update Details screen, set the following values:

    • The ProjectedStartDate field = "3/6/2017"

    • The ProjectedEndDate field = "3/24/2017"

    • The ProjectedDays field = "15"

    Update item details.

  5. Click or tap Check mark icon. to apply the change to the list.

  6. Close the app, and go back to the list. You see that the project entry is now updated with the date and day changes.

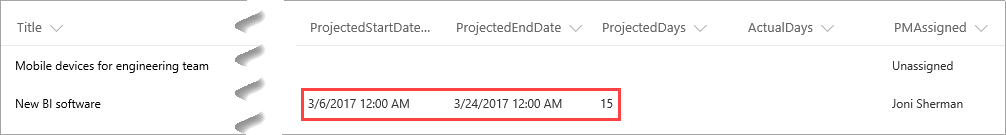

    Updated list.

Formula deep-dive

This is the second optional section on Power Apps formulas. In the first deep-dive, we looked at one of the formulas that Power Apps generates for the browse gallery in a three-screen app. In this deep-dive, we'll look at a formula that we use for the AssignManager screen of our second app. Here's the formula:

Patch( 'Project Details', LookUp( 'Project Details', ID = Gallery1.Selected.ID ), {PMAssigned: TextInput1.Text} )

What does this formula do? When you select an item in the gallery and click the OK button, the formula updates the Project Details list, setting the PMAssigned column to the value that you specify in the text input. The formula uses functions to do its work:

  • The Patch function modifies one or more records of a data source.

  • The LookUp function finds the first record in a table that satisfies a formula.

When you put the functions together in the formula, here's what happens:

  1. When you click the OK button, the Patch function is called to update the Project Details list.

  2. Within the Patch function, the LookUp function identifies which row of the Project Details list to update. It does this by comparing the ID of the selected gallery item to the ID in the list. For example, an ID of 12 means that the entry for New BI software should be updated.

  3. Now that the Patch function has the right ID, it updates the PMAssigned field to the value in TextInput1.Text.

Next steps

The next step in this tutorial series is to create a Power BI report to analyze projects.

See also
