Create a mobile task flow

Design a flow in Dynamics 365 for phones or Dynamics 365 for tablets based on common tasks your users perform. For example, if they need to regularly perform a series of follow-up steps after client meetings, create a task flow. When users tap the new task in their mobile app, it will lead them through from start to finish so they don't forget an important step.

Task flows can use multi-entity forms and logic, and can have form logic that runs across the task flow pages.

Important

Task flows are deprecated and will be replaced by the immersive experience for business process flows that is planned for release. More information: Task flows are deprecated

Create a task flow

1. Make sure that you have the Manager, Vice President, CEO-Business Manager, System Administrator, or System Customizer security role or equivalent permissions.

   Check your security role

   1. Follow the steps in View your user profile.

   2. Don’t have the correct permissions? Contact your system administrator.

2. Go to Settings > Processes.

3. On the Actions toolbar, select New.

4. In the Create Process dialog box, complete the required fields:

   • Enter a process name.

   • In the Category list, select Business Process Flow.

   • In the Entity list, select the entity you want.

5. Select the Run process as a task flow (Unified Interface only) option.

6. Choose OK.

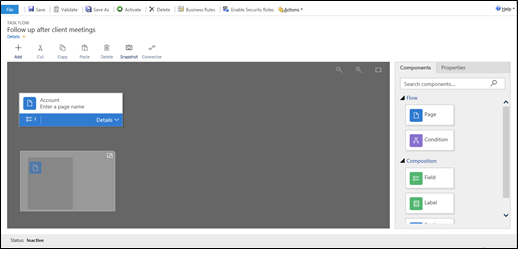

   The task flow designer opens in a new window.



7. If your users will progress from one page to another in order, drag the Page component from the Components tab on the right side of the screen and drop it on the + sign in the appropriate spot. To add a name for a page, select the page, select the Properties tab, type a new name, and then select Apply.

8. To add a branch to the task flow, drag the Condition component from the Components tab and drop it on the + sign in the appropriate spot. To set properties for the condition, select the condition, set the properties in the Properties tab, and then select Apply.

   Note

   As you add pages and conditions to the task flow, you'll see a minimap in the lower-left corner of the window that shows all the pages and conditions in the task flow.

9. To add a field, label, or section label to a page, drag Field, Label, or Section Label from the Components tab to the appropriate page. To change the properties for one of these items, select the item, set the properties in the Properties tab, and then select Apply.

10. To validate the task flow, select Validate on the action bar.

11. To save the process as a draft, select Save at the top of the screen. (As long as a process is a draft, people won’t be able to use it.)

12. To activate the task flow so that people can use it, select Activate.

Tip

Here are a few tips to keep in mind as you work on your task flow in the designer window:

• To take a snapshot of everything in the task flow window, select Snapshot on the action bar.
• To connect a valid component to another valid component in the designer, select Connector on the action bar.
• You can make the images on the screen larger or smaller by selecting the Increase the zoom level or Decrease the zoom level buttons in the upper-right corner of the screen. Select the Fit to canvas button to blow the images up to the largest size that fits on the screen.
