Enable Ajax Loader in ASP.NET MVC Step By Step

Article
1/17/2024

Introduction

This article explains about how to generate Ajax loader in ASP.NET MVC application using Ajax step by step procedure.

Background

User can use a different application and they do not about application processing methodologies. When a user gives request to the server that it may take time to respond to given request, while waiting for the request we need to give the indication to a user. If does not give any indication, user does not know what is happening in the application. Ajax loader indicates to the user, application is processing in the background.

Step 1

Go to Visual Studio and Select New Project then select ASP.NET Web Application as per below image.

Step 2

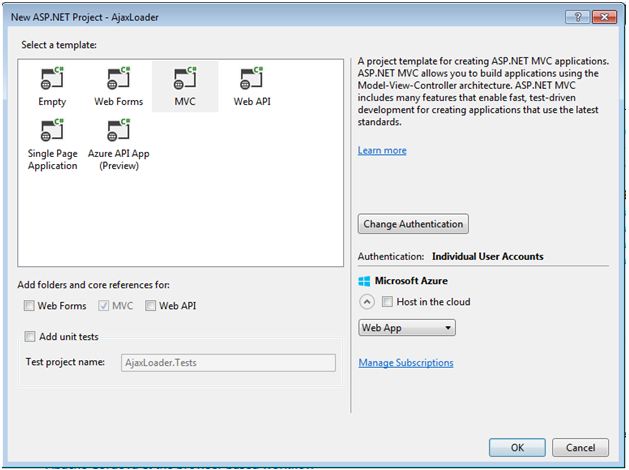

Select MVC from a template type. ASP.NET MVC allows you to build application using the Model-View-Controller architecture.

Step 3

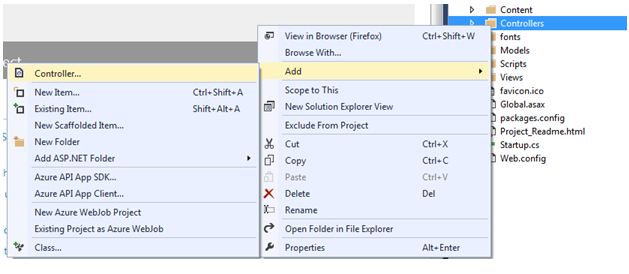

Go to solution explorer. Right click on “Controller” folder and select Add then go to the controller.

Step 4

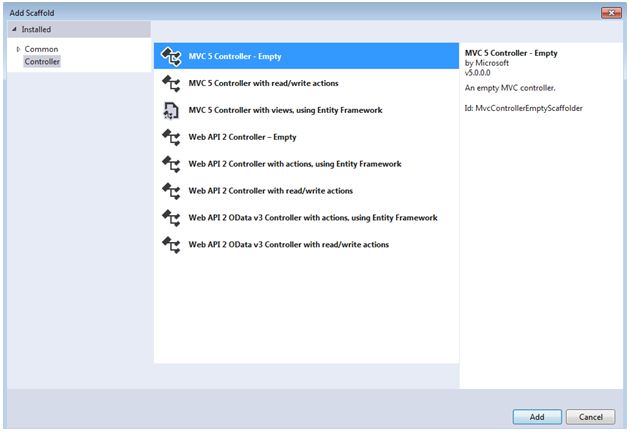

After clicking controller “Add Scaffold” window will be open. Now select MVC 5 Controller – Empty in “Add Scaffold” window and click Add button.

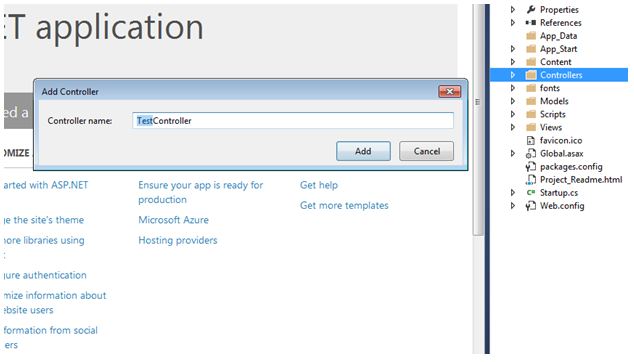

Finally, give controller name whatever you want after click Add button.

Step 5

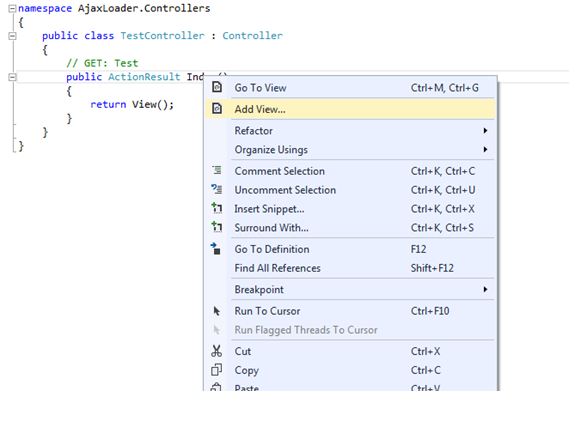

Add view from action results in added controller. Right click on action result and add view.

Step 6

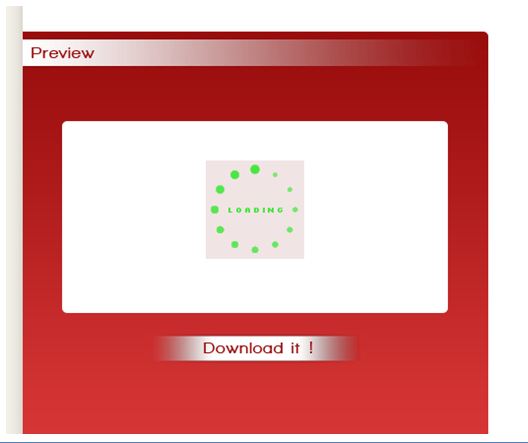

Download Ajax loader image from any free website. We can download from http://www.ajaxload.info/ website. There are many websites available for download Ajax loader image.

Step 7

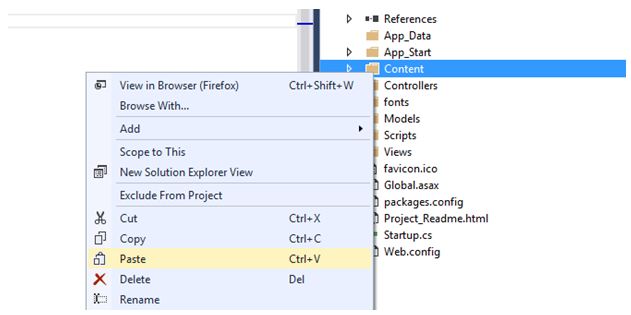

We can select loader color as well as background color and different loader style. After selecting your loader style and click download. After downloading, copy your loader image from your system and past into “Content” folder in your project.

Step 8

Now we can use Ajax loader wherever need in our applications. For example, if give request to get some report or result in the application, It will take some times to response because it processing in background.

Wherever take the time to response to given request at that place we use Ajax loader for indication to a user.

Write below Ajax code for enabling to Ajax Loader in View Page.

Code

<script src="~/Scripts/jquery-1.10.2.js"></script>

 <h2>Welcome To Ajax Loader</h2>

 <div id="divLoader" style="display:none;">

  <img src="~/Content/ajax-loader.gif" alt="Loader" />

 </div>

 <input type="submit" id="btnSubmit" value="Submit" />

 <script>

    $("#btnSubmit").click(function () {

         $("#divLoader").show();

        $.ajax({

            url: '/Test/Submit',

            dataType: "json",

            type: "POST",

            contentType: 'application/json; charset=utf-8',

            data: {},

            //async: true,

            //processData: false,

           // cache: false,

            success: function (data) {

                $("#divLoader").hide();

                alert(data);

            },

            error: function (xhr) {

                $("#divLoader").hide();

                alert('error');

            }

        })

    });

</script>

Explanation

Insert “image” tag in “div” tag and give useful “Id” name for “div” tag. Normally we hide the div tag using style. When to submitting to request to server for processing we enable “div” tag, so Ajax loader image will be displayed. Using above code, enable Ajax loader image on button click. After we get a response from server we hide the image wheatear response success or not. If success will show success message otherwise will show an error message.

Step 9

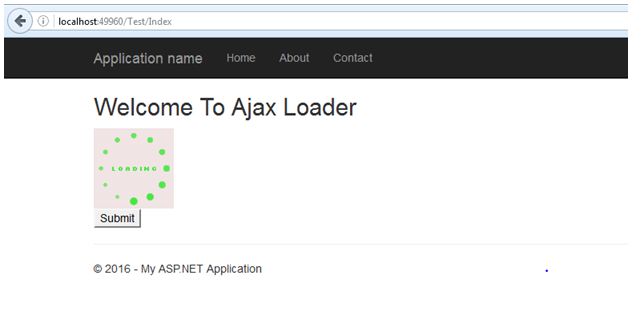

Finally, run application and give request to submit form values to the server. While submitting form values to server Ajax loader will enable up to complete our request.

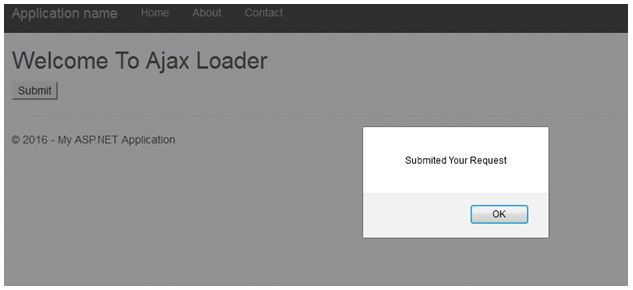

After processing given request finally success message will be displayed.

Conclusion

Every application we use Ajax loader to indication purpose to user. These step by step Enable Ajax loader images in ASP.NET MVC help to many fresher and intermediate level developers.
