Nano Server: Deploying an Internet Information Services (IIS) Web Server

  • Article

https://msdnshared.blob.core.windows.net/media/2016/05/0640_NinjaAwardTinyGold.pngGold Award Winner

1. Introduction

In this article, we will demonstrate deploying an Internet Information Services (IIS) role on a Windows Server 2016 Technical Preview 4 Nano Server. Taking the advantage of Nano Server being a dedicated web server with a small disk footprint that is born in the cloud for the cloud.

↑ Return to Top

2. Preparation IIS for Nano Server Image

2.1. Joining Nano Server to Domain with Harvested BLOB

There is a few methods in joining a Nano Server to a Domain. This approach utilises DJoin to create the Nano Server computer object in the Domain Controller and output the harvested BLOB file for provisioning of a Nano Server using New-NanoServerImage Cmdlet.

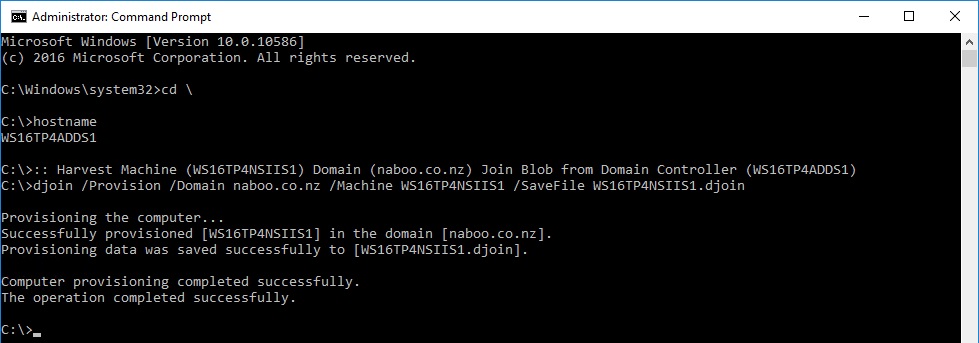

In this example, I have logged in to the Domain Controller and issued the command below;

# Harvest Machine (WS16TP4NSIIS1) Domain (naboo.co.nz) Join Blob from Domain Controller (WS16TP4ADDS1)

djoin /Provision /Domain naboo.co.nz /Machine WS16TP4NSIIS1 /SaveFile WS16TP4NSIIS1.djoin

Once the *.djoin is generated, copy the file to the machine where you will be using to generate a Nano Server image.

↑ Return to Top

2.2. Getting Started with Nano Server (IIS and Domain Joined) Creation

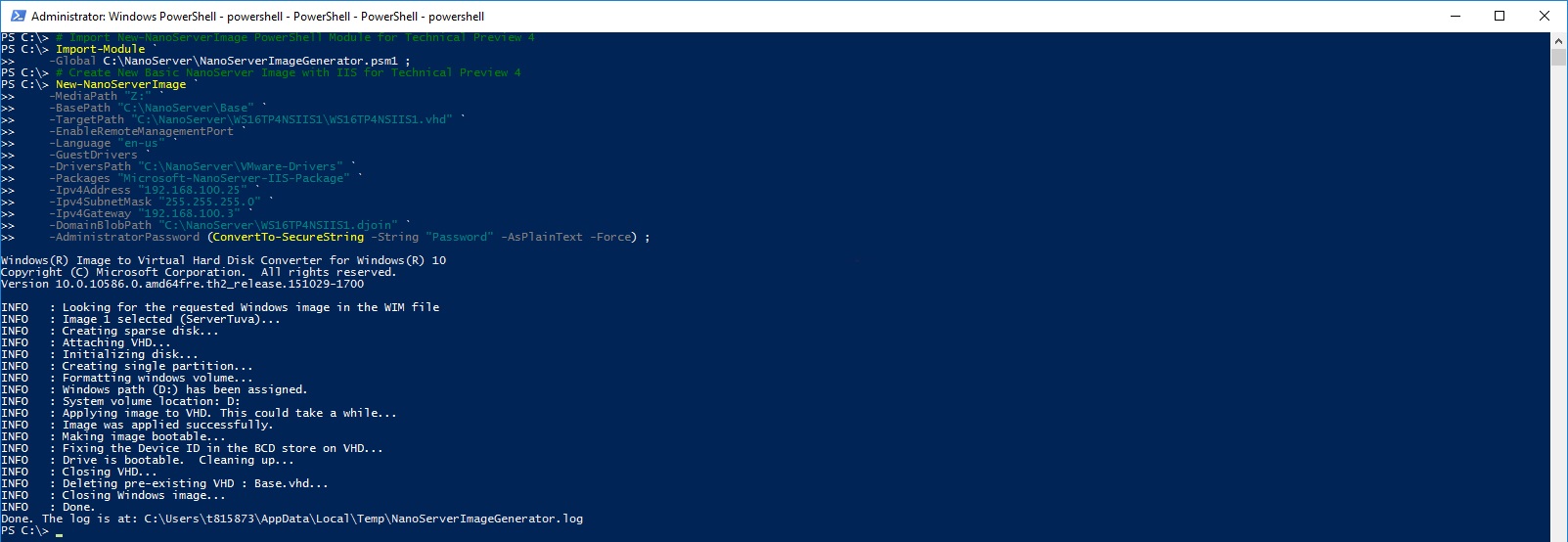

In this example, we will create a Nano Server with IIS package that is joined to the Domain for DNS URL resolution capability.

# Import New-NanoServerImage PowerShell Module for Technical Preview 4

Import-Module `

    -Global C:\NanoServer\NanoServerImageGenerator.psm1 ;

# Create New Basic NanoServer Image with IIS for Technical Preview 4 with IIS Package

New-NanoServerImage `

    -MediaPath "Z:" `

    -BasePath "C:\NanoServer\Base" `

    -TargetPath "C:\NanoServer\WS16TP4NSIIS1\WS16TP4NSIIS1.vhd" `

    -EnableRemoteManagementPort `

    -Language "en-us" `

    -GuestDrivers `

    -DriversPath "C:\NanoServer\VMware-Drivers" `

    -Packages "Microsoft-NanoServer-IIS-Package" `

    -Ipv4Address "192.168.100.25" `

    -Ipv4SubnetMask "255.255.255.0" `

    -Ipv4Gateway "192.168.100.3" `

    -DomainBlobPath "C:\NanoServer\WS16TP4NSIIS1.djoin" `

    -AdministratorPassword (ConvertTo-SecureString -String "Password" -AsPlainText -Force) ;

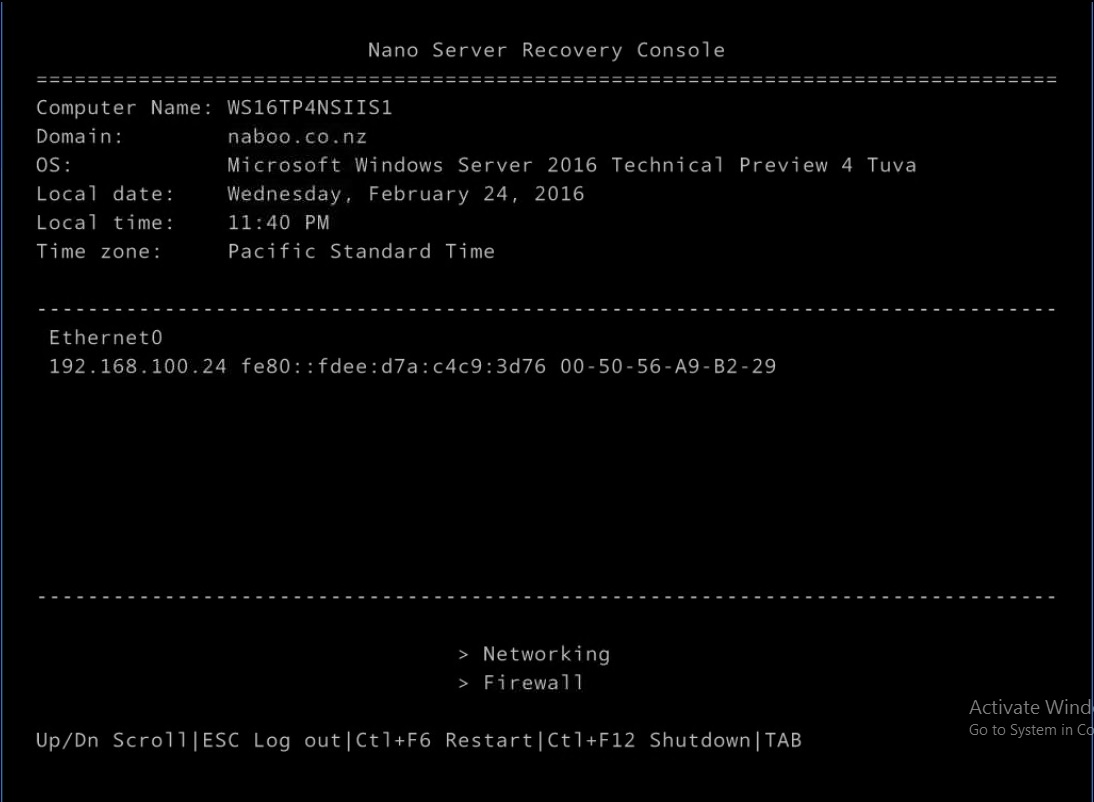

Verify and obtain the Nano Server IP Address from the Nano Server Recovery Console

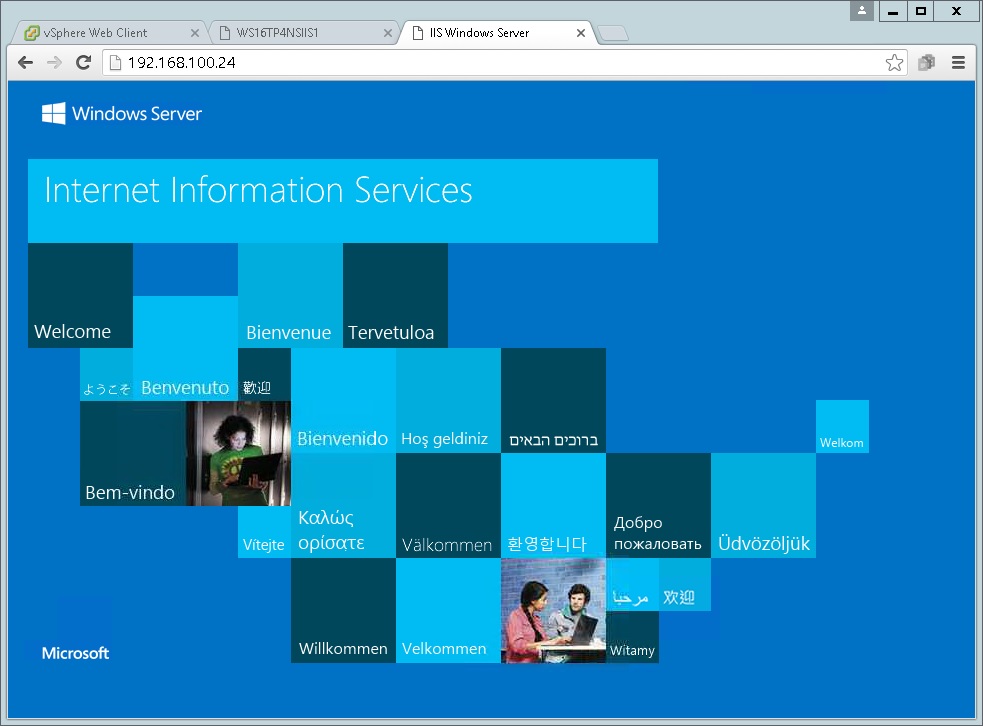

Verify the website is loading from another machine;

  1. Launch a Web Browser
  2. Input the IP Address of the Nano Server
  3. Verify that the IIS Default Website is loading

↑ Return to Top

2.2.1. Manage Nano Server remotely using PowerShell Session

In this example, we will connect to Nano Server remotely using Enter-PSSession PowerShell Cmdlet to manage the Nano Server remotely and configure the Primary DNS Server Address and DNS Search Suffix List.

# Verify if the Nano Server is a Trusted Hosts

Get-Item `

    -Path WSMan:\localhost\Client\TrustedHosts ;

# Set the Nano Server IP Address to be a Trusted Hosts

Set-Item `

    -Path WSMan:\localhost\Client\TrustedHosts `

    -Value "192.168.100.24" `

    -Force ;

# Establish a remote PowerShell Session to the Nano Server

Enter-PSSession `

    -ComputerName 192.168.100.24 `

    -Credential (New-Object `

        -TypeName System.Management.Automation.PSCredential `

        -ArgumentList "192.168.100.24\Administrator", `

        (ConvertTo-SecureString `

            -String "Password" `

            -AsPlainText `

            -Force) `

    ) ;

↑ Return to Top

2.2.2. Configure the Network Interface DNS Server Address and Search Suffix List

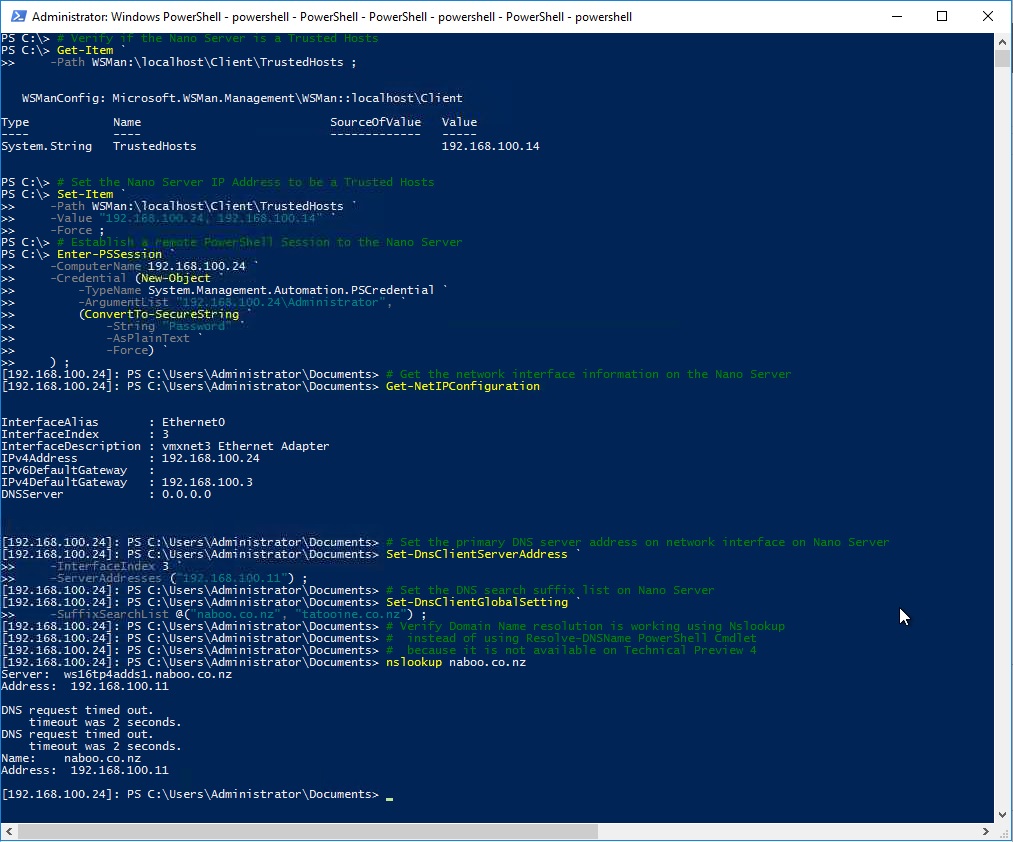

In this example, it demonstrate on how to configure the Network Interface DNS Server Address and Search Suffix List. Unfortunately, we cannot use Resolve-DNSName PowerShell Cmdlet and therefore utilise the NSLookup instead.

# Get the network interface information on the Nano Server

Get-NetIPConfiguration ;

# Set the primary DNS server address on network interface on Nano Server

Set-DnsClientServerAddress `

    -InterfaceIndex 3 `

    -ServerAddresses ("192.168.100.11") ;

# Set the DNS search suffix list on Nano Server

Set-DnsClientGlobalSetting `

    -SuffixSearchList @("redmond.com", "contoso.com") ;

# Verify Domain Name resolution is working using Nslookup

#  instead of using Resolve-DNSName PowerShell Cmdlet

#  because it is not available on Technical Preview 4

nslookup redmond.com

Once the Primary DNS Server Address and Search Suffix List has configured, you will need to ensure that the DNS Server has an A Record of the Nano Server Hostname. With the A Record of the Nano Server in the DNS Server, you will be able to verify the Default Website with the Hostname on Port 80.

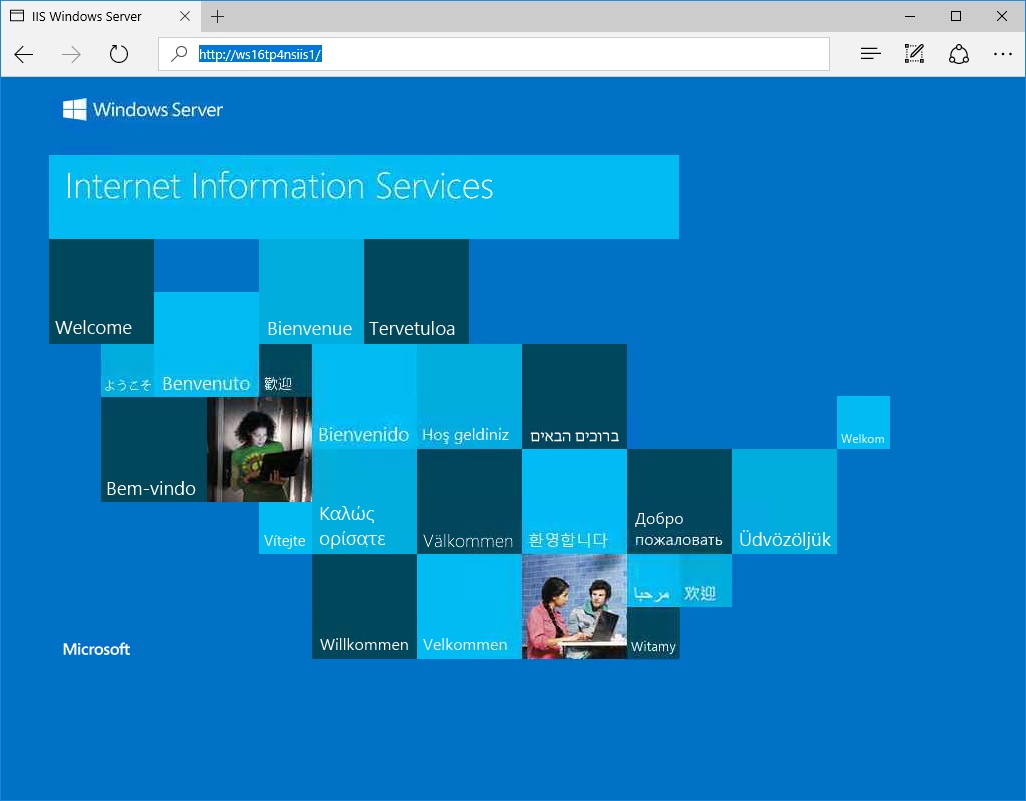

Verify the website is loading from another machine;

  1. Launch a Web Browser
  2. Input the Hostname of the Nano Server
  3. Verify that the IIS Default Website is loading

↑ Return to Top

3. Getting Started with a new Web Site on Nano Server

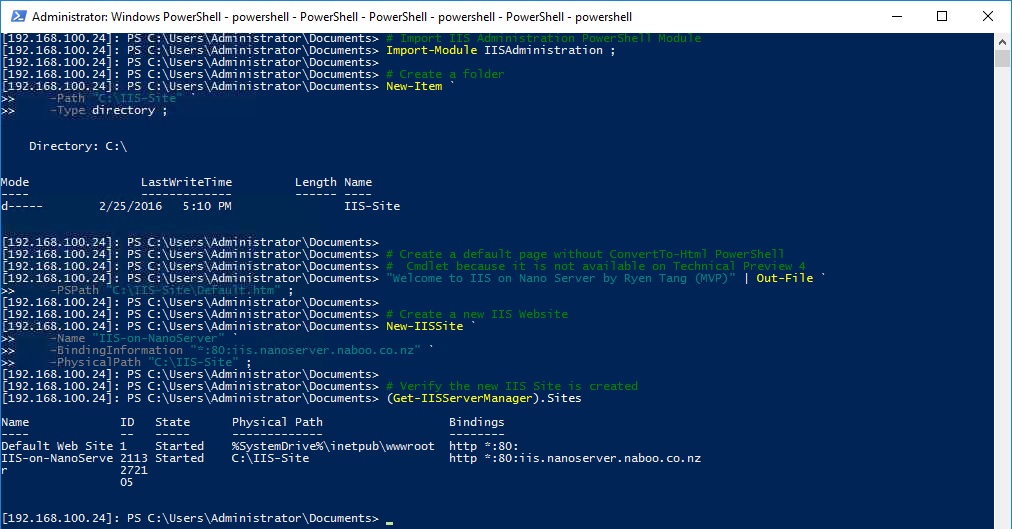

In this example, we will demonstrate how to create another Web Site on IIS in Nano Server using the new IISAdministration PowerShell module with a custom web binding information.

# Import IIS Administration PowerShell Module

Import-Module IISAdministration ;

# Create a folder

New-Item `

    -Path "C:\IIS-Site" `

    -Type directory ;

# Create a default page without ConvertTo-Html PowerShell

#  Cmdlet because it is not available on Technical Preview 4

"Welcome to IIS on Nano Server by Ryen Tang (MVP)" | Out-File `

    -PSPath "C:\IIS-Site\Default.htm" ;

# Create a new IIS Website

New-IISSite `

    -Name "IIS-on-NanoServer" `

    -BindingInformation "*:80:iis.nanoserver.redmond.com" `

    -PhysicalPath "C:\IIS-Site" ;

# Verify the new IIS Site is created

(Get-IISServerManager).Sites ;

Create the custom web binding DNS A Record to resolve the custom web binding URL.

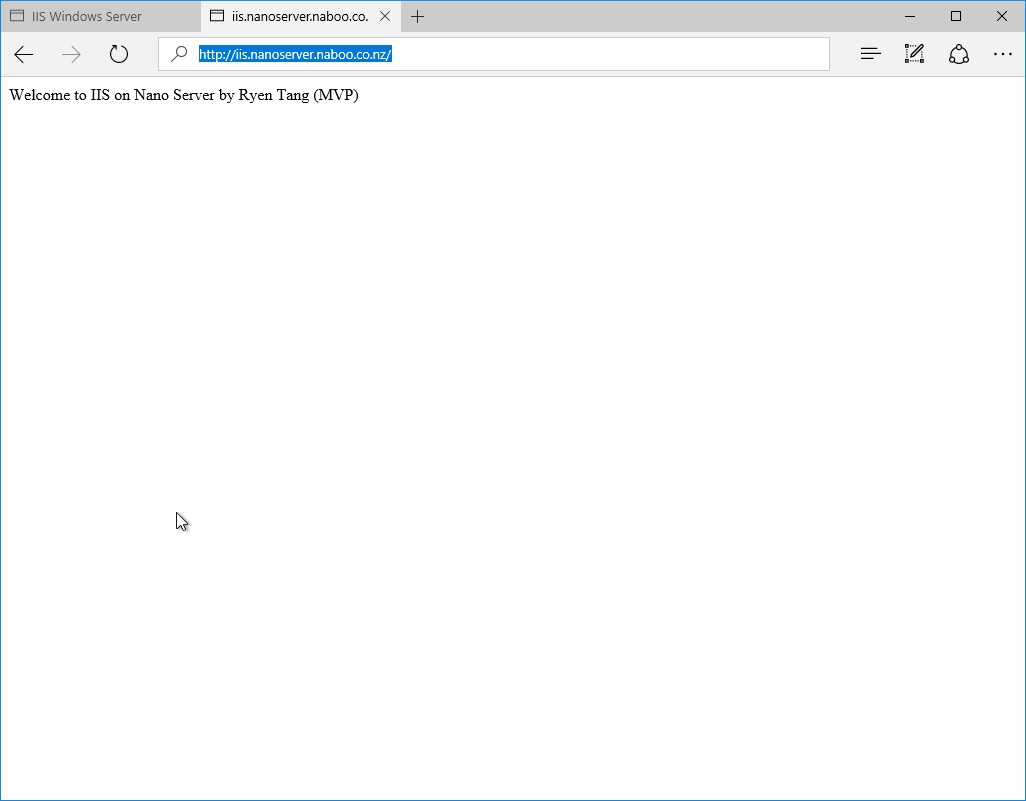

Verify the website is loading from another machine;

  1. Launch Web Browser
  2. Input the URL
  3. Verify the New Web Site with custom Web Binding is loading

↑ Return to Top
