VB.NET: International Time & Currency converter
Overview
This is an old one written a few years ago, but still a favourite. It's an International Times and major currencies converter. Internally it uses two datatables, one which is currency rates downloaded from the European Central Bank, and the other contains TimeZone information and the dominant currency for each geographical area. These two datatables are used extensively throughout the application.

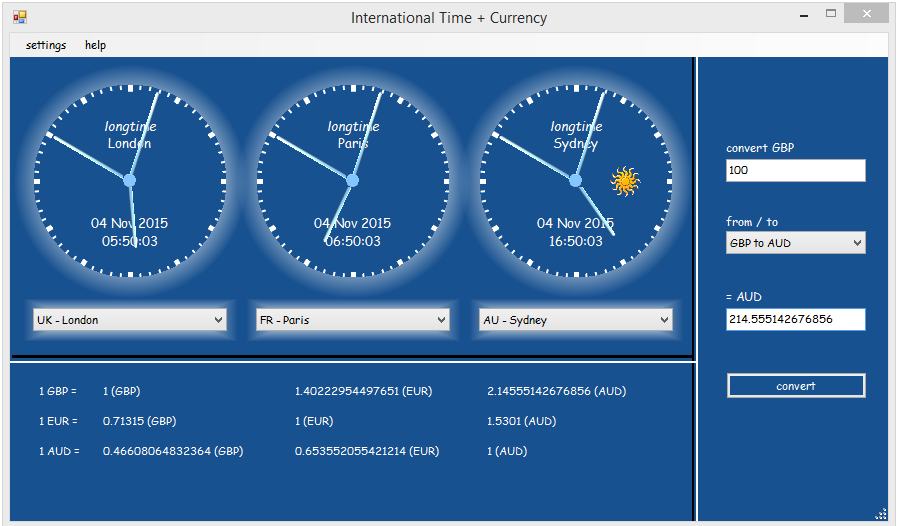

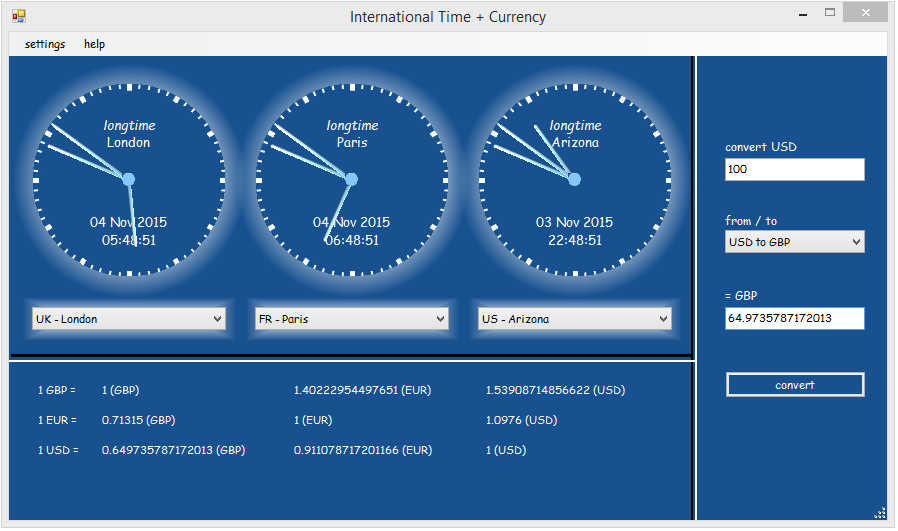

The application consists of three international timezone clocks, each of which has a ComboBox linked to it allowing changing Timezone (which also changes currency displayed).The clocks can display time for any timezone and also have a Daylight Saving Time indicator.These clocks are analog and show hour, minute, and second, and have an optional alarm which is also displayed in an analog fashion as a red alarm hand.There is a calculator for converting specific amounts from one currency unit to another.
Animating these clocks is achieved through three timers, each with a 250 millisecond interval, which draw the background of the clock (i.e. the legend, timezone region, the date, DST indicator, and a digital representation of the time in 24 hour format), then call the Shared procedures in the clockWorks class - checkAlarm, drawAlarmHand, drawHands. These methods sound the alarm at the appropriate time, and complete the drawing of the clock face.
The clockWorks Class
This contains three Shared methods for checking and sounding alarms, and drawing hands on the analog clocks:
Public Class clockWorks
'' global alarms list
Public Shared alarms As New List(Of alarm)
Public Shared clock1AlarmForm As Form
Public Shared clock2AlarmForm As Form
Public Shared clock3AlarmForm As Form
Public Shared minutePic As Bitmap = New Bitmap(My.Resources.MINUTE1)
Public Shared secondPic As Bitmap = New Bitmap(My.Resources.SECOND1)
Public Shared hourPic As Bitmap = New Bitmap(My.Resources.HOUR1)
Public Shared centerPic As Bitmap = New Bitmap(My.Resources.CENTRE)
Public Shared Sub checkAlarm(ByVal placeName As String, ByVal code As String, ByVal alarmTime As TimeSpan, ByVal timeOffset As DateTimeOffset, ByRef clock As Form)
'"hh:mm tt"
Dim alarm As alarm = alarms.Where(Function(a) a.placeName = placeName AndAlso a.code = code).FirstOrDefault
If alarmTime.Hours = timeOffset.Hour AndAlso alarmTime.Minutes = timeOffset.Minute Then
alarms(alarms.FindIndex( Function (a) a Is alarm)).alarmSounded = True
clock = New aFrm1(placeName.Substring(5), timeOffset.ToString("hh:mm tt"))
clock.ShowDialog()
End If
End Sub
Public Shared Sub drawAlarmHand(ByVal g As Graphics, ByVal alarmTime As TimeSpan)
g.SmoothingMode = Drawing2D.SmoothingMode.HighQuality
g.InterpolationMode = Drawing2D.InterpolationMode.HighQualityBicubic
Dim redPen1 As New Pen(Color.Red, 1)
Dim redPen3 As New Pen(Color.Red, 3)
Dim redPen5 As New Pen(Color.Red, 5)
Dim angleDegHour As Single
Dim angleRadHour As Single
Dim lineX2 As Single
Dim lineY2 As Single
'' the alarm hand is 3 different thickness lines
'' rather than a picture like the other hands
angleDegHour = CSng ((alarmTime.Hours * 30) + (alarmTime.Minutes * 0.5))
'Turn degrees to radians (because of the sin and cos operations)
angleRadHour = CSng (Math.PI * angleDegHour / 180)
'Calculate X2 and Y2
lineX2 = CSng (96 + Math.Sin(angleRadHour) * 60)
lineY2 = CSng (96 - Math.Cos(angleRadHour) * 60)
'draw the line (5 pixel thickness, 60 pixels long)
g.DrawLine(redPen5, 96, 96, lineX2, lineY2)
'Calculate X2 and Y2
lineX2 = CSng (96 + Math.Sin(angleRadHour) * 63)
lineY2 = CSng (96 - Math.Cos(angleRadHour) * 63)
'draw the line (3 pixel thickness, 63 pixels long)
g.DrawLine(redPen3, 96, 96, lineX2, lineY2)
'Calculate X2 and Y2
lineX2 = CSng (96 + Math.Sin(angleRadHour) * 65)
lineY2 = CSng (96 - Math.Cos(angleRadHour) * 65)
'draw the line (1 pixel thickness, 65 pixels long)
g.DrawLine(redPen1, 96, 96, lineX2, lineY2)
End Sub
Public Shared Sub drawHands(ByVal g As Graphics, ByVal timeOffset As DateTimeOffset)
g.SmoothingMode = Drawing2D.SmoothingMode.HighQuality
g.InterpolationMode = Drawing2D.InterpolationMode.HighQualityBicubic
'' draw the hour hand
g.RotateTransform( CSng (-90 + ((timeOffset.Hour * 30) + (timeOffset.Minute * 0.5))))
g.DrawImage(hourPic, -2, -2)
g.ResetTransform()
'' draw the minute hand
g.TranslateTransform(96, 96)
g.RotateTransform( CSng (-90 + (((timeOffset.Minute * 60) + timeOffset.Second) * 0.1)))
g.DrawImage(minutePic, -2, -2)
g.ResetTransform()
'' draw the second hand
g.TranslateTransform(96, 96)
g.RotateTransform(-90 + (timeOffset.Second * 6))
g.DrawImage(secondPic, -2, -2)
g.ResetTransform()
End Sub
End Class
The getCurrencyRates Class
This contains just one Shared function that downloads currency rates and creates and returns that as a Datatable. These currency rates are published daily by the European Central Bank in an online xml file:
Imports <xmlns:alias="http://www.ecb.int/vocabulary/2002-08-01/eurofxref">
Public Class getCurrencyRates
Public Shared Function getRatesAsDatatable() As DataTable
Dim xml As XDocument = XDocument.Load("http://www.ecb.int/stats/eurofxref/eurofxref-daily.xml")
Dim dt As New DataTable
Dim items = From node In xml...<alias:Cube>...<alias:Cube>...<alias:Cube> _
Select New With { _
.code = node.@currency, _
.rate = node.@rate}
dt.Columns.Add("code")
dt.Columns.Add("EUR")
For Each i In items
dt.Columns.Add(i.code)
Next
Dim dr As DataRow
Dim firstRow As Boolean = True
For Each i In items
Dim columns() As String
If firstRow Then
dr = dt.NewRow
ReDim columns(dt.Columns.Count - 1)
columns(0) = "EUR"
columns(1) = (1).ToString
dr.ItemArray = columns
dt.Rows.Add(dr)
firstRow = False
End If
ReDim columns(dt.Columns.Count - 1)
columns(0) = i.code
columns(1) = i.rate
dr = dt.NewRow
dr.ItemArray = columns
dt.Rows.Add(dr)
Next
firstRow = True
For Each row As DataRow In dt.Rows
If firstRow Then
dt.Rows(0).Item(dt.Rows(0).Item(0).ToString) = 1
firstRow = False
Else
dt.Rows(0).Item(row.Item(0).ToString) = 1 / CDbl(row.Item(1).ToString)
row.Item(row.Item(0).ToString) = 1
End If
Next
For c As Integer = 2 To dt.Columns.Count - 1
For r As Integer = 1 To dt.Rows.Count - 1
dt.Rows(r).Item(dt.Columns(c).ColumnName) = CDbl(dt.Rows(0).Item(dt.Columns(c).ColumnName)) / CDbl(dt.Rows(0).Item(dt.Rows(r).Item("code").ToString))
Next
Next
Return dt
End Function
End Class
The timeZones Class
This creates and returns a Datatable containing all international TimeZones:
Public Class timeZones
Public Shared Function GetSystemTimeZones() As DataTable
Dim linesByCountry() As String = My.Resources._2DigitCountryCodes.Split(New String() {Environment.NewLine}, StringSplitOptions.None)
Dim dt As New DataTable
dt.Columns.Add( "region" )
dt.Columns.Add( "tzID" )
dt.Columns.Add( "cc" )
Dim dr As DataRow
Dim lines() As String = My.Resources.CCbyCity.Split(New String() {Environment.NewLine}, StringSplitOptions.None)
For Each tz As TimeZoneInfo In TimeZoneInfo.GetSystemTimeZones
If Not tz.ToString.Contains("Coordinated Universal Time") AndAlso Not tz.ToString.Contains("International Date Line West") Then
Dim parts() As String = tz.ToString.Split(New String() {") "}, StringSplitOptions.None)
Dim regions() As String = parts(1).Split(New String() {", "}, StringSplitOptions.None)
For Each r As String In regions
If r = "Mid-Atlantic" Then Continue For
Dim cc() As String
Dim line As String = lines.Where(Function(s) s.StartsWith(r) OrElse s.Contains(r)).FirstOrDefault
If line = Nothing Then
Continue For
Else
cc = line.Split( "," c)
End If
r = linesByCountry.First( Function (s) s.Substring(5) = r).Trim
dr = dt.NewRow
dr.ItemArray = New String() {r, tz.Id, If(cc.Count > 0, cc(1), "")}
dt.Rows.Add(dr)
If r.Contains("(US & Canada)") Then
dr = dt.NewRow
dr.ItemArray = New String() {"CA - " & r.Substring(5).Trim, tz.Id, "CAD"}
dt.Rows.Add(dr)
End If
Next
End If
Next
Return dt
End Function
End Class
Extended ComboBox
The extended ComboBoxes allow country names to be displayed in the ToolStripStatusLabels below the ComboBox as you move the mouse over the dropped down list.
The ComboBox needs to be subclassed to get a Handle to the dropdown window which is used to create a NativeWindow class where the WM_MOUSEMOVE message is used to identify the item below the mousepointer and display the related country name in the ToolStripStatusLabel below the ComboBox.
Imports System.Runtime.InteropServices
Public Class comboboxEx
Inherits ComboBox
Private Const WM_CTLCOLORLISTBOX As Integer = &H134
Dim label As ToolStripStatusLabel
Public Sub setUpLabels(ByVal lbl As ToolStripStatusLabel)
label = lbl
End Sub
Protected Overrides Sub WndProc(ByRef m As System.Windows.Forms.Message)
MyBase.WndProc(m)
If m.Msg = WM_CTLCOLORLISTBOX Then
Dim n As New nWindow(Me, label)
n.AssignHandle(m.LParam)
End If
End Sub
Protected Overrides Sub OnDropDownClosed(ByVal e As System.EventArgs)
label.Text = ""
MyBase.OnDropDownClosed(e)
End Sub
End Class
Public Class nWindow
Inherits NativeWindow
Private combo As comboboxEx
Private countries() As String
Dim label As ToolStripStatusLabel
Public Sub New(ByVal cb As comboboxEx, ByVal lbl As ToolStripStatusLabel)
combo = cb
countries = My.Resources.countries.Split(New String() {Environment.NewLine}, StringSplitOptions.None)
label = lbl
End Sub
Public Declare Function GetScrollInfo Lib "user32" Alias "GetScrollInfo" (ByVal hWnd As IntPtr, _
ByVal n As Integer, <MarshalAs(UnmanagedType.Struct)> ByRef lpScrollInfo As SCROLLINFO) As Integer
<StructLayout(LayoutKind.Sequential)> _
Public Structure SCROLLINFO
Public cbSize As Integer
Public fMask As Integer
Public nMin As Integer
Public nMax As Integer
Public nPage As Integer
Public nPos As Integer
Public nTrackPos As Integer
End Structure
Private Const SB_ENDSCROLL As Integer = 8
Const SBS_VERT As Integer = 1
Const SIF_RANGE As Integer = 1
Const SIF_PAGE As Integer = 2
Const SIF_POS As Integer = 4
Const SIF_TRACKPOS As Integer = 10
Const SIF_ALL As Integer = (SIF_RANGE Or SIF_PAGE Or SIF_POS Or SIF_TRACKPOS)
Private Const WM_MOUSEMOVE As Integer = &H200
Private lastIndex As Integer = -1
Protected Overrides Sub WndProc(ByRef m As System.Windows.Forms.Message)
If m.Msg = WM_MOUSEMOVE Then
Dim itemHeight As Integer = combo.GetItemHeight(0)
Dim si As New SCROLLINFO
si.fMask = SIF_ALL
si.cbSize = Marshal.SizeOf(si)
GetScrollInfo(Me.Handle, SBS_VERT, si)
Dim newIndex As Integer = si.nPos + (New Point(m.LParam.ToInt32).Y \ itemHeight)
If lastIndex <> newIndex And newIndex <= combo.Items.Count - 1 And newIndex >= 0 Then
lastIndex = newIndex
Dim newItem As DataRowView = DirectCast(combo.Items(lastIndex), DataRowView)
label.Text = countries.First(Function(s) s.Substring(0, 2) = newItem.Item(0).ToString.Substring(0, 2)).Substring(5)
End If
End If
MyBase.WndProc(m)
End Sub
End Class
Other Resources
Full article and download here...
Update Info
Add to resource text files:
City: Pyongyang
Country: North Korea
ICC: KP
Currency code: KPW
18/04/16
Add to My.Resources._2DigitCountryCodes
RU - Kaliningrad
RU - Volgograd
RU - Ekaterinburg
RU - Novosibirsk
RU - Krasnoyarsk
RU - Irkutsk
RU - Yakutsk
RU - Petropavlovsk-Kamchatsky
31/07/16
Add to resource text files:
City: Havana
Country: Cuba
ICC: CU
Currency code: CUP
