Manage notebook format

  • Article

This article describes the default notebook format in Azure Databricks, how to change your notebook format, and how to manage commits if your notebook is in a source-controlled folder.

By default, notebooks in Databricks are created in .ipynb (IPython or Jupyter) format. You can also choose to use source format instead.

You can still import and export notebooks in various formats. See Export and import Databricks notebooks.

Notebook formats

Databricks supports creating and editing notebooks in two formats: IPYNB (default) and source.

You can manage source files, including notebooks, using Git folders. Only certain Databricks asset types are supported in Git folders. The notebook format has implications on what outputs are committed to the remote repository, as described in the table below.

Notebook source format Details
source A basic format that only captures source code, with a suffix that signals the code language, such as .py, .scala, .r and .sql.
IPYNB (Jupyter) A rich format that captures source code, notebook environment, visualization definitions, notebook widgets, and optional outputs. An IPYNB notebook can contain code in any language supported by Databricks notebooks (despite the py part of .ipynb). The IPYNB (Jupyter) format allows the user to optionally commit outputs. IPYNB also supports a better viewing experience for Databricks notebooks on remote Git repositories.

To distinguish Databricks notebooks from regular Python, Scala, and SQL files, Azure Databricks adds the comment “Databricks notebook source” to the top of Python, Scala, and SQL notebooks. This comment ensures that Azure Databricks correctly parses the file as a notebook rather than a script file.

Note

What are “outputs”?

Outputs are the results of running a notebook on the Databricks platform, including table displays and visualizations.

Change default notebook format setting

IPYNB notebooks are the default format when creating a new notebook on Azure Databricks.

To change the default to the Azure Databricks source format, log into your Azure Databricks workspace, click your profile in the upper-right of the page, then click Settings and navigate to Developer. Change the notebook format default under the Editor settings heading.

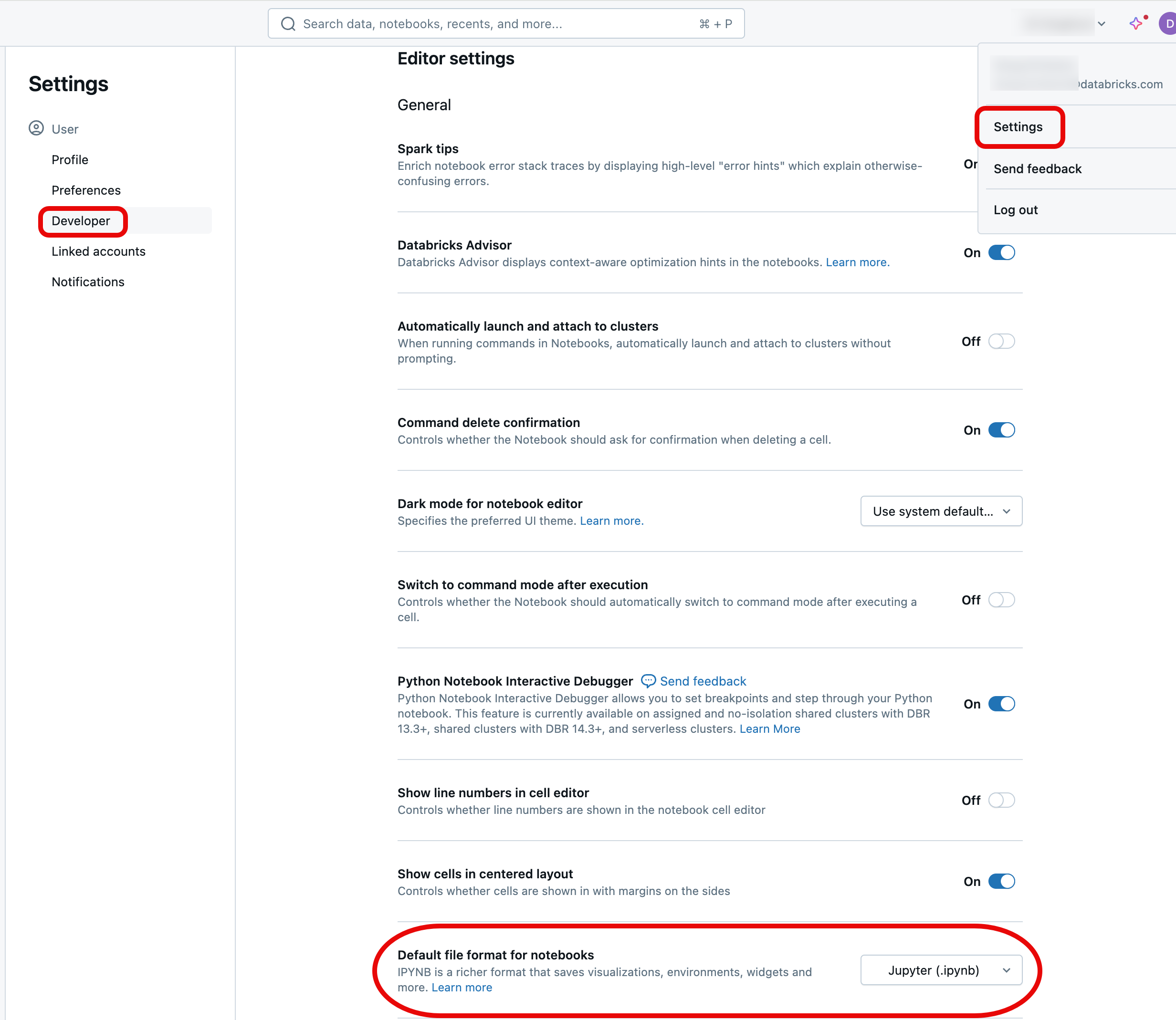

Change the default notebook format in developer settings of your profile

Convert notebook format

You can convert an existing notebook to another format through the Azure Databricks UI.

To convert an existing notebook to another format:

  1. Open the notebook in your workspace.

  2. Select File from the workspace menu, then select Notebook format, then choose the format you want. You can choose either Jupyter (.ipynb) (Recommended) or Source (.scala, .py, .sql, .r). The notebook’s current format is greyed out and has a checkmark next to it.

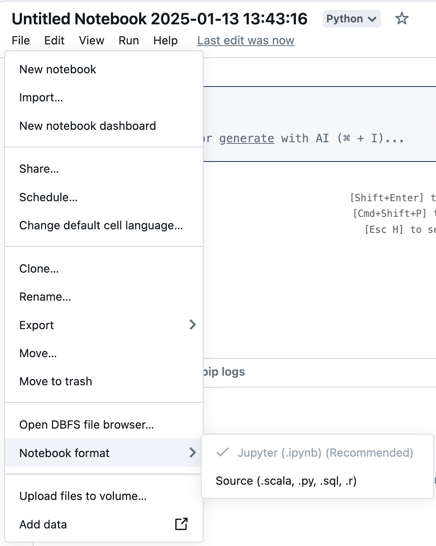

    The workspace file menu, expanded, showing the notebook format option.

For more information on the kinds of notebooks supported in Azure Databricks, read Export and import Databricks notebooks.

Manage IPYNB notebook output commits

For IPYNB notebooks in source-controlled folders, you can manage how notebook outputs are committed to the remote repository.

Allow committing .ipynb notebook output

Outputs can be committed only if a workspace administrator has enabled this feature. By default, the administrative setting for Git folders doesn’t allow .ipynb notebook output to be committed. If you have administrator privileges for the workspace, you can change this setting:

  1. Go to Admin settings > Workspace settings in the Azure Databricks administrator console.

  2. Under Git folders, choose Allow Git folders to Export IPYNB outputs and then select Allow: IPYNB outputs can be toggled on.

    Admin console: Allow Git folders to Export IPYNB outputs.

Important

When outputs are included, the visualization and dashboard configurations are included in the.ipynb notebooks you create.

Control IPYNB notebook output artifact commits

When you commit an .ipynb file, Databricks creates a configuration file that lets you control how you commit outputs: .databricks/commit_outputs.

  1. If you have a .ipynb notebook file but no configuration file in your remote repository, go to the Git Status dialog.

  2. In the notification dialog, select Create commit_outputs file.

    Notebook commit UI: Create commit_outputs file button.

You can also generate configuration files from the File menu. The File menu has a control to automatically update the configuration file where you can specify the inclusion or exclusion of outputs for a specific IPYNB notebook.

  1. In the File menu, select Commit notebooks outputs.

    Notebook editor: Commit notebooks outputs status and control.

  2. In the dialog box, confirm your choice to commit notebook outputs.

    Commit notebooks outputs dialog box.
