Use index recommendations

Index tuning persists the recommendations that it produces in a set of tables located under the intelligentperformance schema in the azure_sys database.

These recommendations can be read using the Index tuning page in Azure portal, or using the Azure CLI az postgres flexible-server index-tuning list-recommendations command.

However, none of those two methods reveal the text of the queries for which the recommendations were produced. This behavior is intentional, because the texts of the queries might contain sensitive information. Seeing the text of those statements should only be allowed to subjects with authorization to access the database. But it shouldn't be allowed to subjects who are only granted access to the instance of Azure Database for PostgreSQL flexible server, as an Azure resource.

Hence, if you need to read the text of the queries, you need to be granted permissions to connect to the database engine, so that you can execute queries to retrieve that information from two views available inside the intelligent performance of the azure_sys database.

Steps to list index recommendations

Portal

Using the Azure portal:

1. Select your Azure Database for PostgreSQL flexible server.

2. In the resource menu, under Intelligent Performance, select Index tuning.

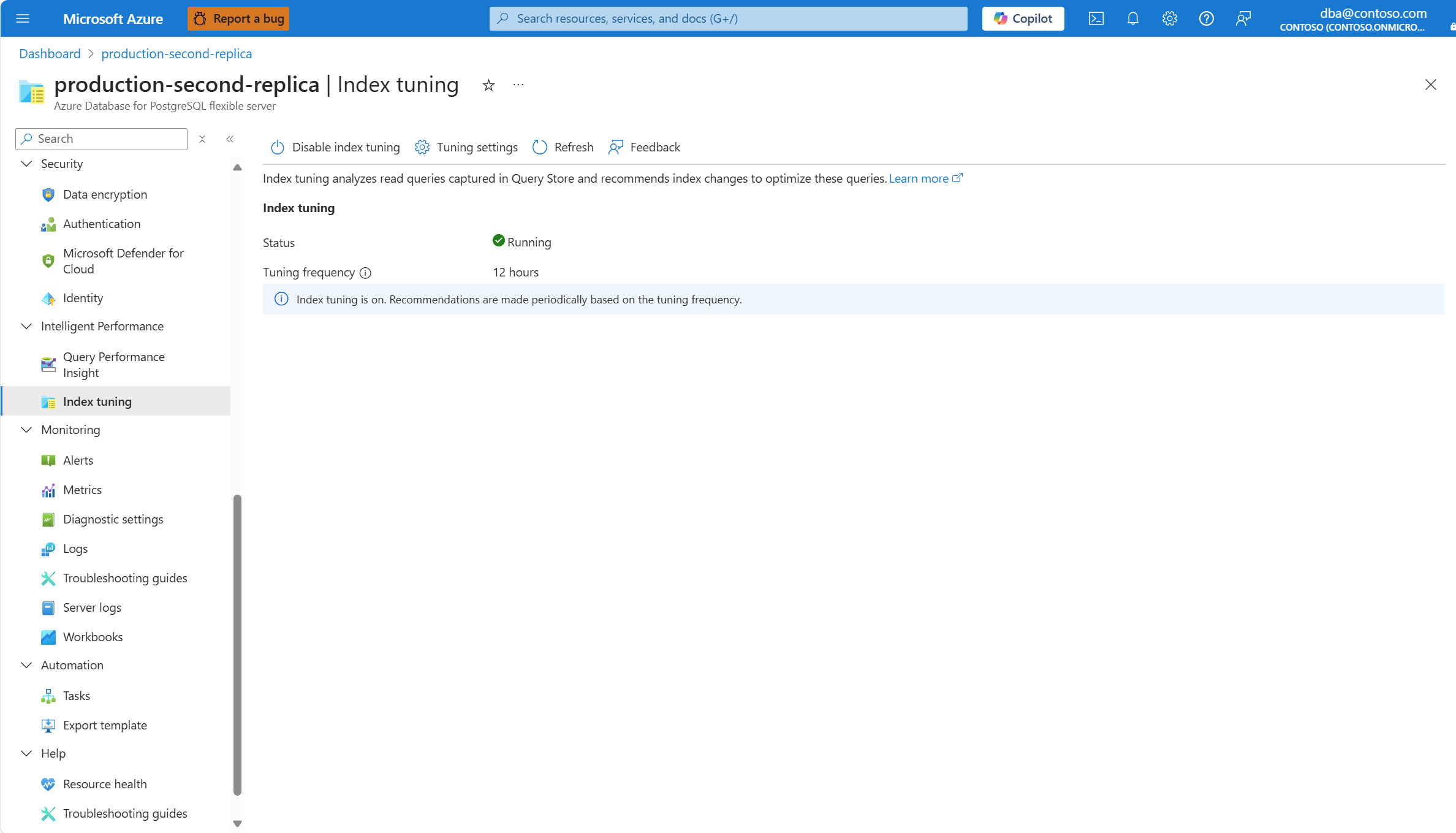

   • If the feature is enabled but no recommendations are produced yet, the screen looks like this:

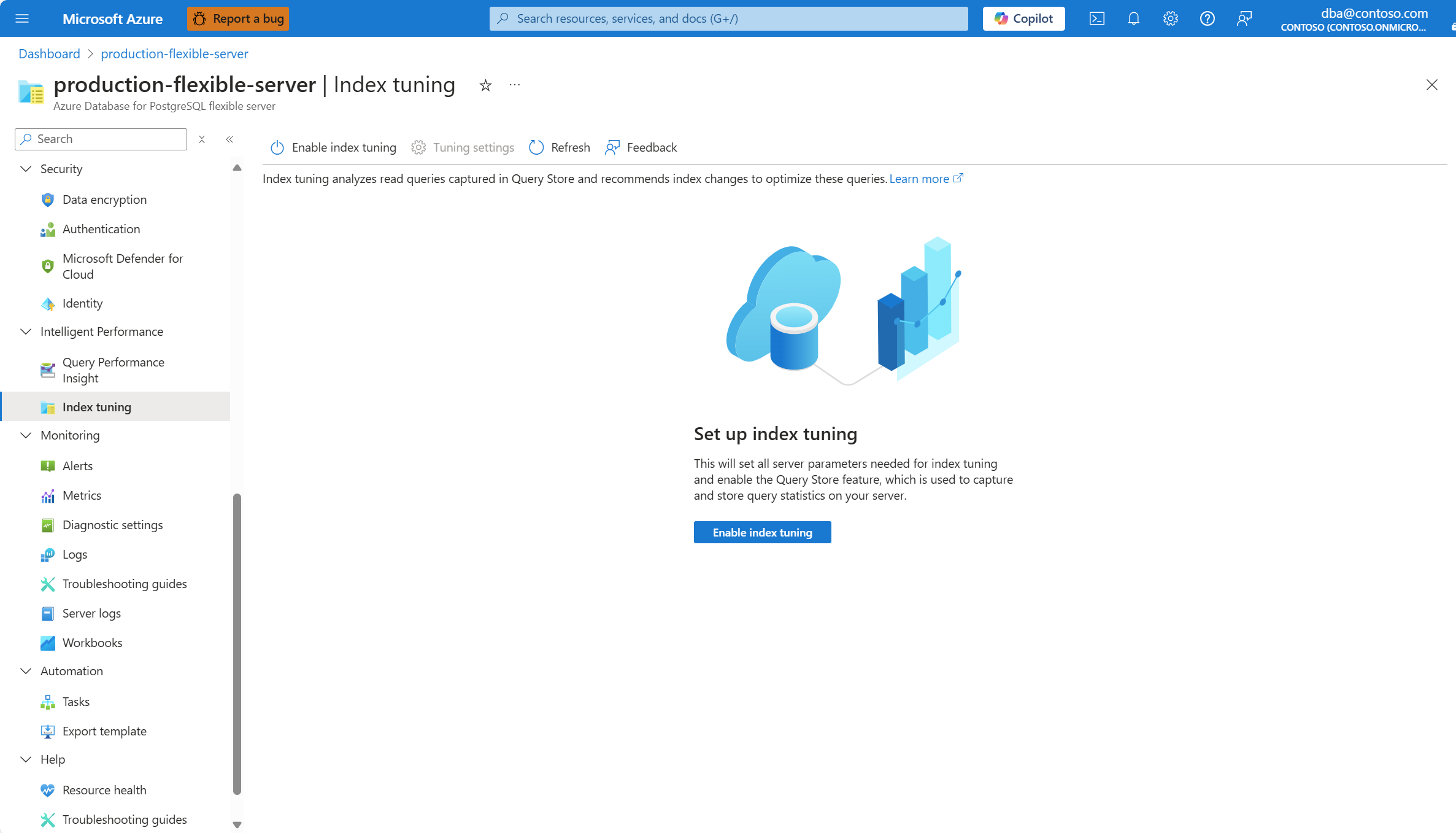

   • If the feature is disabled and it never produced recommendations in the past, the screen looks like this:

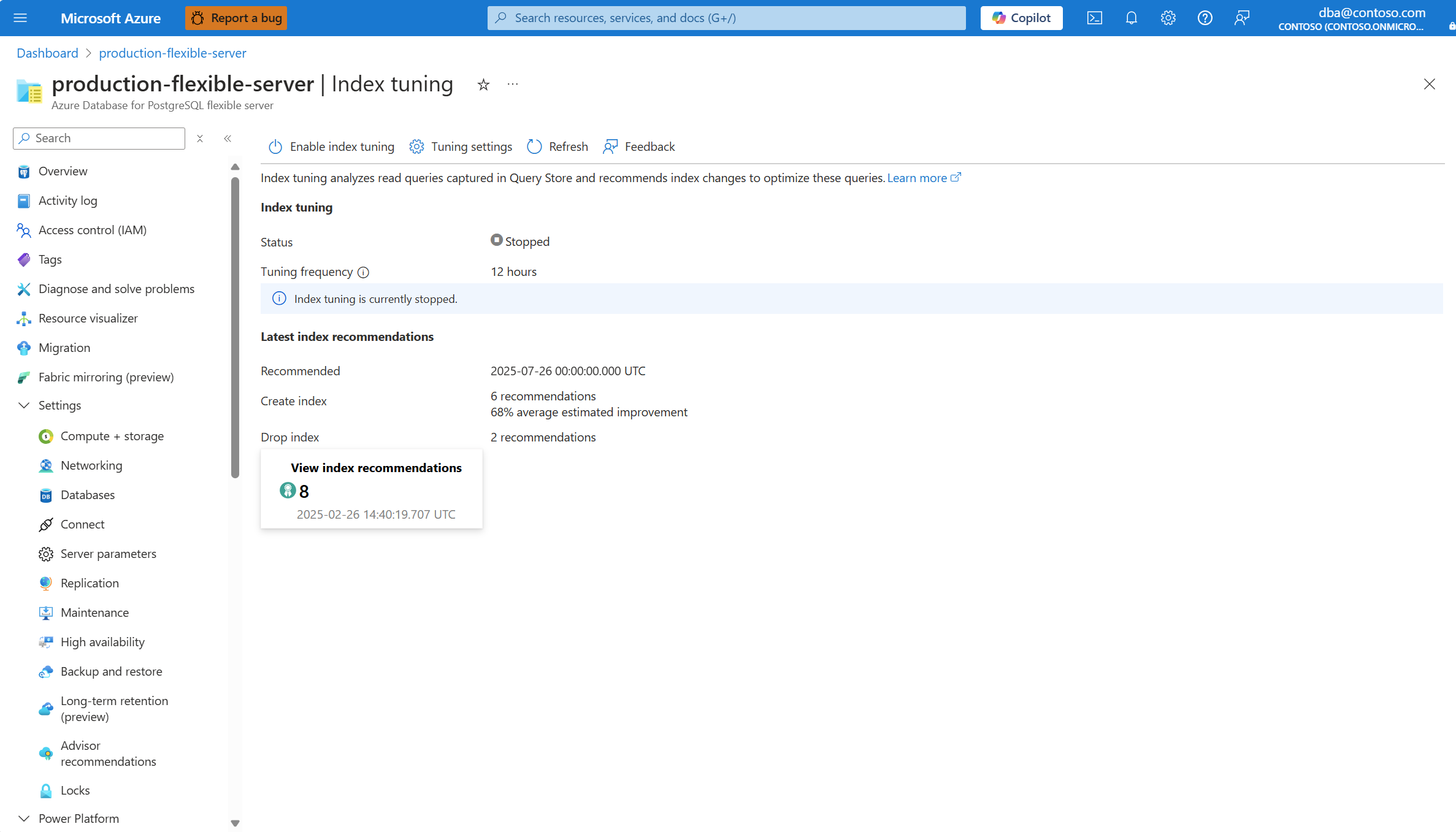

   • If the feature is disabled but it was enabled before and produced recommendations, the screen looks like this:

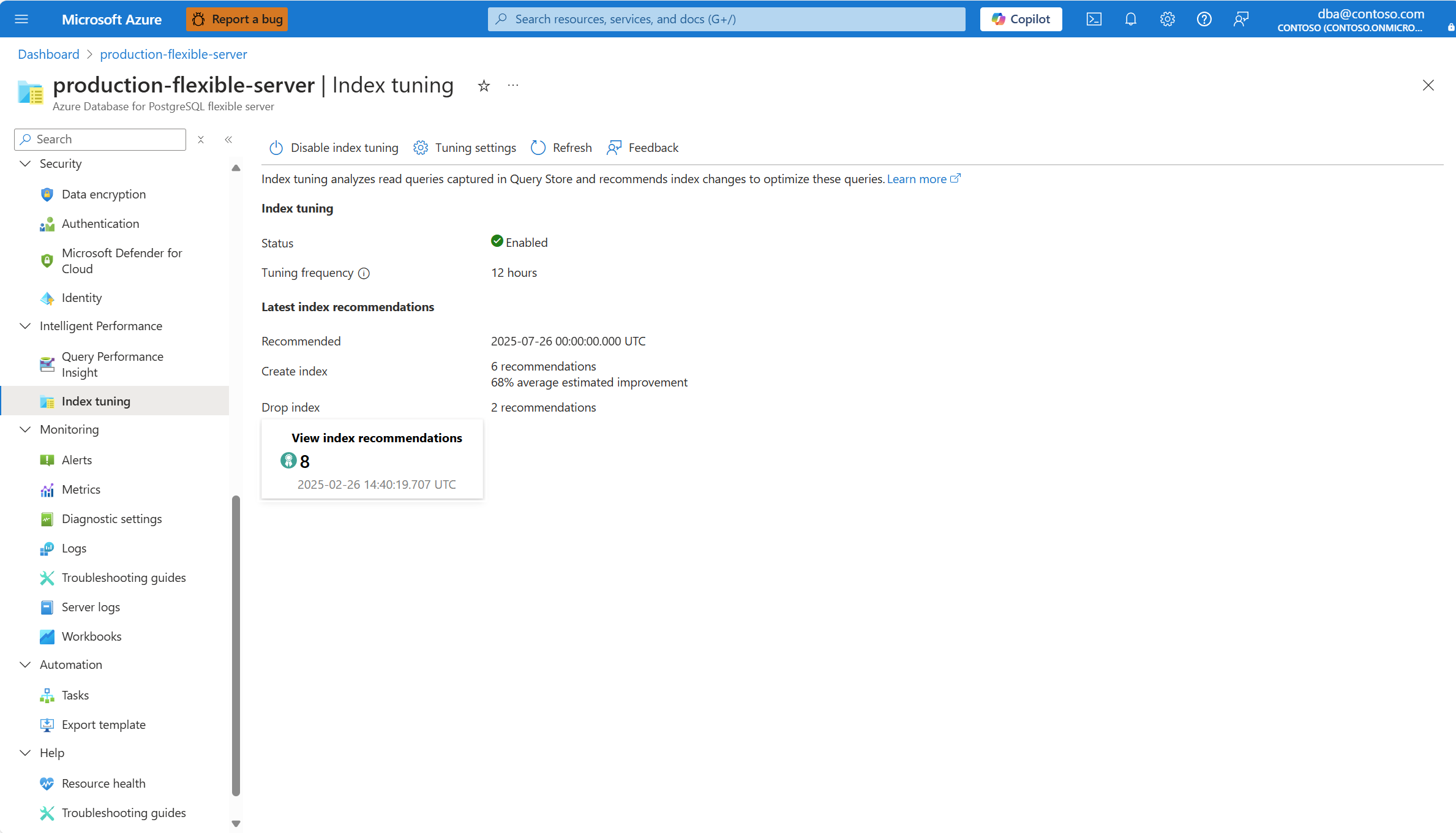

3. If there are recommendations available, select on the View index recommendations summarization to access to the full list:

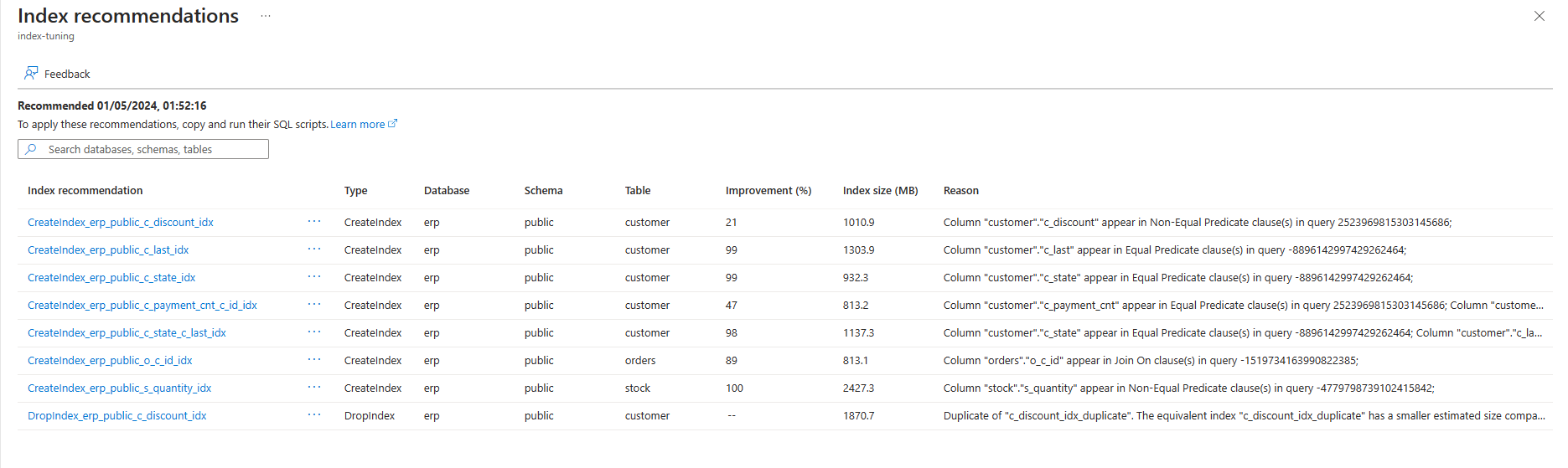

4. The list shows all available recommendations with some details for each of them. By default, the list is sorted by Last recommended in descending order, showing the most recent recommendations at the top. However, you can sort by any other column, and can use the filtering box to reduce the list of items shown. Filtered items are those whose database, schema, or table names contain the text provided:

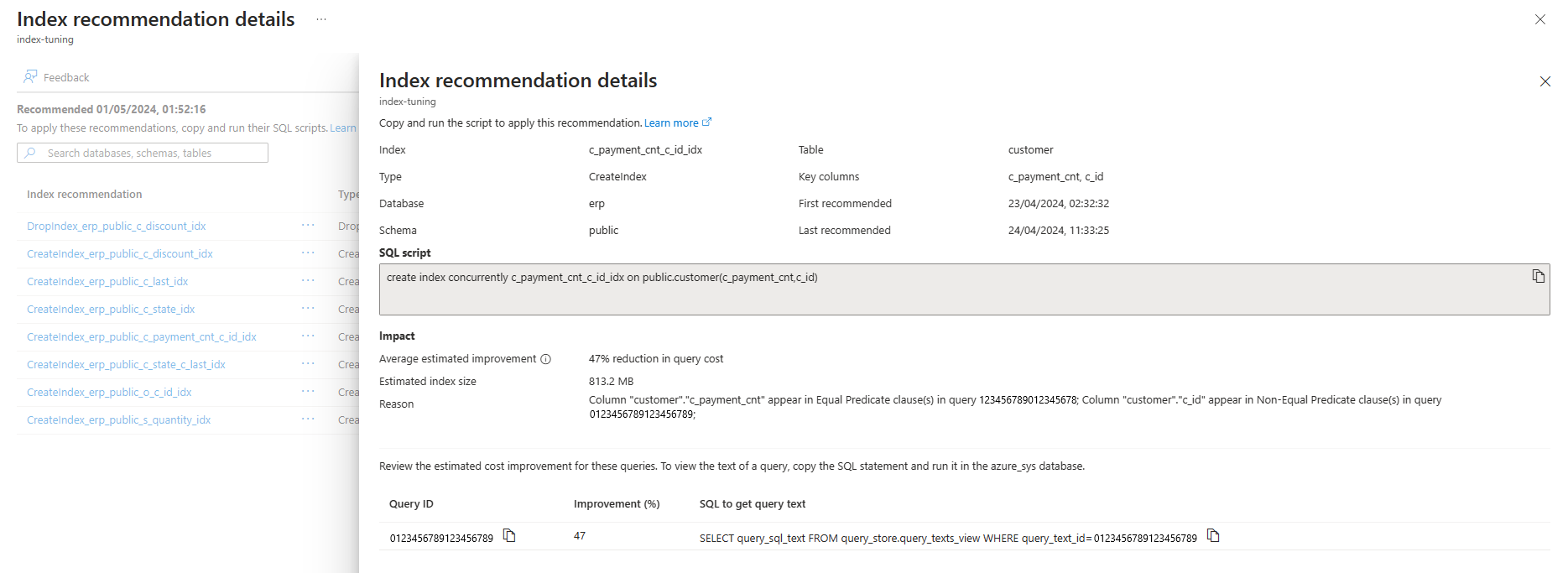

5. To see further information about any specific recommendation, select on the name of that recommendation, and the Index recommendation details pane opens on the right side of the screen to surface all available details about the recommendation:



CLI

You can list index tuning recommendations produced by index tuning in an existing server via the az postgres flexible-server index-tuning list-recommendations command.

To list all CREATE INDEX recommendations, use this command:

az postgres flexible-server index-tuning list-recommendations --resource-group <resource_group> --server-name <server> --recommendation-type createindex

The command returns all information about the CREATE INDEX recommendations produced by index tuning, showing something similar to the following output:

[
  {
    "analyzedWorkload": {
      "endTime": "2025-02-26T14:40:18.788628+00:00",
      "queryCount": 18,
      "startTime": "2025-02-26T13:40:18.788628+00:00"
    },
    "details": {
      "databaseName": "<database>",
      "includedColumns": "",
      "indexColumns": "\"<table>\".\"<column>\"",
      "indexName": "<index>",
      "indexType": "BTREE",
      "schema": "<schema>",
      "table": "<table>"
    },
    "estimatedImpact": [
      {
        "absoluteValue": 0.3984375,
        "dimensionName": "IndexSize",
        "queryId": null,
        "unit": "MB"
      },
      {
        "absoluteValue": 62.86969111969111,
        "dimensionName": "QueryCostImprovement",
        "queryId": -555955670159268890,
        "unit": "Percentage"
      }
    ],
    "id": "/subscriptions/<subscription_id>/resourceGroups/<resource_group>/providers/Microsoft.DBforPostgreSQL/flexibleServers/<server>/tuningOptions/index/recommendations/<recommendation_id>",
    "implementationDetails": {
      "method": "SQL",
      "script": "create index concurrently <index> on <schema>.<table>(<column>)"
    },
    "improvedQueryIds": [
      -555955670159268890
    ],
    "initialRecommendedTime": "2025-02-26T14:40:19.707617+00:00",
    "kind": "",
    "lastRecommendedTime": "2025-02-26T14:40:19.707617+00:00",
    "name": "CreateIndex_<database>_<schema>_<column>_idx",
    "recommendationReason": "Column \"<table>\".\"<column>\" appear in Equal Predicate clause(s) in query -555955670159268890;",
    "recommendationType": "CreateIndex",
    "resourceGroup": "<resource_group>",
    "systemData": null,
    "timesRecommended": 1,
    "type": "Microsoft.DBforPostgreSQL/flexibleServers/tuningOptions/index"
  },
  {
    .
    .
    .
  }
]

To list all DROP INDEX recommendations, use this command:

az postgres flexible-server index-tuning list-recommendations --resource-group <resource_group> --server-name <server> --recommendation-type dropindex

The command returns all information about the DROP INDEX recommendations produced by index tuning, showing something similar to the following output:

[
  {
    "analyzedWorkload": {
      "endTime": "2025-02-26T19:02:47.522193+00:00",
      "queryCount": 0,
      "startTime": "2025-01-22T19:02:47.522193+00:00"
    },
    "details": {
      "databaseName": "<database>",
      "includedColumns": "",
      "indexColumns": "<column>",
      "indexName": "<index>",
      "indexType": "BTREE",
      "schema": "<schema>",
      "table": "<table>"
    },
    "estimatedImpact": [
      {
        "absoluteValue": 35.0,
        "dimensionName": "Benefit",
        "queryId": null,
        "unit": "Percentage"
      },
      {
        "absoluteValue": 31.28125,
        "dimensionName": "IndexSize",
        "queryId": null,
        "unit": "MB"
      }
    ],
    "id": "/subscriptions/<subscription_id>/resourceGroups/<resource_group>/providers/Microsoft.DBforPostgreSQL/flexibleServers/<server>/tuningOptions/index/recommendations/<recommendation_id>",
    "implementationDetails": {
      "method": "SQL",
      "script": "drop index concurrently \"<schema>\".\"<index>\";"
    },
    "improvedQueryIds": null,
    "initialRecommendedTime": "2025-02-26T19:02:47.556792+00:00",
    "kind": "",
    "lastRecommendedTime": "2025-02-26T19:02:47.556792+00:00",
    "name": "DropIndex_<database>_<sechema>_<index>",
    "recommendationReason": "Duplicate of \"<index>\". The equivalent index \"<index>\" has a shorter length compared to \"<index>\".",
    "recommendationType": "DropIndex",
    "resourceGroup": "<resource_group>",
    "systemData": null,
    "timesRecommended": 1,
    "type": "Microsoft.DBforPostgreSQL/flexibleServers/tuningOptions/index"
  }
]

azure_sys

Using any PostgreSQL client tool of your preference:

1. Connect to the azure_sys database available in your server with any role that has permission to connect to the instance. Members of the public role can read from these views.

2. Execute queries on the sessions view to retrieve the details about recommendation sessions.

3. Execute queries on the recommendations view to retrieve the recommendations produced by index tuning for CREATE INDEX and DROP INDEX.

Views

Views in the azure_sys database provide a convenient way to access and retrieve index recommendations generated by index tuning. Specifically, the createindexrecommendations and dropindexrecommendations views contain detailed information about CREATE INDEX and DROP INDEX recommendations, respectively. These views expose data such as the session ID, database name, advisor type, start and stop times of the tuning session, recommendation ID, recommendation type, reason for the recommendation, and other relevant details. Users can query these views, to easily access and analyze the index recommendations produced by index tuning.

intelligentperformance.sessions

The sessions view exposes all the details for all index tuning sessions.

column name	data type	Description
session_id	uuid	Globally Unique Identifier assigned to every new tuning session that is initiated.
database_name	varchar(64)	Name of the database in whose context the index tuning session was executed.
session_type	intelligentperformance.recommendation_type	Indicates the types of recommendations this index tuning session could produce. Possible values are: CreateIndex, DropIndex. Sessions of CreateIndex type can produce recommendations of CreateIndex type. Sessions of DropIndex type can produce recommendations of DropIndex or ReIndex types.
run_type	intelligentperformance.recommendation_run_type	Indicates the way in which this session was initiated. Possible values are: Scheduled. Sessions automatically executed as per the value of index_tuning.analysis_interval, are assigned a run type of Scheduled.
state	intelligentperformance.recommendation_state	Indicates the current state of the session. Possible values are: Error, Success, InProgress. Sessions whose execution failed are set as Error. Sessions that completed their execution correctly, whether or not they generated recommendations, are set as Success. Sessions which are still executing are set as InProgress.
start_time	timestamp without timezone	Timestamp at which the tuning session that produced this recommendation was started.
stop_time	timestamp without timezone	Timestamp at which the tuning session that produced this recommendation was started. NULL if the session is in progress or was aborted due to some failure.
recommendations_count	integer	Total number of recommendations produced in this session.

intelligentperformance.recommendations

The recommendations view exposes all the details for all recommendations generated on any tuning session whose data is still available in the underlying tables.

column name	data type	Description
recommendation_id	integer	Number that uniquely identifies a recommendation in the whole server.
last_known_session_id	uuid	Every index tuning session is assigned a Globally Unique Identifier. The value in this column represents that of the session which most recently produced this recommendation.
database_name	varchar(64)	Name of the database in whose context was produced the recommendation.
recommendation_type	intelligentperformance.recommendation_type	Indicates the type of the recommendation produced. Possible values are: CreateIndex, DropIndex, ReIndex.
initial_recommended_time	timestamp without timezone	Timestamp at which the tuning session that produced this recommendation was started.
last_recommended_time	timestamp without timezone	Timestamp at which the tuning session that produced this recommendation was started.
times_recommended	integer	Timestamp at which the tuning session that produced this recommendation was started.
reason	text	Reason justifying why this recommendation was produced.
recommendation_context	json	Contains the list of query identifiers for the queries affected by the recommendation, the type of index being recommended, the name of the schema and the name of the table on which the index is being recommended, the index columns, the index name, and the estimated size in bytes of the recommended index.

Reasons for create index recommendations

When index tuning recommends the creation of an index, it does add at least one of the following reasons:

Reason
Column <column> appear in Join On clause(s) in query <queryId>
Column <column> appear in Equal Predicate clause(s) in query <queryId>
Column <column> appear in Non-Equal Predicate clause(s) in query <queryId>
Column <column> appear in Group By clause(s) in query <queryId>
Column <column> appear in Order By clause(s) in query <queryId>

Reasons for drop index recommendations

When index tuning identifies any indexes which are marked as invalid, it proposes to drop it with the following reason:

The index is invalid and the recommended recovery method is to reindex.

To learn more about why and when indexes are marked as invalid, refer to the REINDEX in PostgreSQL official documentation.

Reasons for drop index recommendations

When index tuning detects an index which is unused for, at least, the number of days set in index_tuning.unused_min_period, it proposes to drop it with the following reason:

The index is unused in the past <days_unused> days.

When index tuning detects duplicate indexes, one of the duplicates survives, and it proposes to drop the remaining. The reason provided always has the following starting text:

Duplicate of <surviving_duplicate>.

Followed by another text which explains the reason why each of the duplicates has been chosen for drop:

Reason
The equivalent index "<surviving_duplicate>" is a Primary key, while "<droppable_duplicate>" is not.
The equivalent index "<surviving_duplicate>" is a unique index, while "<droppable_duplicate>" is not.
The equivalent index "<surviving_duplicate>" is a constraint, while "<droppable_duplicate>" is not.
The equivalent index "<surviving_duplicate>" is a valid index, while "<droppable_duplicate>" is not.
The equivalent index "<surviving_duplicate>" has been chosen as replica identity, while "<droppable_duplicate>" is not.
The equivalent index "<surviving_duplicate>" was used to cluster the table, while "<droppable_duplicate>" was not.
The equivalent index "<surviving_duplicate>" has a smaller estimated size compared to "<droppable_duplicate>".
The equivalent index "<surviving_duplicate>" has more tuples compared to "<droppable_duplicate>".
The equivalent index "<surviving_duplicate>" has more index scans compared to "<droppable_duplicate>".
The equivalent index "<surviving_duplicate>" has been fetched more times compared to "<droppable_duplicate>".
The equivalent index "<surviving_duplicate>" has been read more times compared to "<droppable_duplicate>".
The equivalent index "<surviving_duplicate>" has a shorter length compared to "<droppable_duplicate>".
The equivalent index "<surviving_duplicate>" has a smaller oid compared to "<droppable_duplicate>".

If the index not only is removable due to duplication, but also is unused for, at least, the number of days set in index_tuning.unused_min_period, the following text is appended to the reason:

Also, the index is unused in the past <days_unused> days.

Steps to apply index recommendations

Index recommendations contain the SQL statement that you can execute to implement the recommendation.

The following section demonstrates how this statement can be obtained for a particular recommendation.

Once you have the statement, you can use any PostgreSQL client of your preference to connect to your server and apply the recommendation.

Portal

Using the Azure portal:

1. Select your Azure Database for PostgreSQL flexible server.

2. In the resource menu, under Intelligent Performance, select Index tuning.



3. Assuming index tuning produced recommendations, select the View index recommendations summarization to access the list of available recommendations.



4. From the list of recommendations, either:

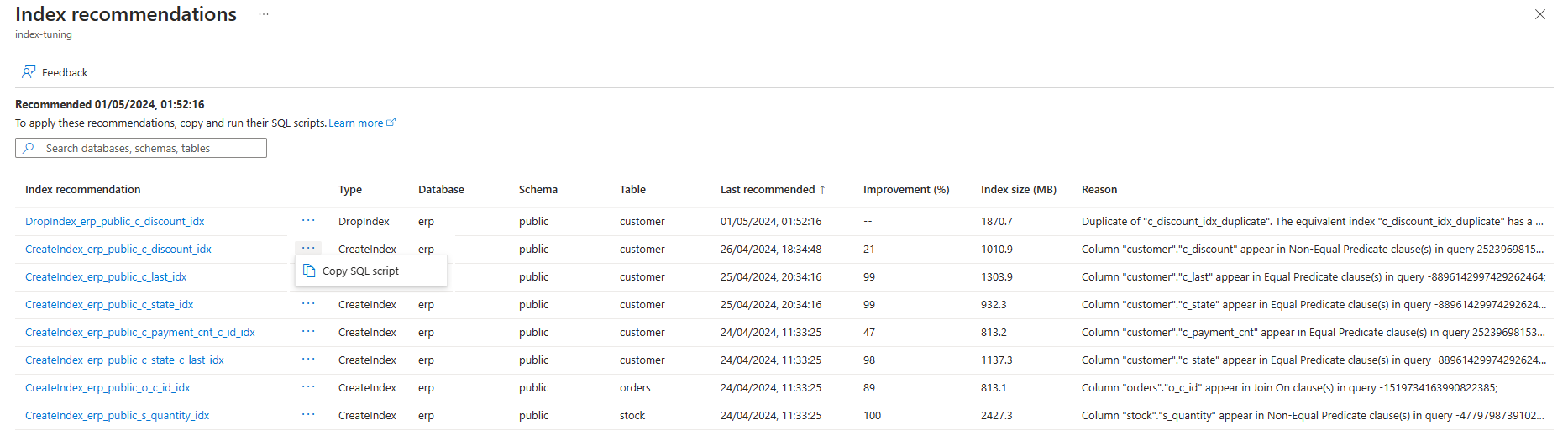

   • Select the ellipsis to the right of the recommendation for which you want to obtain the SQL statement, and select Copy SQL script.



   • Or select the name of the recommendation to show its Index recommendation details, and select the copy to clipboard icon in the SQL script text box to copy the SQL statement.



CLI

You can list index tuning recommendations produced by index tuning in an existing server via the az postgres flexible-server index-tuning list-recommendations command.

To list all CREATE INDEX recommendations, use this command:

az postgres flexible-server index-tuning list-recommendations --resource-group <resource_group> --server-name <server> --query [].implementationDetails.script

The command returns all the statements that must be run to implement all produced recommendations, showing something similar to the following output:

[
  "create index concurrently <column>_idx on <schema>.<table>(<column>)",
  "drop index concurrently \"<schema>\".\"<index>\";"
]
