Data security and encryption in Azure Data Manager for Energy

  • Article

This article provides an overview of security features in Azure Data Manager for Energy. It covers the major areas of encryption at rest, encryption in transit, Transport Layer Security (TLS), https, microsoft-managed keys, and customer managed key.

Encrypt data at rest

Azure Data Manager for Energy uses several storage resources for storing metadata, user data, in-memory data, etc. The platform uses service-side encryption to automatically encrypt and persist data in the cloud. Data encryption at rest protects your data to help you to meet your organizational security and compliance commitments. All data in Azure Data Manager for Energy is encrypted with Microsoft-managed keys by default. In addition to Microsoft-managed key, you can use your own encryption key stored in Azure Key Vault or Azure Key Vault Managed Hardware Security Module (HSM) to protect the data in Azure Data Manager for Energy. When you specify a customer-managed key, that key is used to protect and control access to the Microsoft-managed key that encrypts your data.

Encrypt data in transit

Azure Data Manager for Energy supports Transport Layer Security (TLS 1.2) protocol to protect data when it’s traveling between the cloud services and customers. TLS provides strong authentication, message privacy, and integrity (enabling detection of message tampering, interception, and forgery), interoperability, and algorithm flexibility.

In addition to TLS, when you interact with Azure Data Manager for Energy, all transactions take place over HTTPS.

Set up Customer Managed Keys (CMK) for Azure Data Manager for Energy instance

Important

You can't edit CMK settings once the Azure Data Manager for Energy instance is created.

Prerequisites

Step 1: Configure the key vault

  1. You can use a new or existing key vault to store customer-managed keys. To learn more about Azure Key Vault, see Azure Key Vault Overview and What is Azure Key Vault?

  2. Using customer-managed keys with Azure Data Manager for Energy requires that both soft delete and purge protection are enabled for the key vault. Soft delete is enabled by default when you create a new key vault and can't be disabled. You can enable purge protection when you create the key vault or afterwards.

  3. To learn how to create a key vault with the Azure portal, see Quickstart: Create a key vault using the Azure portal. When you create the key vault, select Enable purge protection.

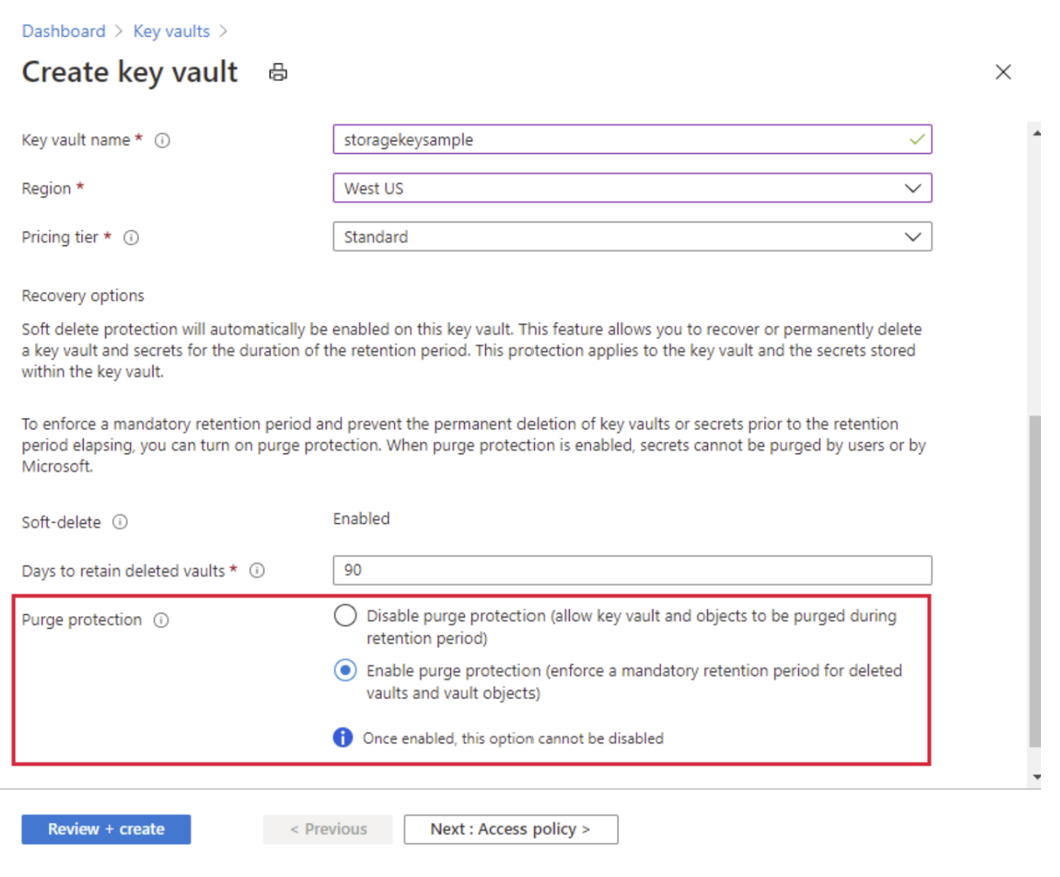

    Screenshot of enabling purge protection and soft delete while creating key vault

  4. To enable purge protection on an existing key vault, follow these steps:

    1. Navigate to your key vault in the Azure portal.
    2. Under Settings, choose Properties.
    3. In the purge protection section, choose Enable purge protection.

Step 2: Add a key

  1. To learn how to add a key with the Azure portal, see Quickstart: Set and retrieve a key from Azure Key Vault using the Azure portal.
  2. The RSA key size is recommended to be 3072, see Configure customer-managed keys for your Azure Cosmos DB account | Microsoft Learn.

Step 3: Choose a managed identity to authorize access to the key vault

  1. When you enable customer-managed keys for an existing Azure Data Manager for Energy instance, you must specify a managed identity that is used to authorize access to the key vault that contains the key. The managed identity must have permissions to access the key in the key vault.
  2. You can create a user-assigned managed identity.

Configure customer-managed keys for an existing account

  1. Create a Azure Data Manager for Energy instance.

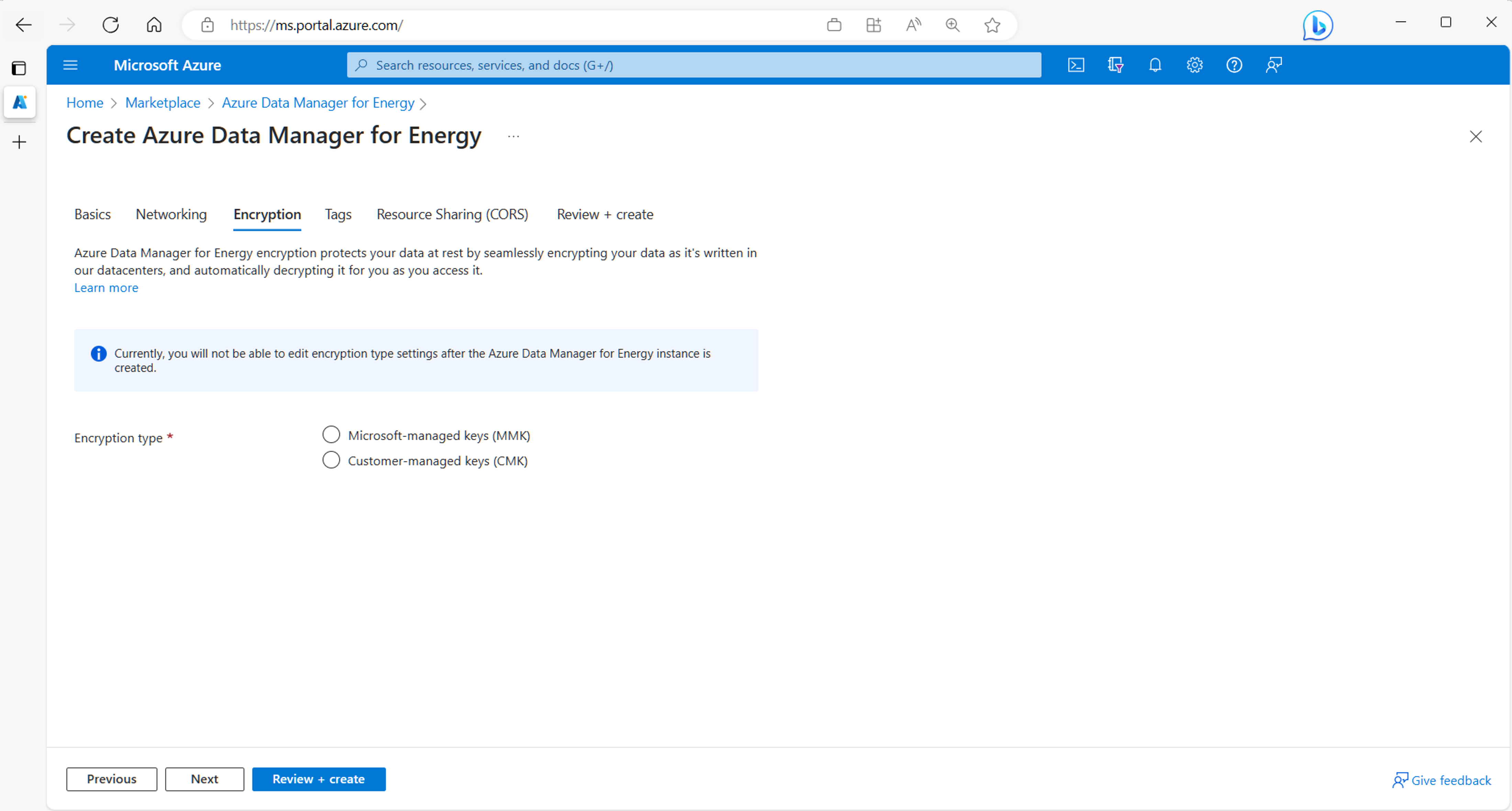

  2. Select the Encryption tab. Screenshot of Encryption tab while creating Azure Data Manager for Energy.

  3. In the encryption tab, select Customer-managed keys (CMK).

  4. For using CMK, you need to select the key vault where the key is stored.

  5. Select Encryption key as "Select a key vault and key"

  6. Then, select "Select a key vault and key"

  7. Next, select the key vault and key.

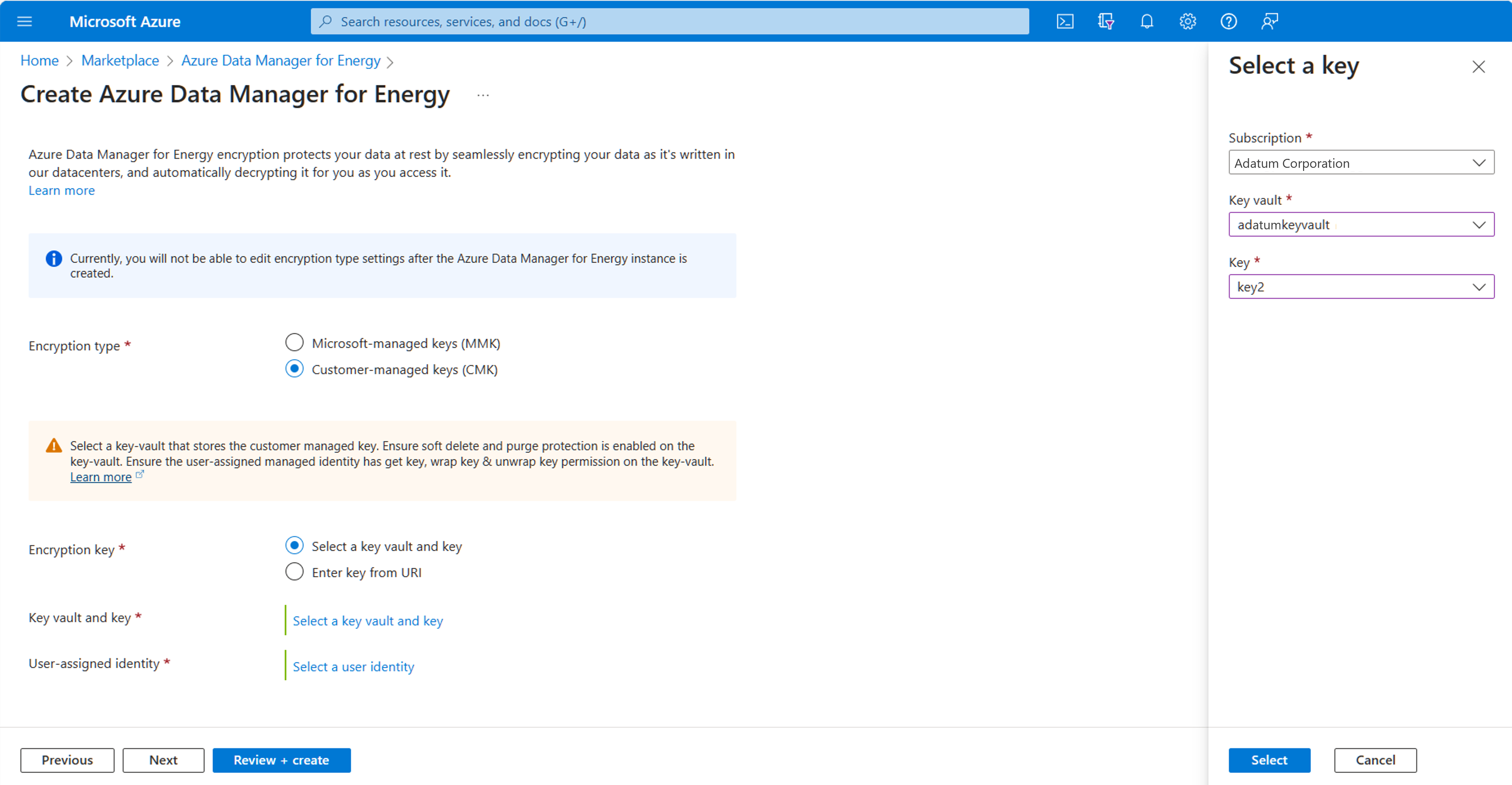

    Screenshot showing selection of subscription, key vault, and key in the right pane that opens after choosing 'select a key vault and key'

  8. Next, select the user-assigned managed identity that is used to authorize access to the key vault that contains the key.

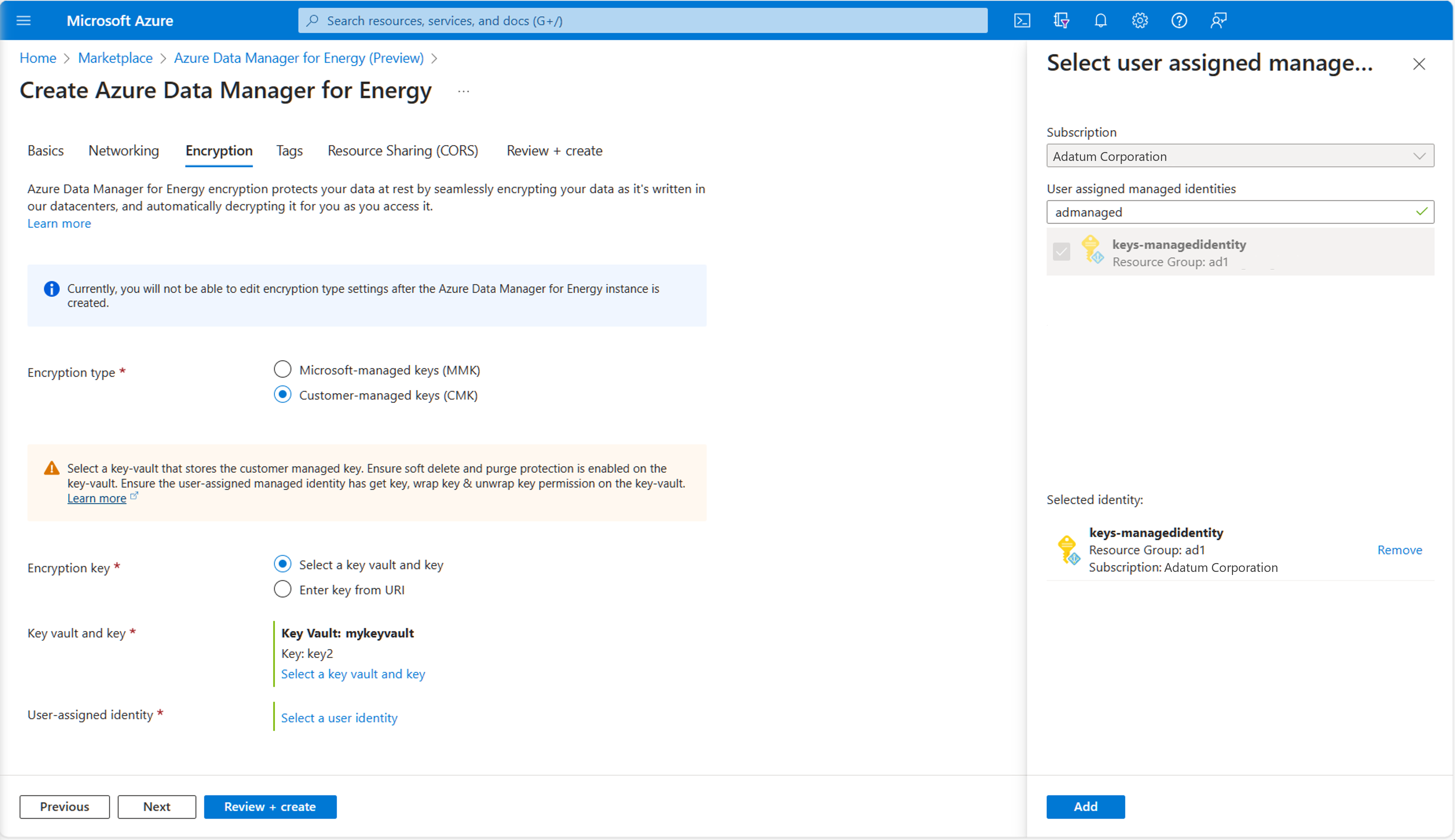

  9. Select "Select a user identity" Select the user-assigned managed identity that you created in the prerequisites. Screenshot of key vault, key, user assigned identity, and CMK on encryption tab.

  10. This user assigned identity must have get key, list key, wrap key, and unwrap key permissions on the key vault. For more information on assigning Azure Key Vault access policies, see Assign a Key Vault Access Policy.

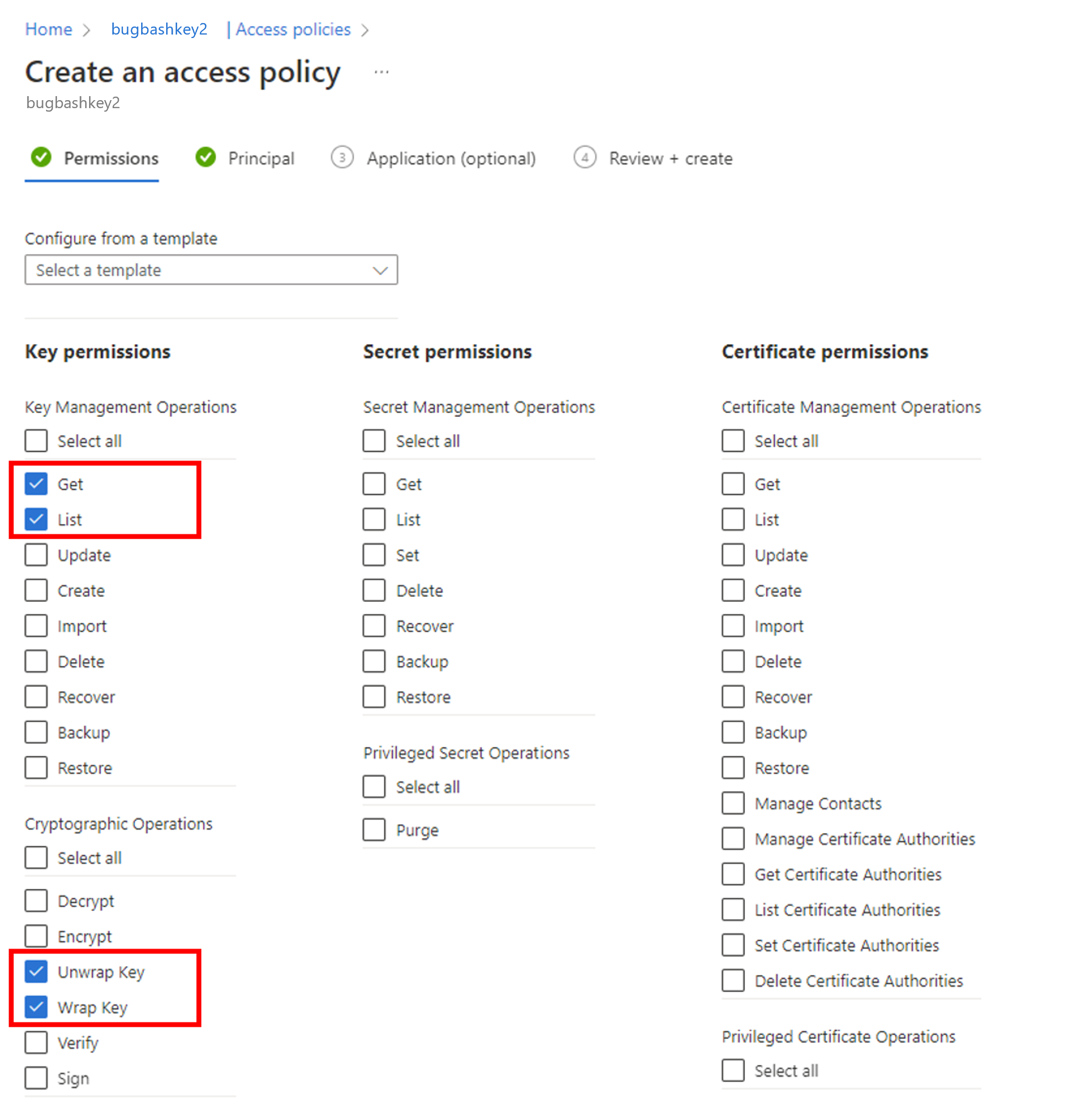

    Screenshot of get, list, wrap, and upwrap key access policy

  11. You can also select Encryption Key as "Enter key from Uri" and enter the "Key URI" in the format https://<your-key-vault-name>.vault.azure.net/keys/<your-key-name> or https://<your-hsm-key-vault-name>.managedhsm.azure.net/keys/<your-managed-hsm-key-name>. It's mandatory for the Key to have soft delete and purge protection to be enabled. You have to confirm that by checking the box as shown.

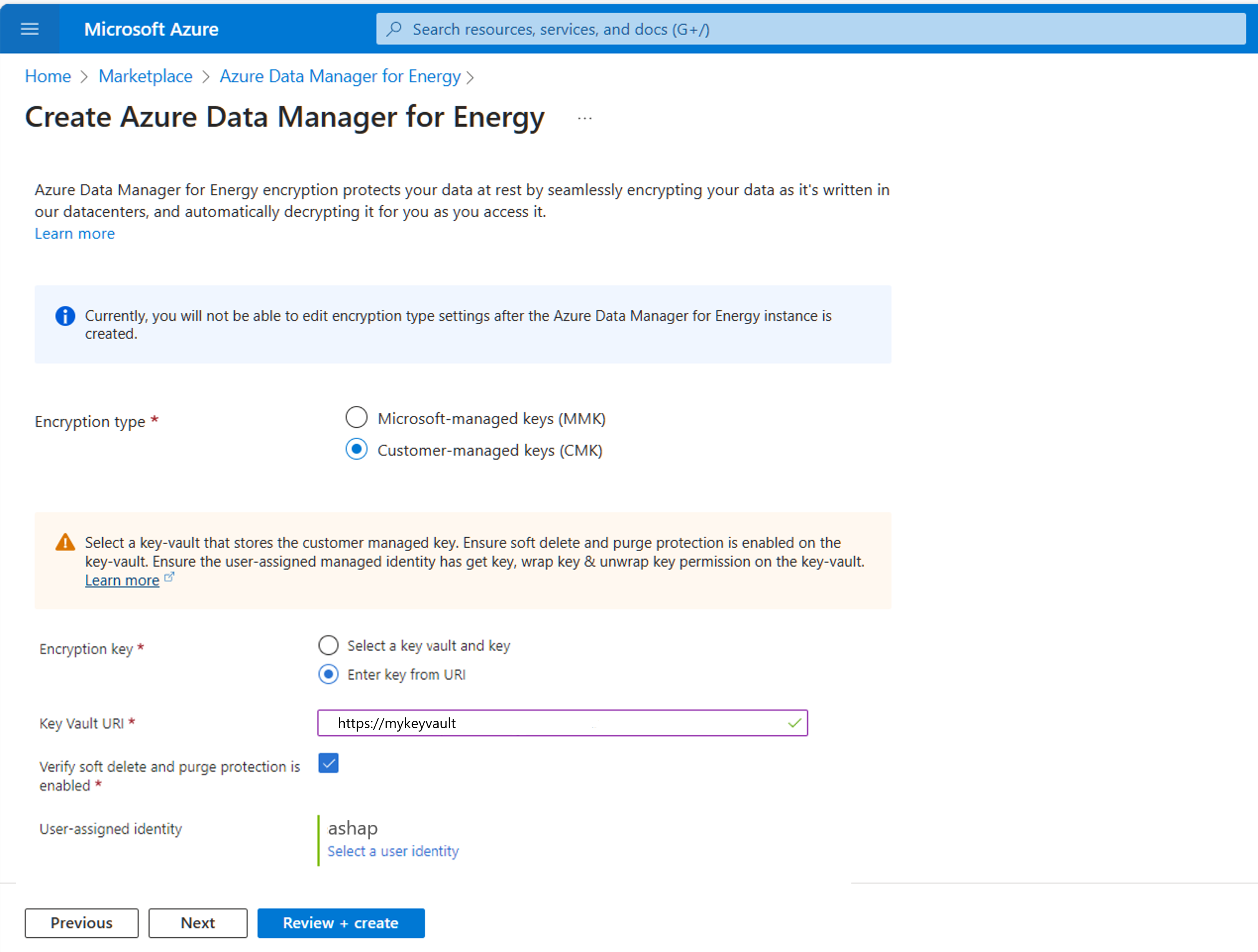

    Screenshot of key vault uri for encryption

  12. Next, select "Review+Create" after completing other tabs.

  13. Select the "Create" button.

  14. An Azure Data Manager for Energy instance is created with customer-managed keys.

  15. Once CMK is enabled, you see its status on the Overview screen.

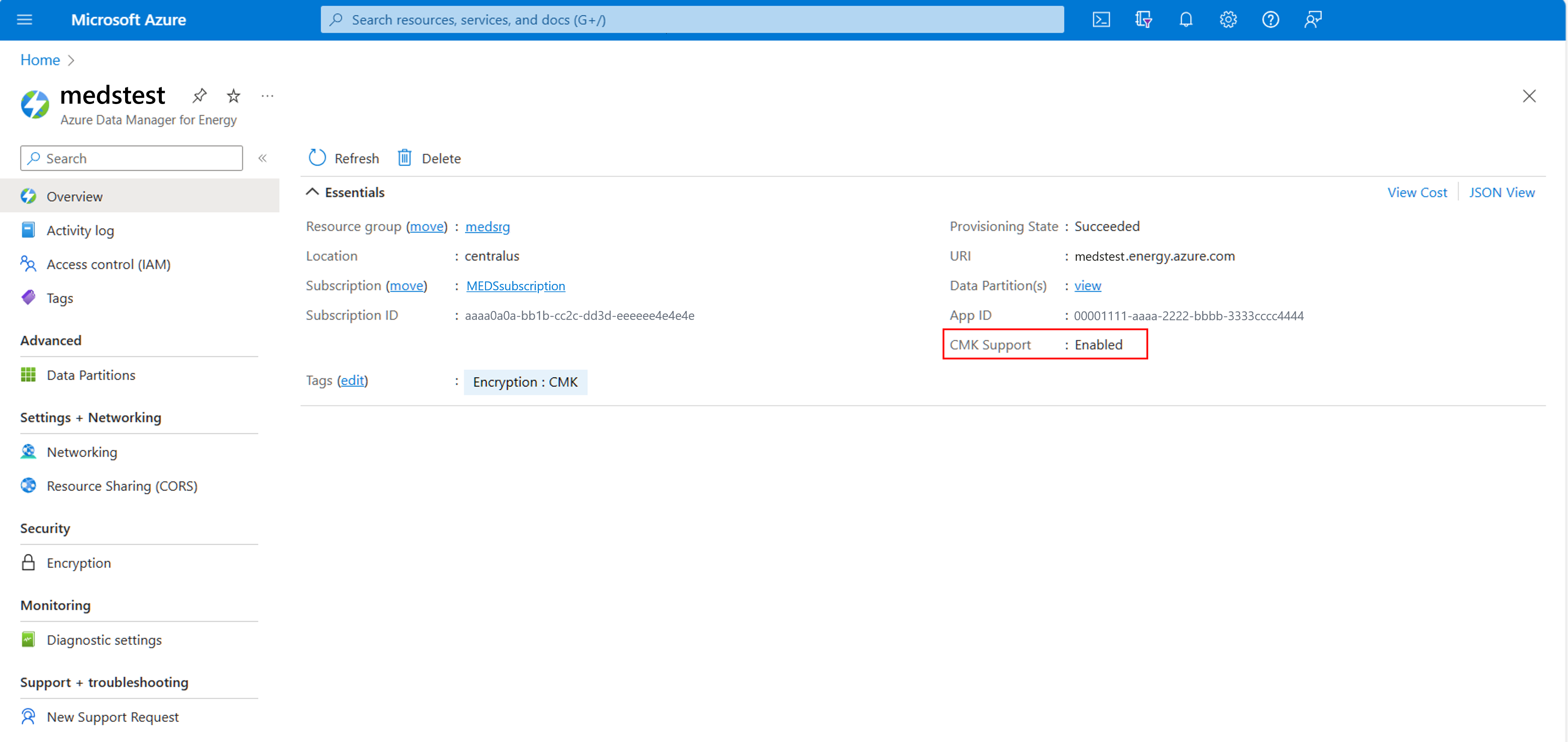

    Screenshot of CMK enabled on Azure Data Manager for Energy overview page.

  16. You can navigate to Encryption and see that CMK enabled with user managed identity.

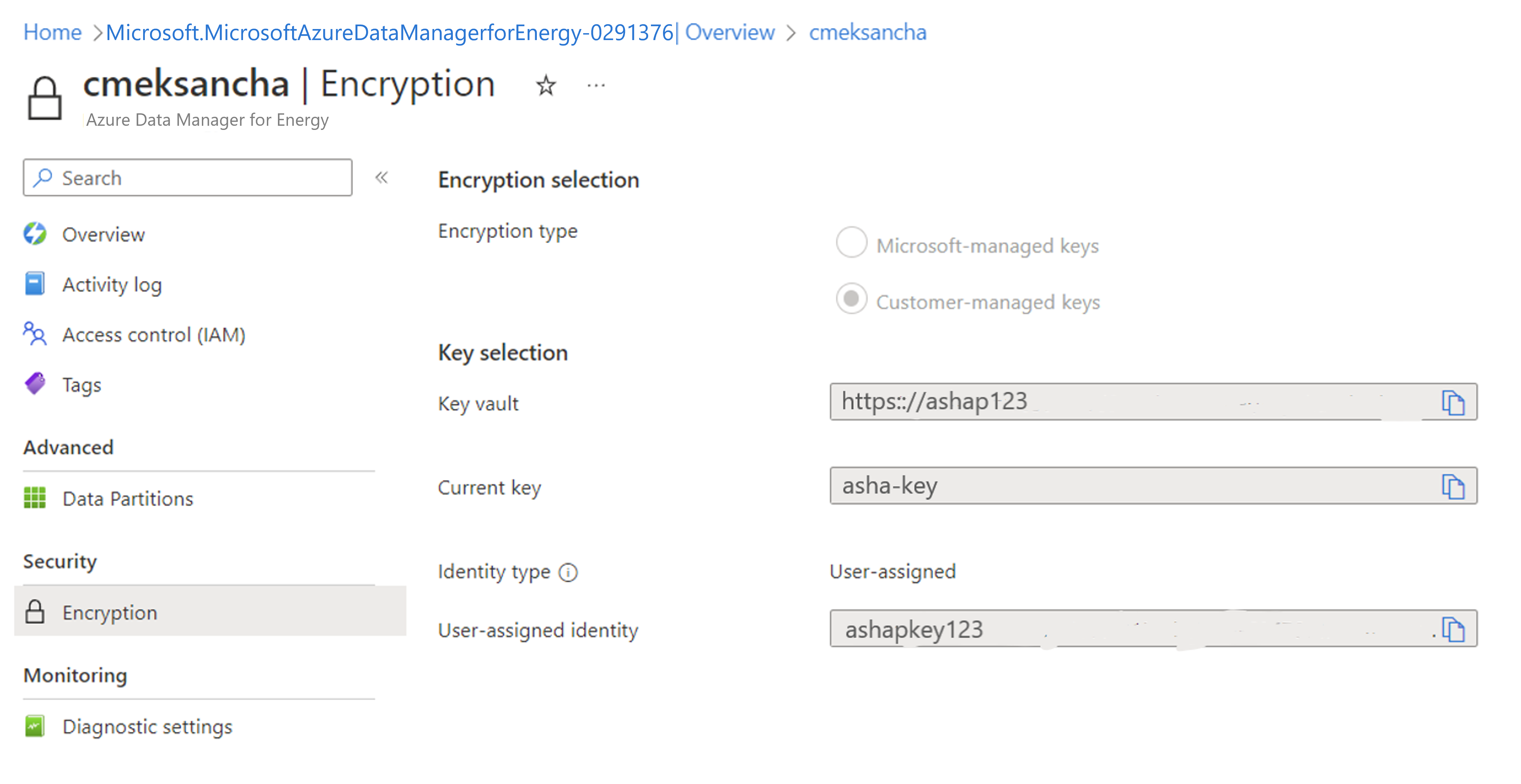

    Screenshot of CMK settings disabled once Azure Data Manager for Energy instance is installed.

Next steps

To learn more about Private Links.

How to set up private links
