Verify ExpressRoute connectivity

  • Article

This article helps you verify and troubleshoot Azure ExpressRoute connectivity. ExpressRoute extends an on-premises network into the Microsoft Cloud over a private connection facilitated by a connectivity provider. ExpressRoute connectivity involves three distinct network zones:

  • Customer network
  • Provider network
  • Microsoft datacenter

Note

In the ExpressRoute Direct connectivity model, you can directly connect to the port for Microsoft Enterprise Edge (MSEE) routers. This model includes only your network and the Microsoft network zones.

This article helps you identify connectivity issues and seek support from the appropriate team to resolve them.

Important

This article is intended to help you diagnose and fix simple issues. It's not a replacement for Microsoft support. If you can't solve a problem using this guidance, open a support ticket with Microsoft Support.

Overview

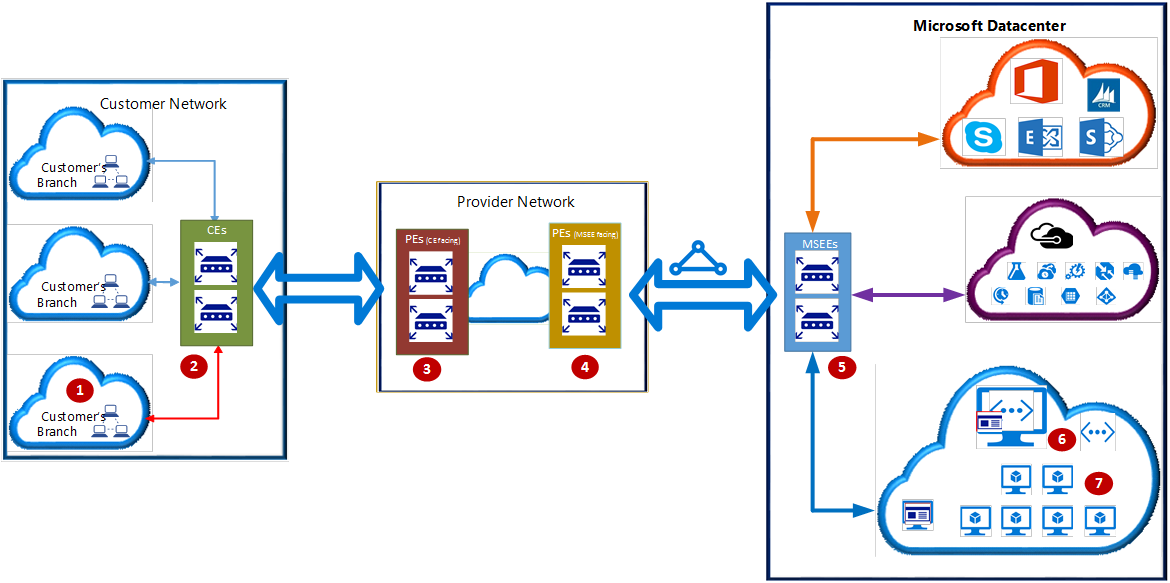

The following diagram shows the logical connectivity of a customer network to the Microsoft network through ExpressRoute. 1

In the diagram, the numbers indicate key network points:

  1. Customer compute device (for example, a server or PC).
  2. Customer edge routers (CEs).
  3. Provider edge routers/switches (PEs) facing customer edge routers.
  4. PEs facing Microsoft Enterprise Edge ExpressRoute routers (MSEEs), called PE-MSEEs.
  5. MSEEs.
  6. Virtual network gateway.
  7. Compute device on the Azure virtual network.

These network points are referenced by their associated number throughout the article.

Depending on the ExpressRoute connectivity model, network points 3 and 4 might be switches (layer 2 devices) or routers (layer 3 devices). The connectivity models are cloud exchange colocation, point-to-point Ethernet connection, or any-to-any (IPVPN).

In the direct connectivity model, there are no network points 3 and 4. Instead, CEs (2) are directly connected to MSEEs via dark fiber.

If the cloud exchange colocation, point-to-point Ethernet, or direct connectivity model is used, CEs (2) establish Border Gateway Protocol (BGP) peering with MSEEs (5).

If the any-to-any (IPVPN) connectivity model is used, PE-MSEEs (4) establish BGP peering with MSEEs (5). PE-MSEEs propagate the routes received from Microsoft back to the customer network via the IPVPN service provider network.

Note

For high availability, Microsoft establishes fully redundant parallel connectivity between MSEE and PE-MSEE pairs. A fully redundant parallel network path is also encouraged between the customer network and PE/CE pairs. For more information about high availability, see Designing for high availability with ExpressRoute.

The following sections represent the logical steps in troubleshooting an ExpressRoute circuit.

Verify circuit provisioning and state

Provisioning an ExpressRoute circuit establishes a redundant layer 2 connection between CEs/PE-MSEEs (2/4) and MSEEs (5). For more information on how to create, modify, provision, and verify an ExpressRoute circuit, see Create and modify an ExpressRoute circuit.

Tip

A service key uniquely identifies an ExpressRoute circuit. If you need assistance from Microsoft or an ExpressRoute partner to troubleshoot an issue, provide the service key to readily identify the circuit.

Verification via the Azure portal

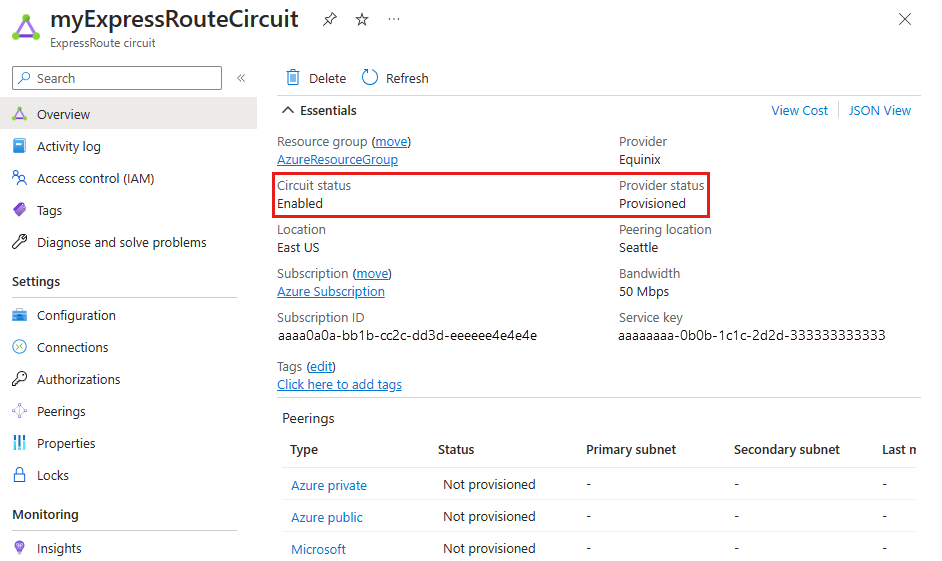

In the Azure portal, navigate to the page for your ExpressRoute circuit. The 3 section of the page lists the ExpressRoute essentials, as shown in the following screenshot:

4

In the ExpressRoute essentials, Circuit status indicates the status of the circuit on the Microsoft side, and Provider status indicates whether the circuit has been provisioned by the service provider.

For an ExpressRoute circuit to be operational, Circuit status must be Enabled, and Provider status must be Provisioned.

Note

If Circuit status is stuck in Not enabled, contact Microsoft Support. If Provider status is stuck in Not provisioned, contact your service provider.

Verification via PowerShell

To list all ExpressRoute circuits in a resource group, use the following command:

Get-AzExpressRouteCircuit -ResourceGroupName "Test-ER-RG"

Tip

To find the name of a resource group, use the Get-AzResourceGroup command to list all resource groups in your subscription.

To get details of a specific ExpressRoute circuit in a resource group, use the following command:

Get-AzExpressRouteCircuit -ResourceGroupName "Test-ER-RG" -Name "Test-ER-Ckt"

Here's an example response:

Name                             : Test-ER-Ckt
ResourceGroupName                : Test-ER-RG
Location                         : westus2
Id                               : /subscriptions/***************************/resourceGroups/Test-ER-RG/providers/***********/expressRouteCircuits/Test-ER-Ckt
Etag                             : W/"################################"
ProvisioningState                : Succeeded
Sku                              : {
                                    "Name": "Standard_UnlimitedData",
                                    "Tier": "Standard",
                                    "Family": "UnlimitedData"
                                   }
CircuitProvisioningState         : Enabled
ServiceProviderProvisioningState : Provisioned
ServiceProviderNotes             :
ServiceProviderProperties        : {
                                    "ServiceProviderName": "****",
                                    "PeeringLocation": "******",
                                    "BandwidthInMbps": 100
                                   }
ServiceKey                       : **************************************
Peerings                         : []
Authorizations                   : []

To confirm that an ExpressRoute circuit is operational, ensure the following fields are set correctly:

CircuitProvisioningState         : Enabled
ServiceProviderProvisioningState : Provisioned

Note

If Circuit status is stuck in Not enabled, contact Microsoft Support. If Provider status is stuck in Not provisioned, contact your service provider.

Validate peering configuration

After the service provider has provisioned the ExpressRoute circuit, you can create multiple routing configurations using external BGP (eBGP) over the circuit between CEs/MSEE-PEs (2/4) and MSEEs (5). Each ExpressRoute circuit can have one or both of the following peering configurations:

  • Azure private peering: for traffic to private virtual networks in Azure
  • Microsoft peering: for traffic to public endpoints of platform as a service (PaaS) and software as a service (SaaS)

For more information on creating and modifying routing configurations, see Create and modify routing for an ExpressRoute circuit.

Verification via the Azure portal

Note

In an IPVPN connectivity model, service providers handle the responsibility of configuring the peerings (layer 3 services). If the peering is blank in the portal after the service provider has configured it, try refreshing the circuit configuration using the refresh button on the portal. This operation will pull the current routing configuration from your circuit.

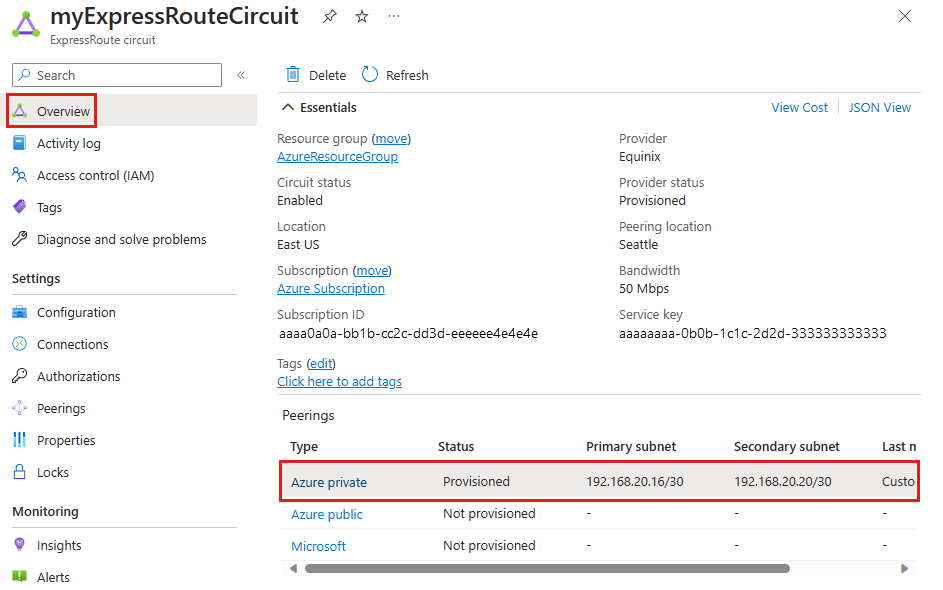

In the Azure portal, you can check the status of an ExpressRoute circuit on its page. The 3 section lists the ExpressRoute peerings, as shown in the following screenshot:

5

In the previous example, Azure private peering is provisioned, but Azure public and Microsoft peerings aren't. A successfully provisioned peering context will also list the primary and secondary point-to-point subnets. The /30 subnets are used for the interface IP addresses of the MSEEs and CEs/PE-MSEEs. The listing also indicates who last modified the configuration.

Note

If enabling a peering fails, check if the assigned primary and secondary subnets match the configuration on the linked CE/PE-MSEE. Also, verify that the VlanId, AzureASN, and PeerASN values on the MSEEs match those on the linked CE/PE-MSEE.

If MD5 hashing is chosen, ensure the shared key is the same on both MSEE and CE/PE-MSEE pairs. Previously configured shared keys won't be displayed for security reasons.

If you need to change any of these configurations on an MSEE router, see Create and modify routing for an ExpressRoute circuit.

Note

On a /30 subnet assigned for the interface, Microsoft will use the second usable IP address for the MSEE interface. Ensure the first usable IP address is assigned to the peered CE/PE-MSEE.

Verification via PowerShell

To get the configuration details for Azure private peering, use the following commands:

$ckt = Get-AzExpressRouteCircuit -ResourceGroupName "Test-ER-RG" -Name "Test-ER-Ckt"
Get-AzExpressRouteCircuitPeeringConfig -Name "AzurePrivatePeering" -ExpressRouteCircuit $ckt

Here's an example response for a successfully configured private peering:

Name                       : AzurePrivatePeering
Id                         : /subscriptions/***************************/resourceGroups/Test-ER-RG/providers/***********/expressRouteCircuits/Test-ER-Ckt/peerings/AzurePrivatePeering
Etag                       : W/"################################"
PeeringType                : AzurePrivatePeering
AzureASN                   : 12076
PeerASN                    : 123##
PrimaryPeerAddressPrefix   : 172.16.0.0/30
SecondaryPeerAddressPrefix : 172.16.0.4/30
PrimaryAzurePort           :
SecondaryAzurePort         :
SharedKey                  :
VlanId                     : 200
MicrosoftPeeringConfig     : null
ProvisioningState          : Succeeded

A successfully enabled peering context lists the primary and secondary address prefixes. The /30 subnets are used for the interface IP addresses of the MSEEs and CEs/PE-MSEEs.

To get the configuration details for Microsoft peering, use the following commands:

$ckt = Get-AzExpressRouteCircuit -ResourceGroupName "Test-ER-RG" -Name "Test-ER-Ckt"
Get-AzExpressRouteCircuitPeeringConfig -Name "MicrosoftPeering" -ExpressRouteCircuit $ckt

If a peering isn't configured, you get an error message. Here's an example response when the stated peering isn't configured within the circuit:

Get-AzExpressRouteCircuitPeeringConfig : Sequence contains no matching element
At line:1 char:1
    + Get-AzExpressRouteCircuitPeeringConfig -Name "MicrosoftPeering ...
    + ~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
        + CategoryInfo          : CloseError: (:) [Get-AzExpr...itPeeringConfig], InvalidOperationException
        + FullyQualifiedErrorId : Microsoft.Azure.Commands.Network.GetAzureExpressRouteCircuitPeeringConfigCommand

Note

If enabling a peering fails, check if the assigned primary and secondary subnets match the configuration on the linked CE/PE-MSEE. Also, verify that the VlanId, AzureASN, and PeerASN values on the MSEEs match those on the linked CE/PE-MSEE.

If MD5 hashing is chosen, ensure the shared key is the same on both MSEE and CE/PE-MSEE pairs. Previously configured shared keys won't be displayed for security reasons.

If you need to change any of these configurations on an MSEE router, see Create and modify routing for an ExpressRoute circuit.

Note

On a /30 subnet assigned for the interface, Microsoft will use the second usable IP address for the MSEE interface. Ensure the first usable IP address is assigned to the peered CE/PE-MSEE.

Validate ARP

The Address Resolution Protocol (ARP) table provides a mapping of the IP address and MAC address for a particular peering. The ARP table for an ExpressRoute circuit peering provides the following information for each interface (primary and secondary):

  • Mapping of the IP address for the on-premises router interface to the MAC address
  • Mapping of the IP address for the ExpressRoute router interface to the MAC address (optional)
  • Age of the mapping

ARP tables can help validate layer 2 configuration and troubleshoot basic layer 2 connectivity issues.

Note

Depending on the hardware platform, the ARP results may vary and only display the On-premises interface.

To learn how to view the ARP table of an ExpressRoute peering and how to use the information to troubleshoot layer 2 connectivity issues, see Getting ARP tables in the Resource Manager deployment model.

Validate BGP and routes on the MSEE

To retrieve the routing table from the MSEE on the primary path for the private routing context, use the following command:

Get-AzExpressRouteCircuitRouteTable -DevicePath Primary -ExpressRouteCircuitName <CircuitName> -PeeringType AzurePrivatePeering -ResourceGroupName <ResourceGroupName>

Example response:

Network : 10.1.0.0/16
NextHop : 10.17.17.141
LocPrf  :
Weight  : 0
Path    : 65515

Network : 10.1.0.0/16
NextHop : 10.17.17.140*
LocPrf  :
Weight  : 0
Path    : 65515

Network : 10.2.20.0/25
NextHop : 172.16.0.1
LocPrf  :
Weight  : 0
Path    : 123##

Note

If the eBGP peering state between an MSEE and a CE/PE-MSEE is Active or Idle, verify that the primary and secondary peer subnets match the configuration on the linked CE/PE-MSEE. Ensure the VlanId, AzureASN, and PeerASN values are correct on the MSEEs and match those on the linked CE/PE-MSEE. If MD5 hashing is used, the shared key must be the same on both MSEE and CE/PE-MSEE pairs. For configuration changes on an MSEE router, see Create and modify routing for an ExpressRoute circuit.

Note

If certain destinations are unreachable over a peering, check the MSEE route table for the corresponding peering context. If a matching prefix is present, ensure no firewalls, network security groups, or ACLs are blocking the traffic.

Example response for a nonexistent peering:

Get-AzExpressRouteCircuitRouteTable : The BGP Peering AzurePublicPeering with Service Key <ServiceKey> is not found.
StatusCode: 400

Confirm the traffic flow

To get traffic statistics (bytes in and out) for a peering context, use the following command:

Get-AzExpressRouteCircuitStats -ResourceGroupName <ResourceGroupName> -ExpressRouteCircuitName <CircuitName> -PeeringType 'AzurePrivatePeering'

Example output:

PrimaryBytesIn PrimaryBytesOut SecondaryBytesIn SecondaryBytesOut
-------------- --------------- ---------------- -----------------
    240780020       239863857        240565035         239628474

Example output for a nonexistent peering:

Get-AzExpressRouteCircuitRouteTable : The BGP Peering AzurePublicPeering with Service Key <ServiceKey> is not found.
StatusCode: 400

Test private peering connectivity

Test private peering connectivity by counting packets arriving at and leaving the Microsoft edge of your ExpressRoute circuit on the MSEE devices. This diagnostic tool uses an ACL to count packets hitting specific rules, confirming connectivity.

Run a test

  1. In the Azure portal, select Diagnose and solve problems from your ExpressRoute circuit.

    Diagnose and solve problems button.

  2. Select Connectivity & Performance issues.

    Connectivity issues option.

  3. In the Tell us more about the problem you are experiencing dropdown, select Issues with Private peering.

    Tell us more dropdown.

  4. Expand the Test private-peering connectivity section.

    Test private peering option.

  5. Run the PsPing test from your on-premises IP to your Azure IP, and keep it running during the test.

  6. Fill out the form fields with the same IP addresses used in step 5, then select Submit and wait for results.

    Form for debugging an ACL.

Interpret results

Review the results for the primary and secondary MSEE devices:

  • Matches sent and received on both MSEEs: Indicates healthy traffic inbound and outbound. Any loss is downstream from the MSEEs.

  • Received matches but no sent matches: Traffic is reaching Azure but not returning. Check return-path routing issues.

  • Sent matches but no received matches: Traffic is reaching on-premises but not returning to Azure. Work with your provider to resolve.

  • One MSEE shows no matches, the other shows good matches: Indicates one MSEE isn't receiving or passing traffic. It might be offline.

  • If you're testing PsPing from on-premises to Azure, received results show matches, but sent results show no matches: This result indicates that traffic is coming in to Azure but isn't returning to on-premises. Check for return-path routing issues. For example, are you advertising the appropriate prefixes to Azure? Is a user-defined route (UDR) overriding prefixes?

  • If you're testing PsPing from Azure to on-premises, sent results show matches, but received results show no matches: This result indicates that traffic is coming in to on-premises but isn't returning to Azure. Work with your provider to find out why traffic isn't being routed to Azure via your ExpressRoute circuit.

  • One MSEE shows no matches, but the other shows good matches: This result indicates that one MSEE isn't receiving or passing any traffic. It might be offline (for example, BGP/ARP is down).

    • You can run additional testing to confirm the unhealthy path by advertising a unique /32 on-premises route over the BGP session on this path.
    • Run "Test your private peering connectivity" using the unique /32 advertised as the on-premise destination address and review the results to confirm the path health.

Your test results for each MSEE device look like the following example:

src 10.0.0.0 dst 20.0.0.0 dstport 3389 (received): 120 matches
src 20.0.0.0 srcport 3389 dst 10.0.0.0 (sent): 120 matches

Verify availability of the virtual network gateway

The ExpressRoute virtual network gateway manages connectivity to private link services and private IPs in an Azure virtual network. Microsoft manages this infrastructure and might perform maintenance, reducing performance.

To troubleshoot connectivity issues and check for recent maintenance:

  1. In the Azure portal, select Diagnose and solve problems from your ExpressRoute circuit.

    Diagnose and solve problems button.

  2. Select Performance Issues.

    Performance issues option.

  3. Wait for diagnostics to run and interpret the results.

    Diagnostic results.

If maintenance occurred during packet loss or latency, it might have contributed to connectivity issues. Follow the recommended steps and consider upgrading the virtual network gateway SKU to support higher throughput and avoid future issues.

Next steps

For more information or help, check out the following links:
