Tutorial: Use dynamic configuration in a .NET Framework app

Article
03/07/2024

Data from App Configuration can be loaded as App Settings in a .NET Framework app. For more information, see the quickstart. However, as is designed by the .NET Framework, the App Settings can only refresh upon app restart. The App Configuration .NET provider is a .NET Standard library. It supports caching and refreshing configuration dynamically without app restart. This tutorial shows how you can implement dynamic configuration updates in a .NET Framework console app.

In this tutorial, you learn how to:

Set up your .NET Framework app to update its configuration in response to changes in an App Configuration store.
Inject the latest configuration in your application.

Prerequisites

An Azure account with an active subscription. Create one for free.
An App Configuration store. Create a store.
Visual Studio
.NET Framework 4.7.2 or later

Add a key-value

Add the following key-value to the App Configuration store and leave Label and Content Type with their default values. For more information about how to add key-values to a store using the Azure portal or the CLI, go to Create a key-value.

Key	Value
TestApp:Settings:Message	Data from Azure App Configuration

Create a .NET Framework console app

Start Visual Studio and select Create a new project.
In Create a new project, filter on the Console project type and select Console App (.NET Framework) with C# from the project template list. Press Next.
In Configure your new project, enter a project name. Under Framework, select .NET Framework 4.7.2 or higher. Press Create.

Reload data from App Configuration

Right-click your project, and select Manage NuGet Packages. On the Browse tab, search and add the latest version of the following NuGet package to your project.

Microsoft.Extensions.Configuration.AzureAppConfiguration

Open Program.cs and add following namespaces.

using Microsoft.Extensions.Configuration;
using Microsoft.Extensions.Configuration.AzureAppConfiguration;

Add two variables to store configuration-related objects.

private static IConfiguration _configuration;
private static IConfigurationRefresher _refresher;

Update the Main method to connect to App Configuration with the specified refresh options.

static void Main(string[] args)
{
    var builder = new ConfigurationBuilder();
    builder.AddAzureAppConfiguration(options =>
    {
        options.Connect(Environment.GetEnvironmentVariable("ConnectionString"))
                // Load all keys that start with `TestApp:`.
                .Select("TestApp:*")
                // Configure to reload the key 'TestApp:Settings:Message' if it is modified.
                .ConfigureRefresh(refresh =>
                {
                    refresh.Register("TestApp:Settings:Message")
                           .SetCacheExpiration(TimeSpan.FromSeconds(10));
                });

        _refresher = options.GetRefresher();
    });

    _configuration = builder.Build();
    PrintMessage().Wait();
}

In the ConfigureRefresh method, a key within your App Configuration store is registered for change monitoring. The Register method has an optional boolean parameter refreshAll that can be used to indicate whether all configuration values should be refreshed if the registered key changes. In this example, only the key TestApp:Settings:Message will be refreshed. The SetCacheExpiration method specifies the minimum time that must elapse before a new request is made to App Configuration to check for any configuration changes. In this example, you override the default expiration time of 30 seconds, specifying a time of 10 seconds instead for demonstration purposes.

Add a method called PrintMessage() that triggers a refresh of configuration data from App Configuration.
```
private static async Task PrintMessage()
{
    Console.WriteLine(_configuration["TestApp:Settings:Message"] ?? "Hello world!");

    // Wait for the user to press Enter
    Console.ReadLine();

    await _refresher.TryRefreshAsync();
    Console.WriteLine(_configuration["TestApp:Settings:Message"] ?? "Hello world!");
}
```
Calling the ConfigureRefresh method alone won't cause the configuration to refresh automatically. You call the TryRefreshAsync method from the interface IConfigurationRefresher to trigger a refresh. This design is to avoid requests sent to App Configuration even when your application is idle. You can include the TryRefreshAsync call where you consider your application active. For example, it can be when you process an incoming message, an order, or an iteration of a complex task. It can also be in a timer if your application is active all the time. In this example, you call TryRefreshAsync when you press the Enter key. Note that, even if the call TryRefreshAsync fails for any reason, your application will continue to use the cached configuration. Another attempt will be made when the configured cache expiration time has passed and the TryRefreshAsync call is triggered by your application activity again. Calling TryRefreshAsync is a no-op before the configured cache expiration time elapses, so its performance impact is minimal, even if it's called frequently.

Build and run the app locally

Set an environment variable named ConnectionString to the read-only key connection string obtained during your App Configuration store creation.

If you use the Windows command prompt, run the following command:
```
setx ConnectionString "<connection-string-of-your-app-configuration-store>"
```
If you use Windows PowerShell, run the following command:
```
$Env:ConnectionString = "<connection-string-of-your-app-configuration-store>"
```
Restart Visual Studio to allow the change to take effect.

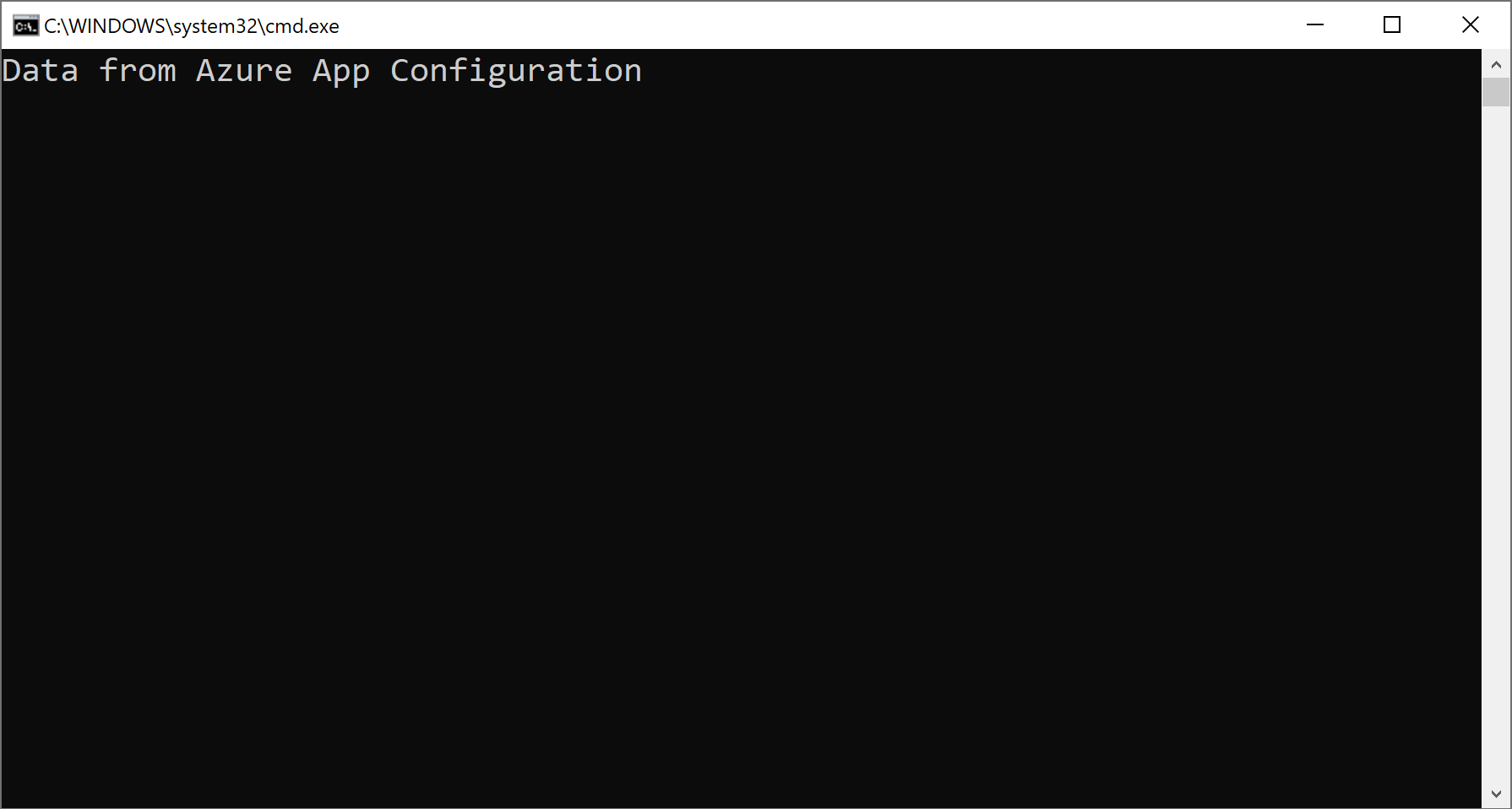

Press Ctrl + F5 to build and run the console app.
In the Azure portal, navigate to the Configuration explorer of your App Configuration store, and update the value of the following key.

Key Value

TestApp:Settings:Message Data from Azure App Configuration - Updated
Back in the running application, press the Enter key to trigger a refresh and print the updated value in the Command Prompt or PowerShell window.

Note

Since the cache expiration time was set to 10 seconds using the SetCacheExpiration method while specifying the configuration for the refresh operation, the value for the configuration setting will only be updated if at least 10 seconds have elapsed since the last refresh for that setting.

Key	Value
TestApp:Settings:Message	Data from Azure App Configuration - Updated

Clean up resources

If you don't want to continue using the resources created in this article, delete the resource group you created here to avoid charges.

Important

Deleting a resource group is irreversible. The resource group and all the resources in it are permanently deleted. Ensure that you don't accidentally delete the wrong resource group or resources. If you created the resources for this article inside a resource group that contains other resources you want to keep, delete each resource individually from its respective pane instead of deleting the resource group.

Sign in to the Azure portal, and select Resource groups.
In the Filter by name box, enter the name of your resource group.
In the result list, select the resource group name to see an overview.
Select Delete resource group.
You're asked to confirm the deletion of the resource group. Enter the name of your resource group to confirm, and select Delete.

After a few moments, the resource group and all its resources are deleted.

Next steps

In this tutorial, you enabled your .NET Framework app to dynamically refresh configuration settings from App Configuration. To learn how to enable dynamic configuration in an ASP.NET Web Application (.NET Framework), continue to the next tutorial:

Enable dynamic configuration in ASP.NET Web Applications

To learn how to use an Azure managed identity to streamline the access to App Configuration, continue to the next tutorial:

Managed identity integration
