Treemap and sunburst charts in a paginated report in SQL Server Reporting Services (Report Builder)

  • Άρθρο

Applies to:  Microsoft Report Builder (SSRS)  Power BI Report Builder  Report Designer in SQL Server Data Tools

The SQL Server Report Builder treemap and sunburst visualizations are great for visually representing hierarchical data in a paginated report. This article is an overview of how to add a treemap or sunburst chart to a report. The article also includes an AdventureWorks sample query to help you get started.

Treemap chart

A treemap chart divides the chart area into rectangles that represent the different levels and relative sizes of the data hierarchy. The map is similar to branches on a tree that start with a trunk and divide into smaller and smaller branches. Each rectangle is broken into smaller rectangles that represent the next level in the hierarchy. The top-level treemap rectangles are arranged with the largest rectangle in the upper left corner of the chart to the smallest rectangle in the lower right corner. Within a rectangle, the next level of the higher is also arranged with rectangles from the upper left to the lower right.

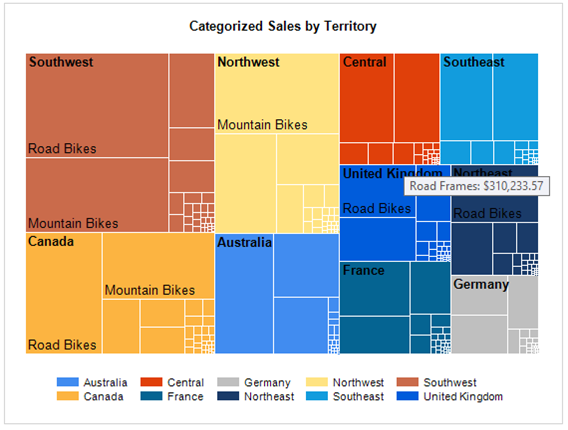

For example, in the following image of the sample treemap, the Southwest territory is the largest and Germany is the smallest. Within the Southwest, Road Bikes are larger than Mountain Bikes.

ssrs_treemap_example

To insert a treemap chart and set up the sample AdventureWorks data

Note

Before you add a chart to your report, create a data source and dataset. For sample data and a sample query, see Sample AdventureWorks data.

  1. Right-click the design surface, then select Insert > Chart. Select the Treemap icon.

    ssrs_treemap_icon

  2. Reposition and resize the chart. To use with the sample data, a chart that is 5 inches wide is a good start.

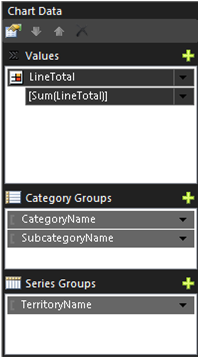

  3. Add the following fields from the sample data:

    • Values: LineTotal
    • Category Groups (in the following order):
      1. CategoryName
      2. SubcategoryName
    • Series Groups: TerritoryName

    ssrs_treemap_example_properties

  4. To optimize the page size for the general shape of a treemap, set the legend position to the bottom.

  5. To add tooltips that display the subcategory and the line total, right-click LineTotal, and then select Series Properties.

    ssrs_visualization_seriesproperties

    Set the Tooltip property to the following value:

    =Fields!SubcategoryName.Value &": " &Format(Sum(Fields!LineTotal.Value),"C")

    For more information, see Show ToolTips on a series (Report Builder and SSRS).

  6. Change the default chart title to Categorized Sales by Territory.

  7. The number of label values that are displayed are affected by the size of the font, the size of the overall chart area, and the size of specific rectangles. To see more labels, change the Label Font property of LineTotal to 10pt from the default of 8pt.

Sunburst chart

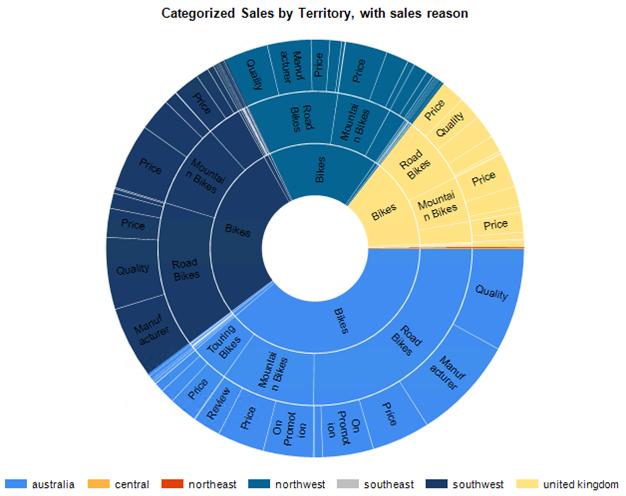

In a sunburst chart, the hierarchy is represented by a series of circles. The highest level of the hierarchy is in the center, and lower levels of the hierarchy are rings displayed outside the center. The lowest level of the hierarchy is the outside ring.

ssrs_sunburst_example

To insert a sunburst chart and set up the sample AdventureWorks data

Note

Before you add a chart to your report, create a data source and dataset. For sample data and a sample query, see Sample AdventureWorks data.

  1. Right-click the design surface, and then select Insert > Chart. Select the Sunburst icon.

    ssrs_sunburst_icon

  2. Reposition and resize the chart. To use with the sample data, a chart that is 5 inches wide is a good start.

  3. Add the following fields from the sample data:

    • Values: LineTotal
    • Category Groups (in the following order):
      1. CategoryName
      2. SubcategoryName
      3. SalesReasonName
    • Series Groups: TerritoryName

    ssrs_treemap_example_properties

  4. To optimize the page size for the general shape of a sunburst chart, set the legend position to the bottom.

  5. Change the default chart title to Categorized Sales by Territory, with sales reason.

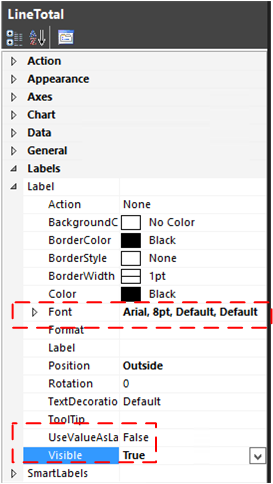

  6. To add the values of the category groups to the sunburst as labels, set the label properties Visible=true and UseValueAsLabel=false.

    The label values that are displayed are affected by the size of the font, the size of the overall chart area, and the size of specific rectangles. To see more labels, change the Label Font property of LineTotal to 10pt from the default of 8pt.

    ssrs_sunburst_linetotalproperties

  7. If you want a different range of colors, change the chart Palette property.

    ssrs_visualization_palette

Sample AdventureWorks data

This section includes a sample query and the basic steps for creating a data source and dataset in Report Builder. If your report already contains a data source and dataset, you can skip this section.

The query returns AdventureWorks sales order detail data with sales territory, product category, product subcategory, and sales reason data.

  1. Get the data.

    The Transact-SQL code samples in this article use the AdventureWorks2022 or AdventureWorksDW2022 sample database, which you can download from the Microsoft SQL Server Samples and Community Projects home page.

  2. Create a data source.

    1. Under Report Data, right-click Data Sources, and then select Add data source.

    2. Select Use a connection embedded in my report.

    3. For connection type, select Microsoft SQL Server.

    4. Enter the connection string to your server and database. For example:

      Data Source=[server name];Initial Catalog=AdventureWorks2022

    5. To verify the connection, select the Test Connection button, and then select OK.

    For more information about creating a data source, see Add and verify a data connection (Report Builder and SSRS).

  3. Create a dataset.

    1. Under Report Data, right-click Datasets, and then select Add dataset.

    2. Select Use a dataset embedded in my report.

    3. Select the data source that you created.

    4. Select the Text query type, and then copy and paste the following query into the Query text box:

      SELECT    Sales.SalesOrderHeader.SalesOrderID, Sales.SalesOrderHeader.OrderDate, Sales.SalesOrderDetail.SalesOrderDetailID, Sales.SalesOrderDetail.ProductID, Sales.SalesOrderDetail.LineTotal,
                         Sales.SalesOrderDetail.UnitPrice, Sales.SalesOrderDetail.OrderQty, Production.Product.Name, Production.Product.ProductNumber, Sales.SalesTerritory.TerritoryID, lower(Sales.SalesTerritory.Name) AS TerritoryName,
                         Production.ProductSubcategory.Name AS SubcategoryName, Production.ProductCategory.Name AS CategoryName, Sales.SalesReason.SalesReasonID, Sales.SalesReason.Name AS SalesReasonName
FROM            Sales.SalesOrderDetail INNER JOIN
                         Sales.SalesOrderHeader ON Sales.SalesOrderDetail.SalesOrderID = Sales.SalesOrderHeader.SalesOrderID INNER JOIN
                         Production.Product ON Sales.SalesOrderDetail.ProductID = Production.Product.ProductID INNER JOIN
                         Sales.SalesTerritory ON Sales.SalesOrderHeader.TerritoryID = Sales.SalesTerritory.TerritoryID AND Sales.SalesOrderHeader.TerritoryID = Sales.SalesTerritory.TerritoryID AND
                         Sales.SalesOrderHeader.TerritoryID = Sales.SalesTerritory.TerritoryID INNER JOIN
                         Production.ProductSubcategory ON Production.Product.ProductSubcategoryID = Production.ProductSubcategory.ProductSubcategoryID AND
                         Production.Product.ProductSubcategoryID = Production.ProductSubcategory.ProductSubcategoryID AND
                         Production.Product.ProductSubcategoryID = Production.ProductSubcategory.ProductSubcategoryID INNER JOIN
                         Production.ProductCategory ON Production.ProductSubcategory.ProductCategoryID = Production.ProductCategory.ProductCategoryID AND
                         Production.ProductSubcategory.ProductCategoryID = Production.ProductCategory.ProductCategoryID AND
                         Production.ProductSubcategory.ProductCategoryID = Production.ProductCategory.ProductCategoryID INNER JOIN
                         Sales.SalesOrderHeaderSalesReason ON Sales.SalesOrderHeader.SalesOrderID = Sales.SalesOrderHeaderSalesReason.SalesOrderID AND
                         Sales.SalesOrderHeader.SalesOrderID = Sales.SalesOrderHeaderSalesReason.SalesOrderID AND Sales.SalesOrderHeader.SalesOrderID = Sales.SalesOrderHeaderSalesReason.SalesOrderID AND
                         Sales.SalesOrderHeader.SalesOrderID = Sales.SalesOrderHeaderSalesReason.SalesOrderID INNER JOIN
                         Sales.SalesReason ON Sales.SalesOrderHeaderSalesReason.SalesReasonID = Sales.SalesReason.SalesReasonID AND
                         Sales.SalesOrderHeaderSalesReason.SalesReasonID = Sales.SalesReason.SalesReasonID AND Sales.SalesOrderHeaderSalesReason.SalesReasonID = Sales.SalesReason.SalesReasonID AND
                         Sales.SalesOrderHeaderSalesReason.SalesReasonID = Sales.SalesReason.SalesReasonID

    5. Select OK.

    For more information about creating a dataset, see Create a shared dataset or embedded dataset (Report Builder and SSRS).
