Build Quality Indicators report

TFS 2017 | TFS 2015 | TFS 2013

The Build Quality Indicators report shows test coverage, code churn, and bug counts for a specified build definition. You can use this report to help determine how close portions of the code are to release quality.

Important

This report is only applicable for XAML builds, which are deprecated for TFS 2018 and later versions. If your build process isn't based on XAML builds, this report and the TFS Warehouse for builds won't yield any meaningful data.

Ideally, test rates, bugs, and code churn would all produce the same picture, but they often don't. When you find a discrepancy, you can use the Bug Quality Indicators report to examine the details of a specific build and data series. Because this report combines test results, code coverage from testing, code churn, and bugs, you can view many perspectives at the same time.

For information about how to access, refresh, or manage reports, see Reporting Services Reports.

Note

This report requires that the team project collection that contains your team project was provisioned with SQL Server Reporting Services. This report is not available if Report Reports does not appear when you open Team Explorer and expand your team project node.

You can use this report to answer the following questions:

- What is the quality of the software?
- How often are tests passing, and how much of the code is being tested?
- Based on the code and test metrics, is the team likely to meet target goals?

Prerequisites

To view the report, you must be assigned or belong to a group that has been assigned the Browser role in Reporting Services. For more information, see Add users to team projects.

Data in the report

The data that appears in the Build Quality Indicators report is derived from the data warehouse. The X-axis lists the specific builds that the report includes, based on the filters that you have set for the:

  • Platform
  • Configuration
  • Build definition

Each vertical bar represents a set of data that was derived from one or more builds. In the code size variant of the report, each vertical bar's length represents the size of the checked in code base. The bars are scaled so that the largest figure fits into the height of the chart. Manual tests can be run anytime after the build, and they're associated with that build. Tests that haven't been run yet are counted as "inconclusive."

The following illustration displays a sample Build Qualities Indicators report.

Example Build Quality Indicators report

The following table describes the information that appears for each quality indicator in the report:

Quality indicator Description
Active Bugs (count) Line chart that shows the number of bugs that were active at the time of the build. Note: Bugs aren't explicitly associated with builds. Some of the bugs counted might not affect the builds that appear in the chart. You can use the Area parameter to filter bugs by product area. This technique might show bugs that are most likely to affect the builds in the report.
Code Churn (lines) Line chart that shows the number of lines of code that the team added, removed, and changed in the checkins before the build. The code churn is calculated by determining the number of lines of code that have been added, deleted, or modified to the build divided by the total lines in the build.
Code Coverage (percent) Line chart that shows the percentage of code that the tests cover.
Inconclusive Tests Gray portion of the stacked bar chart, which indicates the number of tests that didn't succeed or were paused. If the build didn't succeed, the tests are either not counted or counted as inconclusive.
Failed Tests Red portion of the stacked bar chart, which indicates the number of tests that failed for the build.
Passed Tests Green portion of the stacked bar chart, which indicates the number of tests that passed for the build.

Note

For more information about the meaning of failing and passing tests results, see Test Plan Progress.

You can filter the report in the following ways:

  • Change the range of the X-axis by specifying the number of builds and specifying the end date for the report. The date of the first build shown will depend on the frequency of builds.

  • Filter the set of builds that the report shows by specifying the platform, configuration, and build definition to include in the report. Set the parameters in that sequence because the set of available values for build definition depends on the platform and configuration.

  • Filter the bugs that are counted in the report by specifying the product areas to include. This filter doesn't affect the set of builds that appear on the X-axis, the code churn, code coverage, or test results.

    For more information, see Filtering the Report later in this article.

Required test and build management activities

So that the Build Quality Indicators report is useful and shows all the quality indicators that it can display, team members must carry out the following activities to manage tests and builds:

  • Configure a build system. To use Team Foundation Build, you must set up a build system.

    For more information, see Build and Release agents.

  • Create build definitions. You can create several build definitions, each of which can be run to produce code for a different platform. Also, you can run each build for a different configuration.

    For more information, see Get started with CI/CD.

  • Define tests to run automatically as part of the build. As part of the build definition, you can define tests to run as part of the build or to fail if the tests fail.

    For more information, see Set up continuous testing for your builds.

  • Configure tests to gather code coverage data. For code coverage data to appear in the report, team members must instrument tests to gather that data.

  • Run builds regularly. You can run builds at set intervals or after every check-in. You can create regular builds when you use the schedule trigger.

    For more information, see Build triggers.

    Note

    Although a team member can manually rate a build by using Build Explorer, this rating is not reflected in the Build Quality Indicators report. The build rating appears in the Build Summary report. For more information, see Rate the quality of a completed build and Build Summary.

Change the number of builds in the report

The display of the Build Quality Indicators report will vary based on the number of builds that the report includes and other filters that you apply to the report. You can focus the report on a specific range of builds by changing the number of builds that appear in the report.

To set the number of builds that are represented in the report

  1. In Number of Builds, type the number to include.

  2. Next to End (Date), select the calendar icon, and then select the date that corresponds to the last day that builds were run that you want to include in the report.

  3. Select View Report.

Interpret the report

You can review the report to find answers to these questions for any specific build definition:

  • What is the quality of the software?

  • Is the team testing enough of our code?

  • Are the tests passing?

  • Is the team likely to finish based on the code and test metrics?

  • How often are tests passing, and how much of the code is being tested?

    Note

    The ratio of colored to grey segments reflects the fraction of the code that tests cover, but the proportions within the colored segments only approximately reflect the fractions of code that passes or fails tests. This ambiguity is because the fraction of green within the colored segment actually represents the number of tests that pass. A single error in one part of the code could cause many tests to fail, or a single failure might represent an extensive error in the design that has consequences throughout the code base.

Healthy version of report

A healthy Build Quality Indicators report will show the following indicators:

  • Most tests are passing (large areas of green), and few tests are failing (small amounts of red).

  • The percentage of red is less than 20-30 percent.

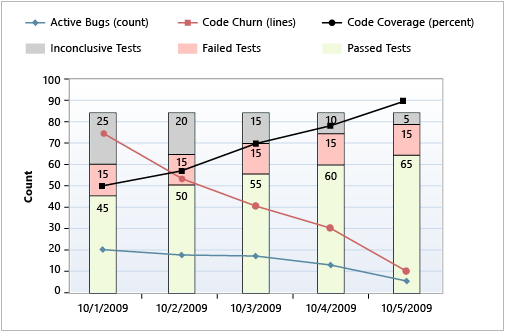

    As the following illustration shows, code coverage and test pass rates are high and increasing over time. Code churn, active bugs, inconclusive tests, and failed tests are all low and going down.

    Healthy version of Build Qualities Indicator

Unhealthy versions of the build quality indicators report

An unhealthy version of the Build Quality Indicators report shows one or more of the following indicators. You might want to investigate the cause according to the following guidance.

  • Less code coverage and more code churn. The following illustration shows code coverage going down and code churn going up. This data is a clear warning that new code is being checked in without corresponding unit tests to cover it.

    Code Churn in Build Quality Indicators report

  • Low rate of tests being run. The following illustration shows a low rate of tests being run. This data might indicate that the team isn't doing enough testing. This blockage could indicate lack of resources, or testers might be doing something else, such as writing test automation instead of testing the current functionality. In either case, resource balancing might be warranted.

    Low rate tests in Build Quality Indicators report

  • High code churn, low rate of code coverage. High code churn suggests that bugs will be introduced as side effects of the changes. In a perfectly refactored project, you can see code churn with no change in code coverage or test pass rates. Otherwise, high code churn might indicate decreased coverage and the need to rewrite tests.

    The following illustration shows a high rate of code churn and a low rate of code coverage from testing, even though test pass rates remain high. This data indicates that tests that are being run aren't exercising the new code.

    High Code Churn in Build Quality Indicators report

  • High rate of tests failing. The following illustration shows that many tests are being run with reasonable code coverage, but the tests are failing. This data might indicate loose development practices, or, in early iterations, the tests might be too harsh for this stage of the product.

    Test Failing in Build Quality Indicators report

    Failing tests should be addressed quickly. If fixing the code isn't practical, the failing tests should be temporarily disabled, and a bug should be logged. Although it's sometimes acceptable to treat code analysis faults with less urgency early in the project, you shouldn't let the red sections get too large.

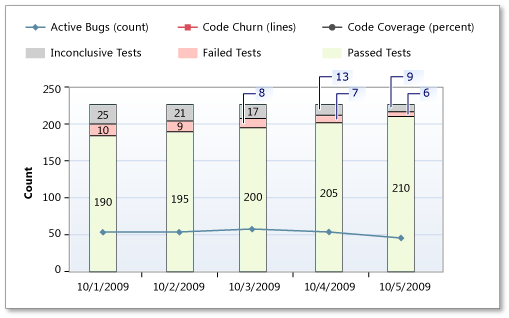

  • High rate of tests passing and high active bug rate. The following illustration shows a high test pass rate but still a large incoming bug rate. This situation can occur for several reasons. Tests might not be sufficiently rigorous for this stage of the product.

    Low Test Rate in Build Quality Indicators report

    In early iterations, simple tests are good, but as the product matures, tests should exercise broader scenarios and integrations. Tests might be stale, or they might be testing the wrong functionality. It might be time to switch test techniques.

  • Test pass rates increasing and no increase in code coverage. Ordinarily, as more tests are run, more code should be covered. On the other hand, if test execution and test pass rates increase without a corresponding increase in code coverage, the incremental tests might be redundant.

  • Active bug count is increasing, but test failures aren't increasing. If the active bug count is increasing and your tests aren't showing corresponding failures, your tests are probably not testing the same functionality that the bugs are reporting.

  • Active bug count is decreasing, but test passes aren't increasing. If the active bug count is going down and test pass rates aren't increasing, you might be at risk for an increasing reactivation rate.

  • Large areas of gray. Gray segments signify code that wasn't built or tested within the given build. This data appears only in a periodic report where one or more of the specified builds didn't occur within the period.

Filter the report

You can filter the Build Quality Indicators report in the following ways:

  • Change the time interval by specifying the number of builds and specifying the end date for the report.

  • Filter the set of builds that are represented in the report by specifying the platform, configuration, and build definition to include in the report.

    Note

    You can configure build definitions to run no tests, some tests, or all tests. The report will vary greatly based on the configuration of the build definitions.

  • Filter the bugs that are counted in the report by specifying the product areas to include.

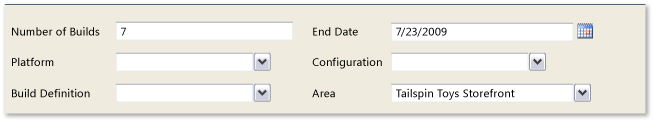

    The following illustration shows the available filters:

    Filters for Build Quality Indicators

    Apply the filters in the sequence that the following procedure specifies. The options that are available with some filters depend on the filters that you previously set.

To filter the builds that appear in the report

  1. In Number of Builds, type the number to include.

  2. Next to End Date, select the calendar icon, and then select the last date for builds to include.

  3. In the Platform list, select the check box of each platform to include.

  4. In the Configuration list, select the check box of each configuration to include.

  5. In the Build Definition list, select the check box of each build definition to include.

  6. Select View Report.

To filter the bug counts that are displayed in the report

  1. In the Area list, select the check box of each test result to include.

    This step filters the report based on the hierarchy of test results.

  2. Select View Report.
