Import and export process configuration

Άρθρο
01/11/2022

Azure DevOps Services | Azure DevOps Server 2022 - Azure DevOps Server 2019 | TFS 2018 - TFS 2013

Important

For the On-premises XML process model, you can use witadmin to list, import, export, and modify a process for a project. For the Inherited and Hosted XML process models, you can only use witadmin to list and export process information. For an overview of process models and what is supported, see Customize your work tracking experience.

You customize the process configuration to modify the display of the web portal Agile tools. A few additional tools require that you map workflow states to metastate mappings.

Note

If you receive error message TF400917, an invalid configuration has occurred. Re-import the process configuration file to your project using witadmin importprocessconfig. You'll get the messages you need to resolve the error.

To manage the process configuration for a project, use the witadmin command line tool to export and import the process configuration XML definition file. To learn about process configuration, see ProcessConfiguration.

exportprocessconfig: Exports the process configuration definition to an XML file or the Command Prompt window.
importprocessconfig: Imports the process configuration definition XML file.

How to run the witadmin command-line tool

To run the witadmin command-line tool, open a Command Prompt window where Visual Studio is installed. The witadmin command-line tool installs with any version of Visual Studio. You can access this tool by installing the free version of Visual Studio Community or Visual Studio Team Explorer.

Note

If you are connecting to an on-premises server, you must use the same or later version of Visual Studio or Team Explorer as Azure DevOps Server. For example, if you connect to a TFS 2017 instance, you must connect from Visual Studio 2017 or Team Explorer 2017. There is no Team Explorer 2015 version.

Visual Studio 2015 client:

cd %programfiles(x86)%\Microsoft Visual Studio 14.0\Common7\IDE

On a 32-bit edition of Windows, replace %programfiles(x86)% with %programfiles%. You can install Visual Studio Community (which provides access to Team Explorer) or Visual Studio Team Explorer 2017 for free.

Tip

With witadmin, you can import and export definition files. Other tools you can use include the Process Editor (requires that you have installed a version of Visual Studio). Install TFS Power Tools. Or, you can use the TFS Team Project Manager, an open-source client available from GitHub.

Prerequisites

To export process configuration definitions, you must be a valid user of the project or collection.
To import process configuration definitions, you must be a member of the following security groups: Team Foundation Administrators or Project Administrators.

For more information, see Change project collection-level permissions.

Syntax

witadmin exportprocessconfig /collection:CollectionURL /p:ProjectName [/f:FileName] [/e:encoding]
witadmin importprocessconfig /collection:CollectionURL [/p:ProjectName] /f:FileName [/e:encoding] [/v]

Parameters

Parameter

Description

/collection:CollectionURLx

Specifies the URI of the project collection. For example:

On-premises TFS format: http://ServerName:Port/VirtualDirectoryName/CollectionName

If no virtual directory is used, then the format for the URI is the following: http://ServerName:Port/CollectionName.

/p:ProjectName

Required. Specifies the project for which you want to export or import the process configuration. This project must be defined in the collection that you specified by using the /collection parameter. You do not need to specify a project when you specify the /v switch.

/f:FileName

The path and the name of the XML definition file for the process configuration to export or import.

Note

If the client computer is running Windows Vista, you might not have permissions to certain folders. If you try to export the global list to a location where you do not have permissions, the registry virtualization technology automatically redirects the exported file and saves it to the virtual store. For more information, see the Registry Virtualization page on the Microsoft website. To avoid this redirection, you can export the file to a location where you have permissions.

/e:Encoding

Optional. The name of a .NET Framework 2.0 encoding format. The specified encoding will be used to export or import the XML data. For example, /e utf-7 specifies Unicode (UTF-7) encoding. If you omit this parameter, witadmin attempts to detect the encoding and uses UTF-8 if detection fails.

Optional. Validates the XML that defines the process configuration but does not import the definition file.

/? or help

Displays help about the command in the Command Prompt window.

Remarks

Installing the latest version of TFS upgrades existing projects. If you are updating an upgraded project, see Configure features after an upgrade.

If you encounter problems accessing existing test plans or test suites after an upgrade, see Manual updates to support test management.

Examples

The following values apply in each example:

URL for the collection: http://AdventureWorksServer:8080/tfs/DefaultCollection
Project: Contoso
Port number for the server website: 8080

To add a field to the quick add panel

You can add fields for any quick add panel. For example, the following example adds Business Value to the product backlog panel.

Backlog panel with Business Value field added

The panel only displays fields that are included in the FIELDS section of the WIT definition for the WIT selected. For example, if you select the bug WIT, then only Title displays, as Business Value isn't defined for bugs. To add another WIT to the panel, you add it to the Requirements Category. See Add a work item type to a backlog and board.

If you don't have administrative permissions for your project, get them.

Open a Command Prompt window according to the instructions provided in How to run the witadmin command-line tool. For example:

cd %programfiles(x86)%\Microsoft Visual Studio\2017\Community\Common7\IDE\CommonExtensions\Microsoft\TeamFoundation\Team Explorer

Export the process configuration file.
```
witadmin exportprocessconfig /collection:CollectionURL /p:ProjectName /f:"DirectoryPath\ProcessConfiguration.xml"
```
An example of a CollectionURL is http://MyServer:8080/tfs/TeamProjectCollectionName.
Add the field reference name to the AddPanel section.

For example, the following syntax adds the Priority element to the panel.
```
<AddPanel>
   <Fields>
      <Field refname="System.Title" />
      <Field refname="Microsoft.VSTS.Common.BusinessValue" />
   </Fields>
</AddPanel>
```
Tip
- You can look up the reference name for a field using this index.
- Add all required fields for work item types defined for the Requirements Category. That way, you avoid having to open the work item form to fill them in when you add backlog items through the panel.

Import the process configuration file.

witadmin importprocessconfig /collection:CollectionURL /p:ProjectName /f:"DirectoryPath\ProcessConfiguration.xml"

Refresh your backlog page to view the updated panel.

Update metastate mappings to support Test Manager

If you customize the WORKFLOW section of the test plan or test suite, you must map the states to metastates.

In the following example, the test plan workflow has been updated to use the Design, Testing, and Signed Off states. To support backward compatibility, the TestPlanWorkItems is added to the ProjectProcessConfiguration section of the process configuration definition.

Workflow

<WORKFLOW>
      <STATES>
        <STATE value="Design" />
        <STATE value="Testing" />
        <STATE value="Signed Off" />
      </STATES>
      <TRANSITIONS>
        <TRANSITION from="" to="Design">
          <REASONS>
            <DEFAULTREASON value="New test plan" />
          </REASONS>
        </TRANSITION>
     <TRANSITION from="Design" to="Testing">
          <REASONS>
            <DEFAULTREASON value="Authoring complete" />
          </REASONS>
        </TRANSITION>
     <TRANSITION from="Testing" to="Signed Off">
          <REASONS>
            <DEFAULTREASON value="Signed Off testing" />
          </REASONS>
        </TRANSITION>
        <TRANSITION from="Signed Off" to="Design">
          <REASONS>
            <DEFAULTREASON value="Reactivating to authoring phase" />
          </REASONS>
        </TRANSITION>
        <TRANSITION from="Signed Off" to="Testing">
          <REASONS>
            <DEFAULTREASON value="Reactivating to run tests" />
          </REASONS>
        </TRANSITION>
        <TRANSITION from="Testing" to="Design">
          <REASONS>
            <DEFAULTREASON value="Back to authoring" />
          </REASONS>
        </TRANSITION>
      </TRANSITIONS>
    </WORKFLOW>

Metastate mappings

<TestPlanWorkItems category="Microsoft.TestPlanCategory" pluralName="Test Plans" singularName="Test Plan">
    <States>
      <State type="InProgress" value="Design" />
      <State type="InProgress" value="Testing" />
      <State type="Complete" value="Signed Off" />
    </States>
  </TestPlanWorkItems>
<TestSuiteWorkItems category="Microsoft.TestSuiteCategory" pluralName="Test Suites" singularName="Test Suite">
    <States>
      <State type="Proposed" value="In Planning" />
      <State type="InProgress" value="In Progress" />
      <State type="Complete" value="Completed" />
    </States>
  </TestSuiteWorkItems>

If you modify the test suite workflow, then you have to make a similar update if you want to map new states. You would add it within a TestSuiteWorkItems section. See ProcessConfiguration.

Q & A

Q: What customizations can I make and still use the Configure Features Wizard to update my project after a TFS upgrade?

A: You can customize the quick add panel. The Configure Features Wizard will update your projects and you'll get access to the latest features.

Other changes might require you to perform some manual operations when updating your project. To learn about which customizations you can safely make and which you should avoid, see Customize the work tracking experience: Before you customize, understand the maintenance and upgrade implications.

Q: When do I need to map workflow states to metastates?

A: When you add or remove workflow states to the following work item types, you should consider updating the process configuration to add or remove corresponding metastate mappings.

Work item types that belong to the Requirement Category or Task Category: Metastate mappings support the display of the Agile planning tools.
Work item types that belong to the Bug Category: Metastate mappings to support My Work tool (Agile and CMMI-based projects).
Test Plan and Test Suite: Updates to the workflow of these work item types must be mapped only when you support team members connecting to Azure DevOps from a version of Test Manager that is based on Visual Studio 2013.2 or earlier version.

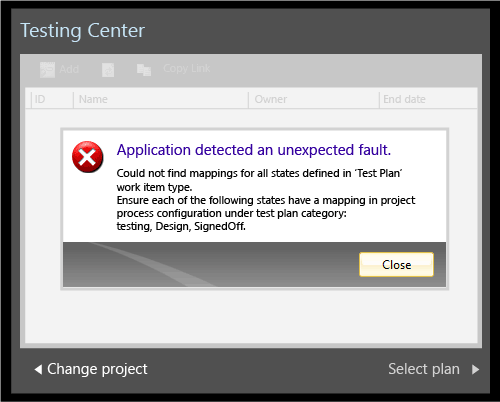

Update the metastate mappings if you receive an Application detected an unexpected fault error when you connect to your project.

How do I resolve process configuration errors?

A: When you make one of the following changes to a project, you'll need to update the definitions for the work item type, categories, or process configuration. To avoid errors, always make your changes in this order: (1) work item types, (2) categories, and (3) process configuration.

Customization

Update or verify the work item type definition

Update or verify the process configuration definition

Add a work item type to the Requirements Category

(A work item type can belong to the Requirements Category or the Task Category, but not both.)

To include the following fields:

Backlog Priority (Scrum) or Stack Rank (Agile or CMMI)

(must match the field value assigned to type=Order in the process configuration file)
Effort (Scrum), Story Points (Agile), or Size (CMMI)

(must match the field value assigned to type=Effort in the process configuration file)
Area path or the field value assigned to type=Team in the process configuration file
All fields that are included in the AddPanel section of the process configuration file (fields must be defined within the FIELDS section but don't have to be included within the FORM section.

To contain the necessary metastate mappings:

Map the start of each workflow state to type="Proposed"
Map each intermediate workflow state you want to have show up on the Kanban board to type="InProgress"
Map the end of each workflow state to type="Complete"
You can have only one State mapped to type="Complete"

To contain an entry to define the color codes associated with the WIT. For example:
<WorkItemColor primary="FF009CCC" secondary="FFD6ECF2" name="Product Backlog Item" />

Change the workflow of a work item type in the Requirements Category

N/A

To contain the necessary metastate mappings as described above for adding a work item type to the Requirements Category.

Add a work item type to the Task Category

To include the following fields:

Backlog Priority (Scrum) or Stack Rank (Agile or CMMI)
Activity (Scrum or Agile) or Discipline (CMMI)
(must match the field value assigned to type=Activity in the process configuration file)
Remaining Work
(must match the field value assigned to type=RemainingWork in the process configuration file)
Area path or the field value assigned to type=Team in the process configuration file
(Optional) Original Work and Completed Work (Agile and CMMI only)

To contain the necessary metastate mappings:

Map the start of each workflow state to type="Proposed"
Map each intermediate workflow state that you want to have show up on the task board to type="InProgress"
Map the end of each workflow state to type="Complete"

You can have only one State mapped to type="Complete"

To contain an entry to define the color codes associated with the WIT. For example:

<WorkItemColor primary="FFF2CB1D" secondary="FFF6F5D2" name="Task" />

Change the workflow of a work item type in the Task Category

N/A

To contain the necessary metastate mappings as described above for adding a work item type to the Task Category.

Add a work item type to the Bug Category (Agile and CMMI only)

Change the workflow of a work item type in the Bug Category (Agile and CMMI only)

N/A

To contain the necessary metastate mappings:

Map the start of each workflow state to type="Proposed"
Map each intermediate workflow state you want to have show up for My Work to type="InProgress"
Map the end of each workflow state type="Complete"

You can have only one State mapped to type="Complete"

To learn more, see Support bug update status using My Work.

Remove a work item type from the Requirements Category or Task Category

N/A

To remove any metastate mappings that are only associated with that work item type

Remove a work item type from a project

To remove the work item type from the categories file.

To remove any metastate mappings that are only associated with the work item type that you removed and the WorkItemColor element that defines the color codes for the work item type you removed.

Q: Do you want to work with two or more portfolio backlogs?

A: The default experience supports one level of portfolio backlog. You can add up to five levels as described in Add portfolio backlogs to Agile tools.

Q: Do you want to add or change the work item types that appear on your task board or product backlog?

A: If you've added a custom work item type and want to add that to either the backlog or task board, you can. You just can't have them appear in both places. Learn how by reading Add work item types to backlogs and boards.
