Azure SQL and Microsoft SQL Server Microsoft Graph connectors

The Microsoft SQL Server or Azure SQL Microsoft Graph connectors allow your organization to discover and index data from an on-premises SQL Server database, or a database hosted in your Azure SQL instance in the cloud. The connector indexes specified content in Microsoft Search and Microsoft 365 Copilot. To keep the index up to date with source data, it supports periodic full and incremental crawls. With these SQL connectors, you can also restrict access to search results for certain users.

This article is for anyone who configures, runs, and monitors an Azure SQL or a Microsoft SQL server Microsoft Graph connector. It supplements the general setup process and shows instructions that apply only to the Azure SQL and Microsoft SQL Server Microsoft Graph connectors. It also includes information about Limitations for both connectors.

Before you get started

Install the Microsoft Graph connector agent (required for on-premises Microsoft SQL Server Microsoft Graph connector only)

In order to access your on-premises third-party data, you must install and configure the connector agent. For more information, see Install the Microsoft Graph connector agent.

Note

If you use Windows authentication while configuring the Microsoft SQL Server connector, the user with which you are trying to sign in needs to have interactive login rights to the machine where the connector agent is installed. For more information, see login policy management.

Step 1: Add a connector in the Microsoft 365 admin center

Follow the general setup instructions.

Step 2: Name the connection

Follow the general setup instructions.

Step 3: Configure the connection settings

Register an app (for Azure SQL Microsoft Graph connector only)

For Azure SQL connector, you must register an app in Microsoft Entra ID to allow the Microsoft Search app and Microsoft 365 Copilot to access data for indexing. To learn more about registering an app, refer to the Microsoft Graph documentation on how to register an app.

After completing the app registration and taking note of the app name, application (client) ID, and tenant ID, you need to generate a new client secret. The client is only displayed once. Remember to note & store the client secret securely. Use the client ID and client secret while configuring a new connection in Microsoft Search and Microsoft 365 Copilot.

To add the registered app to your Azure SQL Database, you need to:

  1. Log in to your Azure SQL DB.
  2. Open a new query window.
  3. Create a new user by running the command 'CREATE USER [app name] FROM EXTERNAL PROVIDER'.
  4. Add the user to the role by running the command 'exec sp_addrolemember 'db_datareader', [app name]' or 'ALTER ROLE db_datareader ADD MEMBER [app name]'.

To learn more about revoking access to any app registered in Microsoft Entra ID, see removing a registered app.

Connection settings

To connect your Microsoft SQL Server Microsoft Graph connector to a data source, you must configure the database server you want crawled and the on-prem agent. You can then connect to the database with the required authentication method.

Note

  • Your database must run SQL Server version 2008 or later for the Microsoft SQL Server Microsoft Graph connector to be able to connect.
  • The Azure SQL Microsoft Graph connector only allows ingestion from an Azure SQL instance in the same tenant as of Microsoft 365. Cross-tenant data flow is not supported.

For the Azure SQL Microsoft Graph connector, you only need to specify the server name or IP address you want to connect to. Azure SQL connector only supports Microsoft Entra ID OpenID Connect (OIDC) authentication to connect to the database.

For added security, you may configure IP firewall rules for your Azure SQL Server or database. To learn more about setting up IP firewall rules, refer to the documentation on IP firewall rules. Add the following client IP ranges in the firewall settings.

Region Microsoft 365 Enterprise Microsoft 365 Government
NAM 52.250.92.252/30, 52.224.250.216/30 52.245.230.216/30, 20.141.117.64/30
EUR 20.54.41.208/30, 51.105.159.88/30 NA
APC 52.139.188.212/30, 20.43.146.44/30 NA

To search your database content, you must specify SQL queries when you configure the connector. These SQL queries need to name all the database columns that you want to index (that is, source properties), including any SQL joins that need to be performed to get all the columns. To restrict access to search results, you must specify Access Control Lists (ACLs) within SQL queries when you configure the connector.

Step 3a: Full crawl (required)

In this step, you configure the SQL query that runs a full crawl of the database. The full crawl selects all the columns or properties where you want to select the options Query, Search, or Retrieve. You can also specify ACL columns to restrict access to search results to specific users or groups.

Tip

To get all the columns that you need, you can join multiple tables.

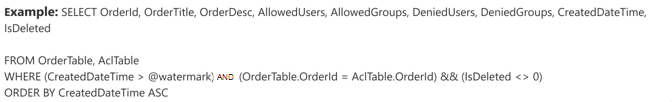

Script showing the OrderTable and AclTable with example properties.

Select data columns (required) and ACL columns (optional)

The example demonstrates a selection of five data columns that hold the data for the search: orderId, orderTitle, orderDesc, createdDateTime, and isDeleted. To set view permissions for each row of data, you can optionally select these ACL columns: allowedUsers, allowedGroups, deniedUsers, and deniedGroups. All these data columns also have the options to Query, Search, or Retrieve.

Select data columns as shown in this example query: SELECT orderId, orderTitle, orderDesc, allowedUsers, allowedGroups, deniedUsers, deniedGroups, createdDateTime, isDeleted

Note that the SQL connectors do not allow column names with non-alphanumeric characters in the SELECT clause. Remove any non-alphanumeric characters from column names using an alias. Example - SELECT column_name AS columnName

To manage access to the search results, you can specify one or more ACL columns in the query. The SQL connector allows you to control access at per record level. You can choose to have the same access control for all records in a table. If the ACL information is stored in a separate table, you might have to do a join with those tables in your query.

The use of each of the ACL columns in the above query is described below. The following list explains the four access control mechanisms.

  • AllowedUsers: This column specifies the list of user IDs who can access the search results. In the following example, a list of users: john@contoso.com, keith@contoso.com, and lisa@contoso.com would only have access to a record with OrderId = 12.
  • AllowedGroups: This column specifies the group of users who will be able to access the search results. In the following example, group sales-team@contoso.com would only have access to record with OrderId = 12.
  • DeniedUsers: This column specifies the list of users who do not have access to the search results. In the following example, users john@contoso.com and keith@contoso.com do not have access to the record with OrderId = 13, whereas everyone else has access to this record.
  • DeniedGroups: This column specifies the group of users who do not have access to the search results. In the following example, groups engg-team@contoso.com and pm-team@contoso.com do not have access to a record with OrderId = 15, whereas everyone else has access to this record.

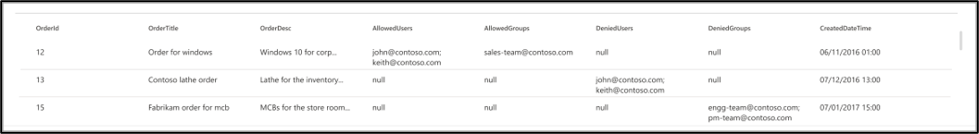

Sample data showing the OrderTable and AclTable with example properties.

Supported data types

The below table summarizes the SQL data types that are supported in the MS SQL and Azure SQL connectors. The table also summarizes the indexing data type for the supported SQL data type. To learn more about Microsoft Graph connectors supported data types for indexing, refer to the documentation on property resource types.

Category Source data type Indexing data type
Date and time date
datetime
datetime2
smalldatetime
datetime
Exact numeric bigint
int
smallint
tinyint
int64
Exact numeric bit boolean
Approximate numeric float
real
double
Character string char
varchar
text
string
Unicode character strings nchar
nvarchar
ntext
string
String collection char
varchar
text
stringcollection*
Other data types uniqueidentifier string

*To index a column as StringCollection, you need to cast a string to the string collection type. This can be done by clicking the 'Edit datatypes' link in Full crawl settings and selecting the appropriate columns as StringCollection along with specifying a delimiter to split the string.

For any other data type currently not directly supported, the column needs to be explicitly cast to a supported data type.

Watermark (required)

To prevent overloading the database, the connector batches and resumes full-crawl queries with a full-crawl watermark column. By using the value of the watermark column, each subsequent batch is fetched, and querying is resumed from the last checkpoint. Essentially this mechanism controls data refresh for full crawls.

Create query snippets for watermarks as shown in these examples:

  • WHERE (CreatedDateTime > @watermark). Cite the watermark column name with the reserved keyword @watermark. If the sort order of the watermark column is ascending, use >; otherwise, use <.
  • ORDER BY CreatedDateTime ASC. Sort on the watermark column in ascending or descending order.

In the configuration shown in the following image, CreatedDateTime is the selected watermark column. To fetch the first batch of rows, specify the data type of the watermark column. In this case, the data type is DateTime.

Watermark column configuration.

The first query fetches the first N number of rows by using: "CreatedDateTime > January 1, 1753 00:00:00" (min value of DateTime data type). After the first batch is fetched, the highest value of CreatedDateTime returned in the batch is saved as the checkpoint if the rows are sorted in ascending order. An example is March 1, 2019 03:00:00. Then the next batch of N rows is fetched by using "CreatedDateTime > March 1, 2019 03:00:00" in the query.

Skipping soft-deleted rows (optional)

To exclude soft-deleted rows in your database from being indexed, specify the soft-delete column name and value that indicates the row is deleted.

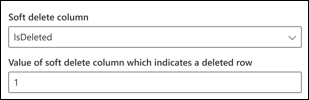

Soft delete settings: "Soft delete column" and "Value of soft delete column which indicates a deleted row."

Full crawl: Manage search permissions

Select Manage permissions to choose the various access control (ACL) columns that specify the access control mechanism. Select the column name you specified in the full crawl SQL query.

Each of the ACL columns is expected to be a multi-valued column. These multiple ID values can be separated by separators such as semicolon (;), comma (,), and so on. You need to specify this separator in the value separator field.

The following ID types are supported for use as ACLs:

  • User Principal Name (UPN): A User Principal Name (UPN) is the name of a system user in an email address format. A UPN (for example: john.doe@domain.com) consists of the username (login name), separator (the @ symbol), and domain name (UPN suffix).
  • Microsoft Entra ID: In Microsoft Entra ID, every user or group has an object ID that looks something like 'e0d3ad3d-0000-1111-2222-3c5f5c52ab9b'.
  • Active Directory (AD) Security ID: In an on-premises AD setup, every user and group have an immutable, unique security identifier that looks something like 'S-1-5-21-3878594291-2115959936-132693609-65242.'

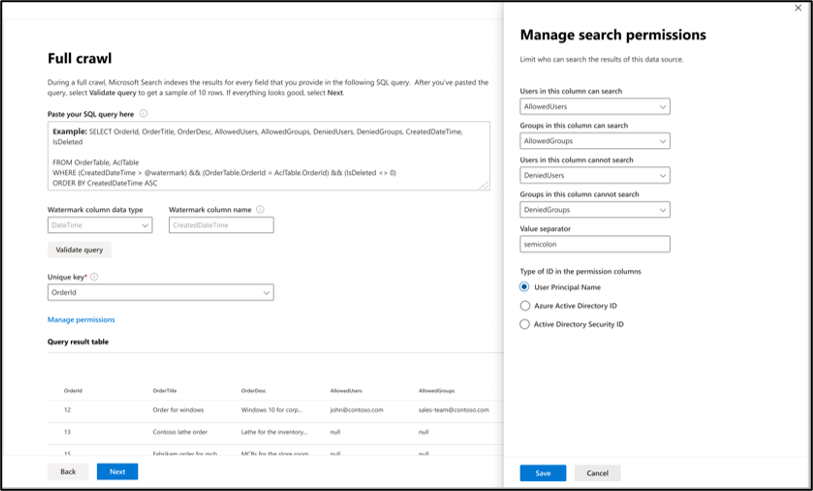

Search permission settings to configure access control lists.

Step 3b: Incremental crawl (optional)

In this optional step, provide a SQL query to run an incremental crawl of the database. With this query, the SQL connector determines any changes to the data since the last incremental crawl. As in the full crawl, select all columns where you want to select the options Query, Search, or Retrieve. Specify the same set of ACL columns that you specified in the full crawl query.

The components in the following image resemble the full crawl components with one exception. In this case, "ModifiedDateTime" is the selected watermark column. Review the full crawl steps to learn how to write your incremental crawl query and see the following image as an example.

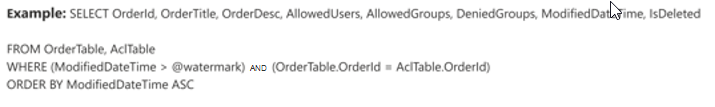

Incremental crawl script showing OrderTable, AclTable and example properties that can be used.

Step 4: Assign property labels

Follow the general setup instructions.

Step 5: Manage schema

Follow the general setup instructions.

Step 6: Manage search permissions

You can choose to use the ACLs specified in the full crawl screen or you can override them to make your content visible to everyone.

Step 7: Choose refresh settings

Follow the general setup instructions.

Step 8: Review connection

Follow the general setup instructions.

Limitations

The SQL connectors have these limitations in the preview release:

  • Microsoft SQL Server connector: The on-premises database must run SQL Server version 2008 or later.
  • The Microsoft 365 subscription and Azure subscription (hosting Azure SQL database) must lie within the same Microsoft Entra ID.
  • ACLs are only supported by using a User Principal Name (UPN), Microsoft Entra ID, or Active Directory Security.
  • Indexing rich content inside database columns is not supported. Examples of such content are HTML, JSON, XML, blobs, and document parsings that exist as links inside the database columns.

Troubleshooting

After publishing your connection, you can review the status under the Data sources tab in the admin center. To learn how to make updates and deletions, see Manage your connector. You can find troubleshooting steps for commonly seen issues here.

If you have issues or want to provide feedback, contact Microsoft Graph | Support.
