plotly_gauge_fl()

Applies to: ✅ Microsoft Fabric ✅ Azure Data Explorer ✅ Azure Monitor ✅ Microsoft Sentinel

The function plotly_gauge_fl() is a user-defined function (UDF) that allows you to customize a plotly template to create a gauge chart.

The function accepts few parameters to customize the gauge chart and returns a single cell table containing plotly JSON. Optionally, you can render the data in a Real-Time dashboard tile. For more information, see Plotly (preview).

Prerequisite

Extract the required 'gauge' template from the publicly available PlotlyTemplate table. Copy this table from the Samples database to your database by running the following KQL command from your target database:

.set PlotlyTemplate <| cluster('help.kusto.windows.net').database('Samples').PlotlyTemplate

Syntax

T | invoke plotly_gauge_fl(value, max_range, mode, chart_title, font_color, bar_color, bar_bg_color, tick_color, tick_width)

Learn more about syntax conventions.

Parameters

Name	Type	Required	Description
value	real	✔️	The number to be displayed.
max_range	range		The maximum range of the gauge.
mode	string		Specifies how the value is displayed on the graph. Default is 'gauge+number'.
chart_title	string		The chart title. The default is empty title.
font_color	string		The chart's font color. Default is 'black'.
bar_color	string		The gauge's filled bar color. Default is 'green'.
bar_bg_color	string		The gauge's not filled bar color. Default is 'lightgreen'.
tick_color	string		The gauge's ticks color. Default is 'darkblue'.
tick_width	int		The gauge's ticks width. Default is 1.

Plotly gauge charts support many parameters, still this function exposes only the above ones. For more information, see indicator traces reference.

Function definition

You can define the function by either embedding its code as a query-defined function, or creating it as a stored function in your database, as follows:

Query-defined

Define the function using the following let statement. No permissions are required.

Important

A let statement can't run on its own. It must be followed by a tabular expression statement. To run a working example of plotly_gauge_fl(), see Example.

let plotly_gauge_fl=(value:real, max_range:real=real(null), mode:string='gauge+number', chart_title:string='',font_color:string='black',
                    bar_color:string='green', bar_bg_color:string='lightgreen', tick_color:string='darkblue', tick_width:int=1)
{
    let gauge_chart = toscalar(PlotlyTemplate | where name == "gauge" | project plotly);
    print plotly = gauge_chart
    | extend plotly=replace_string(plotly, '$VALUE$', tostring(value))
    | extend plotly=replace_string(plotly, '$MAX_RANGE$', iff(isnull(max_range), 'null', tostring(max_range)))
    | extend plotly=replace_string(plotly, '$MODE$', mode)
    | extend plotly=replace_string(plotly, '$TITLE$', chart_title)
    | extend plotly=replace_string(plotly, '$FONT_COLOR$', font_color)
    | extend plotly=replace_string(plotly, '$BAR_COLOR$', bar_color)
    | extend plotly=replace_string(plotly, '$BAR_BG_COLOR$', bar_bg_color)
    | extend plotly=replace_string(plotly, '$TICK_COLOR$', tick_color)
    | extend plotly=replace_string(plotly, '$TICK_WIDTH$', tostring(tick_width))
    | project plotly
};
// Write your query to use your function here.

Stored

Define the stored function once using the following .create function. Database User permissions are required.

Important

You must run this code to create the function before you can use the function as shown in the Example.

.create-or-alter function with (folder = "Packages\\Plotly", docstring = "Render gauge chart using plotly template")
plotly_gauge_fl(value:real, max_range:real=real(null), mode:string='gauge+number', chart_title:string='',font_color:string='black',
                    bar_color:string='green', bar_bg_color:string='lightgreen', tick_color:string='darkblue', tick_width:int=1)
{
    let gauge_chart = toscalar(PlotlyTemplate | where name == "gauge" | project plotly);
    print plotly = gauge_chart
    | extend plotly=replace_string(plotly, '$VALUE$', tostring(value))
    | extend plotly=replace_string(plotly, '$MAX_RANGE$', iff(isnull(max_range), 'null', tostring(max_range)))
    | extend plotly=replace_string(plotly, '$MODE$', mode)
    | extend plotly=replace_string(plotly, '$TITLE$', chart_title)
    | extend plotly=replace_string(plotly, '$FONT_COLOR$', font_color)
    | extend plotly=replace_string(plotly, '$BAR_COLOR$', bar_color)
    | extend plotly=replace_string(plotly, '$BAR_BG_COLOR$', bar_bg_color)
    | extend plotly=replace_string(plotly, '$TICK_COLOR$', tick_color)
    | extend plotly=replace_string(plotly, '$TICK_WIDTH$', tostring(tick_width))
    | project plotly
}

Example

The following example uses the invoke operator to run the function.

Query-defined

To use a query-defined function, invoke it after the embedded function definition.

let plotly_gauge_fl=(value:real, max_range:real=real(null), mode:string='gauge+number', chart_title:string='',font_color:string='black',
                    bar_color:string='green', bar_bg_color:string='lightgreen', tick_color:string='darkblue', tick_width:int=1)
{
    let gauge_chart = toscalar(PlotlyTemplate | where name == "gauge" | project plotly);
    print plotly = gauge_chart
    | extend plotly=replace_string(plotly, '$VALUE$', tostring(value))
    | extend plotly=replace_string(plotly, '$MAX_RANGE$', iff(isnull(max_range), 'null', tostring(max_range)))
    | extend plotly=replace_string(plotly, '$MODE$', mode)
    | extend plotly=replace_string(plotly, '$TITLE$', chart_title)
    | extend plotly=replace_string(plotly, '$FONT_COLOR$', font_color)
    | extend plotly=replace_string(plotly, '$BAR_COLOR$', bar_color)
    | extend plotly=replace_string(plotly, '$BAR_BG_COLOR$', bar_bg_color)
    | extend plotly=replace_string(plotly, '$TICK_COLOR$', tick_color)
    | extend plotly=replace_string(plotly, '$TICK_WIDTH$', tostring(tick_width))
    | project plotly
};
plotly_gauge_fl(value=180, chart_title='Speed', font_color='purple', tick_width=5)
| render plotly

Stored

Important

For this example to run successfully, you must first run the Function definition code to store the function.

plotly_gauge_fl(value=180, chart_title='Speed', font_color='purple', tick_width=5)
| render plotly

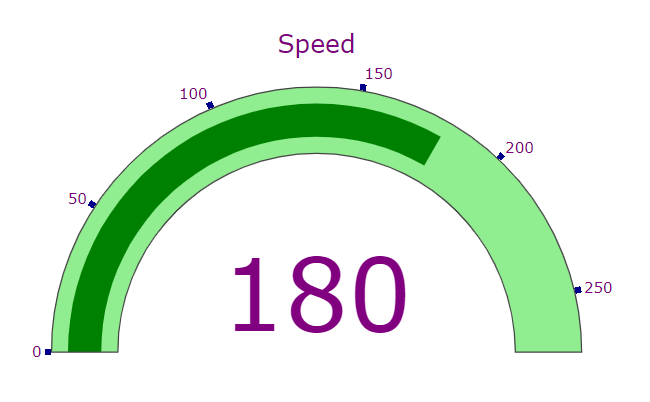

Output

The output is a Plotly JSON string that can be rendered in a Real-Time dashboard tile. For more information on creating dashboard tiles, see Real-Time dashboards.
