Create a recurring data export app

  • Άρθρο

Applies to these Dynamics 365 apps:
Human Resources

This article describes how to create a Microsoft Azure logic app that exports data from Microsoft Dynamics 365 Human Resources on a recurring schedule. The tutorial takes advantage of Human Resources' DMF package REST application programming interface (API) to export the data. After the data has been exported, the logic app saves the exported data package to a Microsoft OneDrive for Business folder.

Business scenario

In one typical business scenario for Microsoft Dynamics 365 integrations, data must be exported to a downstream system on a recurring schedule. This tutorial shows how to export all worker records from Microsoft Dynamics 365 Human Resources and save the list of workers in a OneDrive for Business folder.

Tip

The specific data that is exported in this tutorial and the destination of the exported data are only examples. You can easily change them to meet your business needs.

Technologies used

This tutorial uses the following technologies:

Prerequisites

Before you begin the exercise in this tutorial, you must have the following items:

  • A Human Resources environment that has admin-level permissions in the environment
  • An Azure subscription to host the logic app

The exercise

At the end of this exercise, you will have a logic app that is connected to your Human Resources environment and your OneDrive for Business account. The logic app will export a data package from Human Resources, wait for the export to be completed, download the exported data package, and save the data package in the OneDrive for Business folder that you specified.

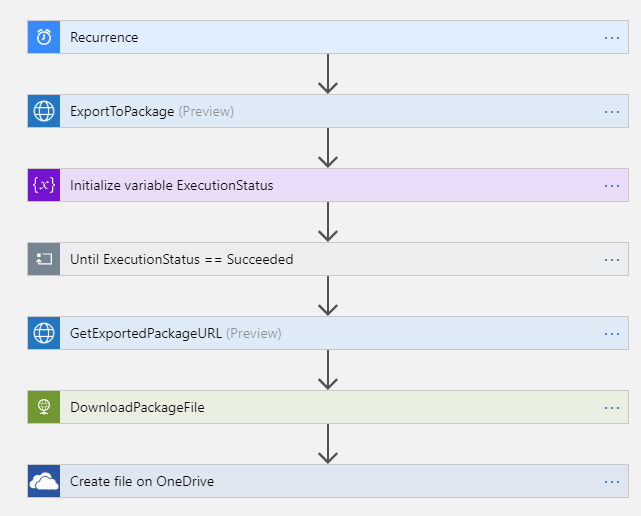

The completed logic app will resemble the following illustration.

Logic app overview.

Step 1: Create a data export project in Human Resources

In Human Resources, create a data export project that exports workers. Name the project Export Workers, and make sure that the Generate data package option is set to Yes. Add a single entity (Worker) to the project, and select the format to export in. (Microsoft Excel format is used in this tutorial.)

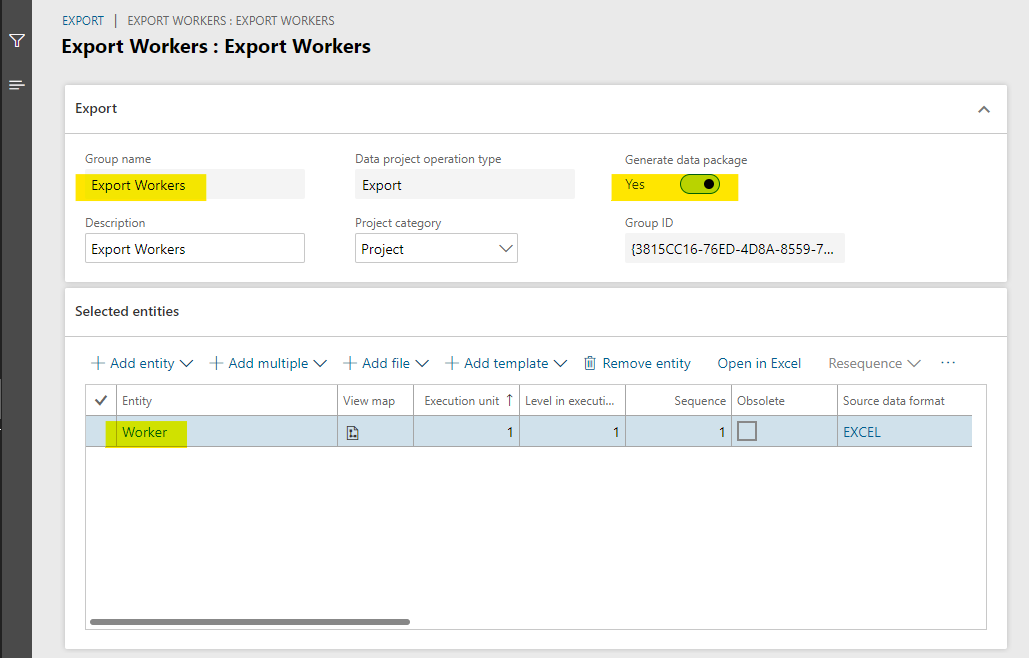

Export Workers data project.

Important

Remember the name of the data export project. You will need it when you create the logic app in the next step.

Step 2: Create the logic app

The bulk of the exercise involves creating the logic app.

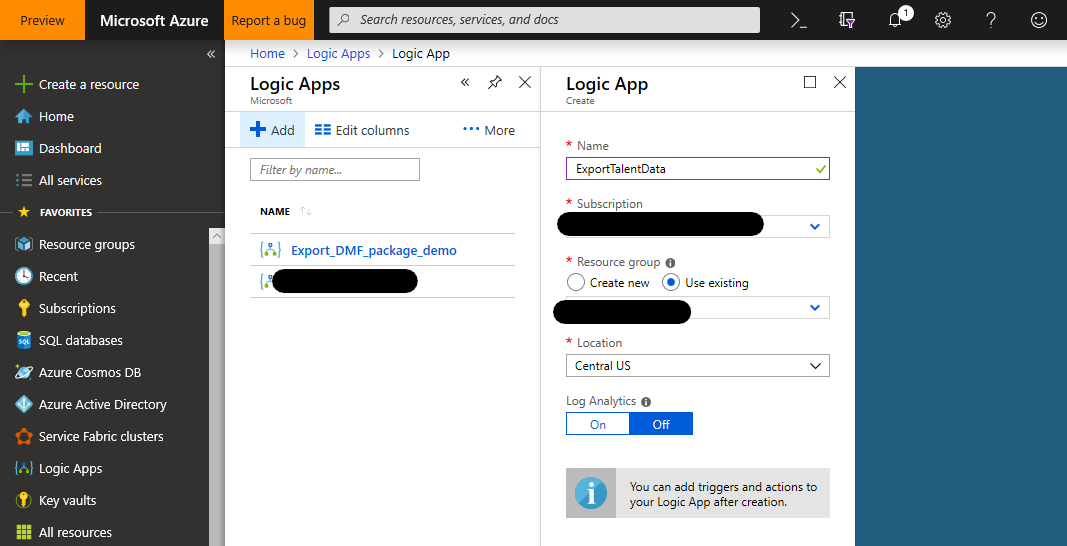

  1. In the Azure portal, create a logic app.

    Logic app creation page.

  2. In the Logic Apps Designer, start with a blank logic app.

  3. Add a Recurrence Schedule trigger to run the logic app every 24 hours (or according to a schedule of your choice).

    Recurrence dialog box.

  4. Call the ExportToPackage DMF REST API to schedule the export of your data package.

    1. Use the Invoke an HTTP request action from the HTTP with Microsoft Entra connector.

      • Base Resource URL: The URL of your Human Resources environment (Don't include path/namespace information.)
      • Microsoft Entra Resource URI: http://hr.talent.dynamics.com

      Note

      The Human Resources service doesn't yet provide a connector that exposes all the APIs that make up the DMF package REST API, such as ExportToPackage. Instead, you must call the APIs by using raw HTTPS requests through the HTTP with Microsoft Entra connector. This connector uses Microsoft Entra ID for authentication and authorization to Human Resources.

    2. Sign in to your Human Resources environment through the HTTP with Microsoft Entra connector.

    3. Set up an HTTP POST request to call the ExportToPackage DMF REST API.

      • Method: POST

      • Url of the request: https://<hostname>/namespaces/<namespace_guid>/data/DataManagementDefinitionGroups/Microsoft.Dynamics.DataEntities.ExportToPackage

      • Body of the request:

        {
    "definitionGroupId":"Export Workers",
    "packageName":"talent_package.zip",
    "executionId":"",
    "reExecute":false,
    "legalEntityId":"USMF"
}

      Invoke an HTTP request action.

    Tip

    You might want to rename each step so that it's more meaningful than the default name, Invoke an HTTP request. For example, you can rename this step ExportToPackage.

  5. Initialize a variable to store the execution status of the ExportToPackage request.

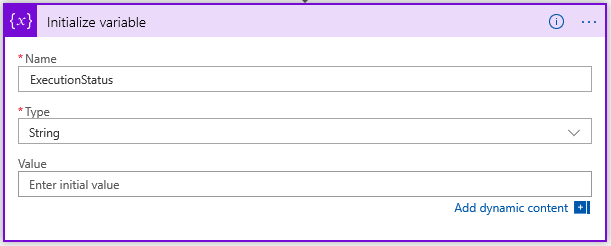

    Initialize variable action.

  6. Wait until the execution status of the data export is Succeeded.

    1. Add an Until loop that repeats until the value of the ExecutionStatus variable is Succeeded.

    2. Add a Delay action that waits five seconds before it polls for the current execution status of the export.

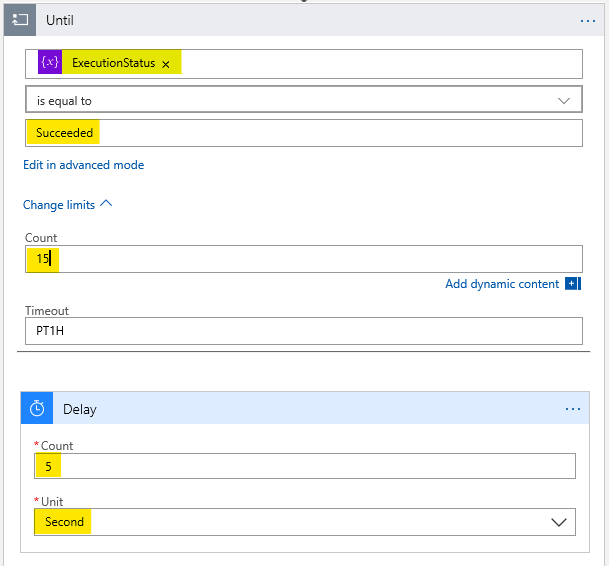

      Until loop container.

      Note

      Set the limit count to 15 to wait a maximum of 75 seconds (15 iterations × 5 seconds) for the export to be completed. If your export takes more time, adjust the limit count as appropriate.

    3. Add an Invoke HTTP request action to call the GetExecutionSummaryStatus DMF REST API, and set the ExecutionStatus variable to the result of the GetExecutionSummaryStatus response.

      This sample doesn't do error checking. The GetExecutionSummaryStatus API can return non-successful terminal states (that is, states other than Succeeded). For more information, see the API documentation.

      • Method: POST

      • Url of the request: https://<hostname>/namespaces/<namespace_guid>/data/DataManagementDefinitionGroups/Microsoft.Dynamics.DataEntities.GetExecutionSummaryStatus

      • Body of the request: body('Invoke_an_HTTP_request')?['value']

        Note

        You might have to enter the Body of the request value either in code view or in the function editor in the designer.

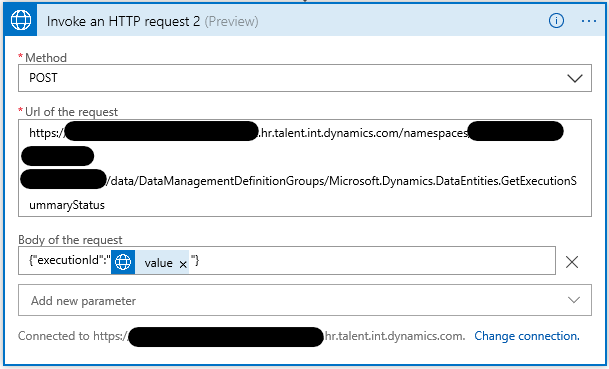

      Invoke an HTTP request 2 action.

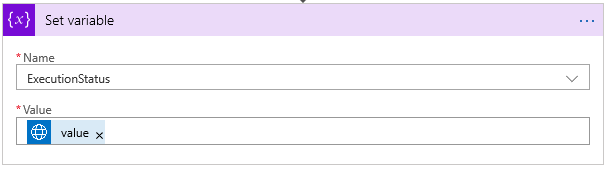

      Set variable action.

      Important

      The value for the Set variable action (body('Invoke_an_HTTP_request_2')?['value']) will differ from the value for the Invoke an HTTP request 2 body value, even though the designer will show the values in the same way.

  7. Get the download URL of the exported package.

    • Add an Invoke HTTP request action to call the GetExportedPackageUrl DMF REST API.

      • Method: POST
      • Url of the request: https://<hostname>/namespaces/<namespace_guid>/data/DataManagementDefinitionGroups/Microsoft.Dynamics.DataEntities.GetExportedPackageUrl
      • Body of the request: {"executionId": body('GetExportedPackageURL')?['value']}

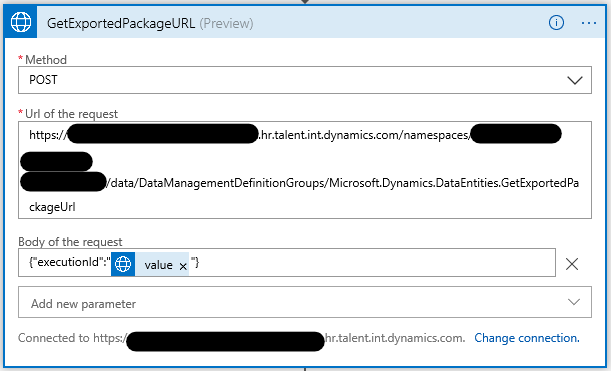

      GetExportedPackageURL action.

  8. Download the exported package.

    • Add an HTTP GET request (a built-in HTTP connector action) to download the package from the URL that was returned in the previous step.

      • Method: GET

      • URI: body('Invoke_an_HTTP_request_3').value

        Note

        You might have to enter the URI value either in code view or in the function editor in the designer.

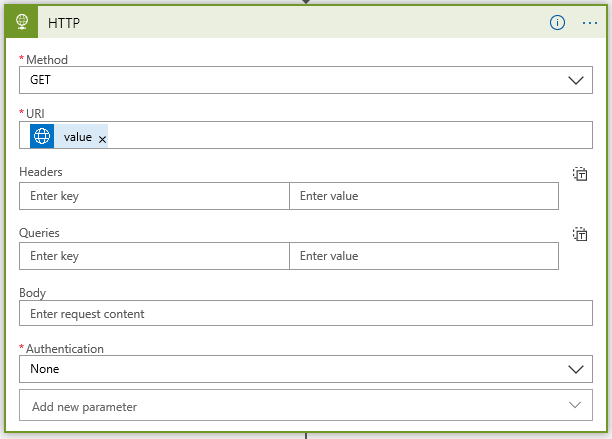

      HTTP GET action.

      Note

      This request doesn't require any additional authentication, because the URL that the GetExportedPackageUrl API returns includes a shared access signatures token that grants access to download the file.

  9. Save the downloaded package by using the OneDrive for Business connector.

    • Add a OneDrive for Business Create File action.

    • Connect to your OneDrive for Business account, as required.

      • Folder Path: A folder of your choice
      • File Name: worker_package.zip
      • File Content: The body from the previous step (dynamic content)

      Create file action.

Step 3: Test the logic app

To test your logic app, select the Run button in the designer. You will see that the steps of the logic app start to run. After 30 to 40 seconds, the logic app should finish running, and your OneDrive for Business folder should include a new package file that contains the exported workers.

If a failure is reported for any step, select the failed step in the designer, and examine the Inputs and Outputs fields for it. Debug and adjust the step as required to correct the errors.

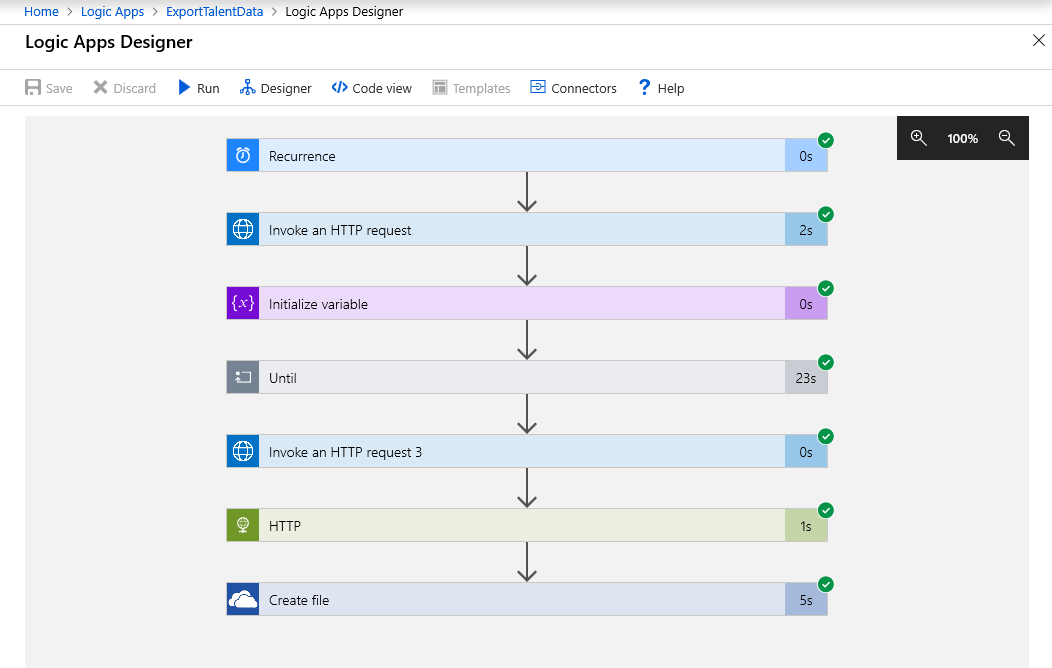

The following illustration shows what the Logic Apps Designer looks like when all the steps of the logic app run successfully.

Successful logic app run.

Summary

In this tutorial, you learned how to use a logic app to export data from Human Resources and save the exported data to a OneDrive for Business folder. You can modify the steps of this tutorial as required to suit your business needs.
