Do sentiment analysis with Azure Stream Analytics and Machine Learning Studio (classic)

  • Άρθρο

Important

Support for Azure Machine Learning Studio (classic) will end on August 31, 2024. We recommend that you transition to Azure Machine Learning by that date.

As of December 1, 2021, you can't create new Machine Learning Studio (classic) resources (workspace and web service plan). Through August 31, 2024, you can continue to use the existing Machine Learning Studio (classic) experiments and web services. For more information, see:

Machine Learning Studio (classic) documentation is being retired and might not be updated in the future.

This article shows you how to set up a simple Azure Stream Analytics job that uses Machine Learning Studio (classic) for sentiment analysis. You use a Studio (classic) sentiment analytics model from the Cortana Intelligence Gallery to analyze streaming text data and determine the sentiment score.

Tip

It is highly recommended to use Azure Machine Learning UDFs instead of Machine Learning Studio (classic) UDF for improved performance and reliability.

You can apply what you learn from this article to scenarios such as these:

  • Analyzing real-time sentiment on streaming X data.
  • Analyzing records of customer chats with support staff.
  • Evaluating comments on forums, blogs, and videos.
  • Many other real-time, predictive scoring scenarios.

The Streaming Analytics job that you create applies the sentiment analytics model as a user-defined function (UDF) on the sample text data from the blob store. The output (the result of the sentiment analysis) is written to the same blob store in a different CSV file.

Prerequisites

Before you start, make sure you have the following:

  • An active Azure subscription.

  • A CSV file with some X data in it. You can download a sample file from GitHub, or you can create your own file. In a real-world scenario, you would get the data directly from a X data stream.

Create a storage container and upload the CSV input file

In this step, you upload a CSV file to your storage container.

  1. In the Azure portal, select Create a resource > Storage > Storage account.

  2. Fill out the Basics tab with the following details and leave the default values for the remaining fields:

    Field Value
    Subscription Choose your subscription.
    Resource group Choose your resource group.
    Storage account name Enter a name for your storage account. The name must be unique across Azure.
    Location Choose a location. All resources should use the same location.
    Account kind BlobStorage

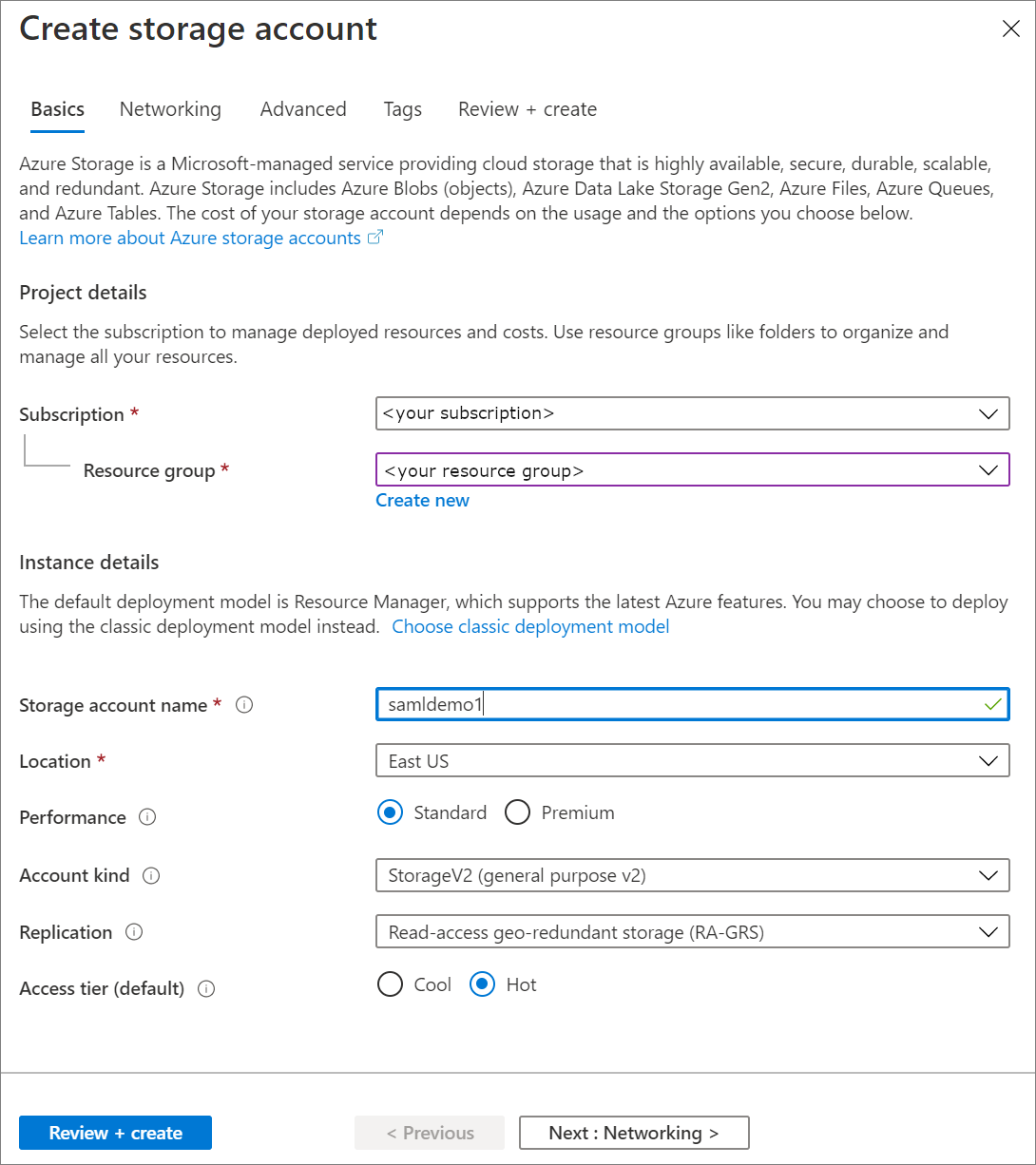

    provide storage account details

  3. Select Review + Create. Then, select Create to deploy your storage account.

  4. When the deployment is complete, navigate to your storage account. Under Blob service, select Containers. Then select + Container to create a new container.

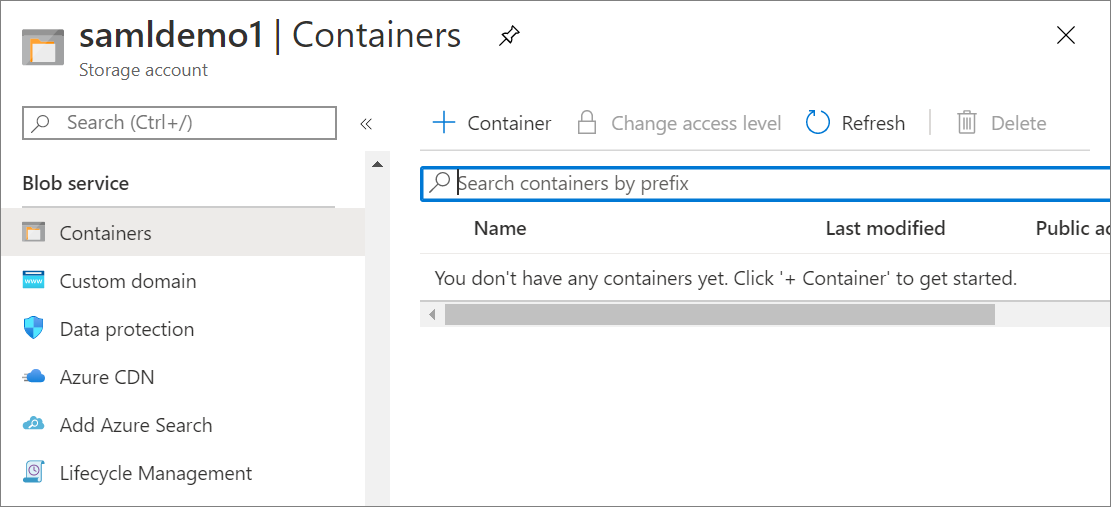

    Create blob storage container for input

  5. Provide a name for the container and verify that Public access level is set to Private. When you're done, select Create.

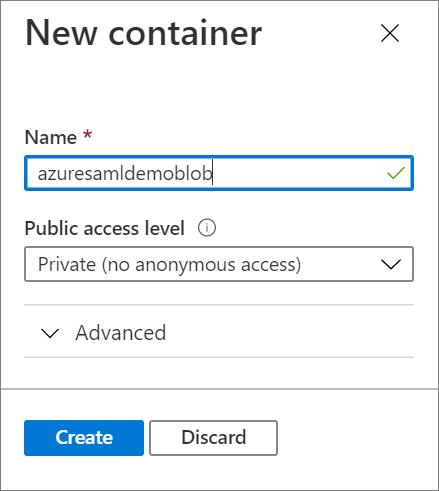

    specify blob container details

  6. Navigate to the newly created container and select Upload. Upload the sampleinput.csv file that you downloaded earlier.

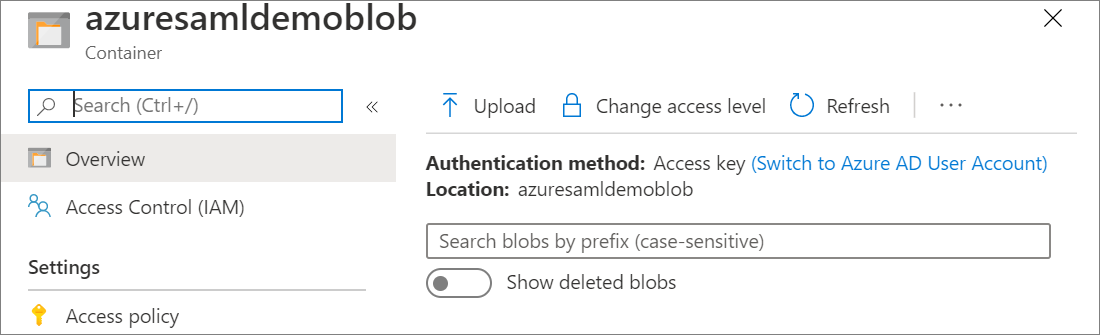

    'Upload' button for a container

Now that the sample data is in a blob, you can enable the sentiment analysis model in Cortana Intelligence Gallery.

  1. Go to the predictive sentiment analytics model page in the Cortana Intelligence Gallery.

  2. Select Open in Studio (classic).

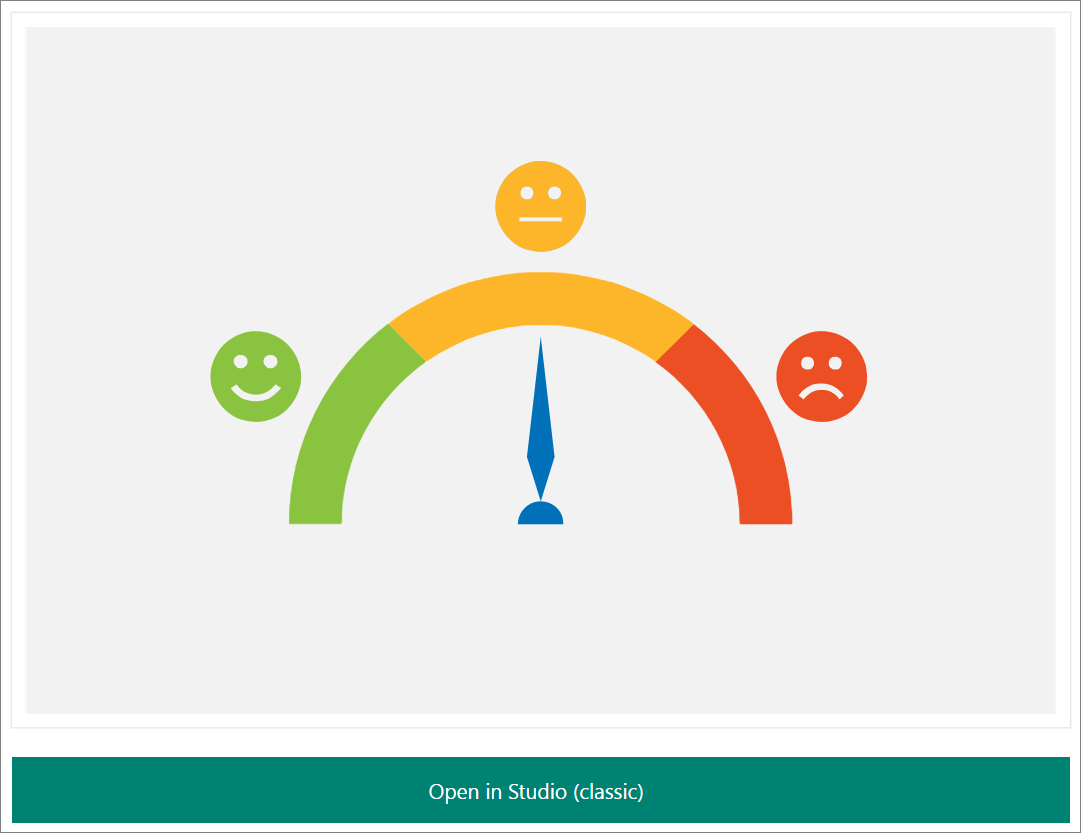

    Stream Analytics Machine Learning Studio (classic), open Studio (classic)

  3. Sign in to go to the workspace. Select a location.

  4. Select Run at the bottom of the page. The process runs, which takes about a minute.

    Run experiment in Studio (classic)

  5. After the process has run successfully, select Deploy Web Service at the bottom of the page.

    Deploy experiment in Studio (classic) as a web service

  6. To validate that the sentiment analytics model is ready to use, select the Test button. Provide text input such as "I love Microsoft".

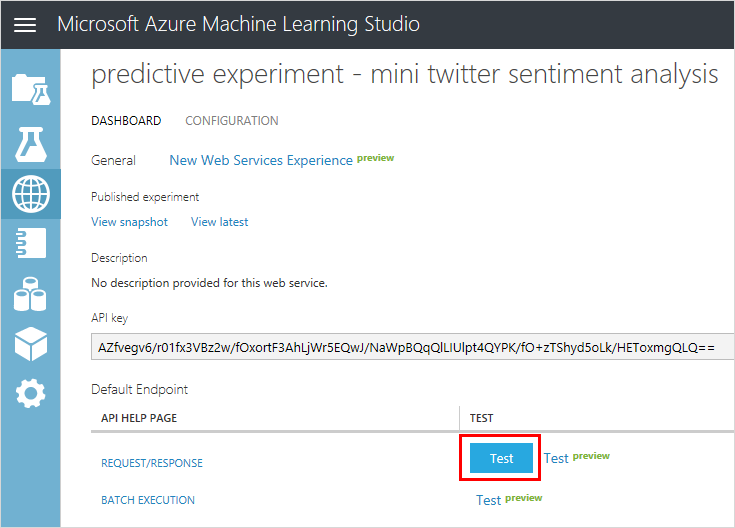

    Test experiment in Studio (classic)

    If the test works, you see a result similar to the following example:

    Test results in Studio (classic)

  7. In the Apps column, select the Excel 2010 or earlier workbook link to download an Excel workbook. The workbook contains the API key and the URL that you need later to set up the Stream Analytics job.

    Stream Analytics Machine Learning Studio (classic), quick glance

Create a Stream Analytics job that uses the Studio (classic) model

You can now create a Stream Analytics job that reads the sample tweets from the CSV file in blob storage.

Create the job

Go to the Azure portal and create a Stream Analytics job. If you're not familiar with this process, see Create a Stream Analytics job by using the Azure portal.

Configure the job input

The job gets its input from the CSV file that you uploaded earlier to blob storage.

  1. Navigate to your Stream Analytics job. Under Job Topology, select the Inputs option. Select Add Stream Input >Blob storage.

  2. Fill out the Blob Storage details with the following values:

    Field Value
    Input alias Give your input a name. Remember this alias for when you write your query.
    Subscription Select your subscription.
    Storage account Select the storage account you made in the previous step.
    Container Select the container you created in the previous step.
    Event serialization format CSV

  3. Select Save.

Configure the job output

The job sends results to the same blob storage where it gets input.

  1. Navigate to your Stream Analytics job. Under Job Topology, select the Outputs option. Select Add > Blob storage.

  2. Fill out the Blob Storage form with these values:

    Field Value
    Input alias Give your input a name. Remember this alias for when you write your query.
    Subscription Select your subscription.
    Storage account Select the storage account you made in the previous step.
    Container Select the container you created in the previous step.
    Event serialization format CSV

  3. Select Save.

Add the Studio (classic) function

Earlier you published a Studio (classic) model to a web service. In this scenario, when the Stream Analysis job runs, it sends each sample tweet from the input to the web service for sentiment analysis. The Studio (classic) web service returns a sentiment (positive, neutral, or negative) and a probability of the tweet being positive.

In this section, you define a function in the Stream Analysis job. The function can be invoked to send a tweet to the web service and get the response back.

  1. Make sure you have the web service URL and API key that you downloaded earlier in the Excel workbook.

  2. Navigate to your Stream Analytics job. Then select Functions > + Add > Azure ML Studio

  3. Fill out the Azure Machine Learning function form with the following values:

    Field Value
    Function alias Use the name sentiment and select Provide Azure Machine Learning function settings manually, which gives you an option to enter the URL and key.
    URL Paste the web service URL.
    Key Paste the API key.

  4. select Save.

Create a query to transform the data

Stream Analytics uses a declarative, SQL-based query to examine the input and process it. In this section, you create a query that reads each tweet from input and then invokes the Studio (classic) function to perform sentiment analysis. The query then sends the result to the output that you defined (blob storage).

  1. Return to the Stream Analytics job overview.

  2. Under Job Topology, select Query.

  3. Enter the following query:

    WITH sentiment AS (
SELECT text, sentiment1(text) as result
FROM <input>
)

SELECT text, result.[Score]
INTO <output>
FROM sentiment

    The query invokes the function you created earlier (sentiment) to perform sentiment analysis on each tweet in the input.

  4. select Save to save the query.

Start the Stream Analytics job and check the output

You can now start the Stream Analytics job.

Start the job

  1. Return to the Stream Analytics job overview.

  2. select Start at the top of the page.

  3. In Start job, select Custom, and then select one day prior to when you uploaded the CSV file to blob storage. When you're done, select Start.

Check the output

  1. Let the job run for a few minutes until you see activity in the Monitoring box.

  2. If you have a tool that you normally use to examine the contents of blob storage, use that tool to examine the container. Alternatively, do the following steps in the Azure portal:

    1. In the Azure portal, find your storage account, and within the account, find the container. You see two files in the container: the file that contains the sample tweets and a CSV file generated by the Stream Analytics job.
    2. Right-click the generated file and then select Download.

  3. Open the generated CSV file. You see something like the following example:

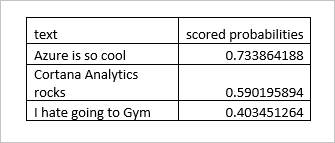

    Stream Analytics Machine Learning Studio (classic), CSV view

View metrics

You also can view Studio (classic) function-related metrics. The following function-related metrics are displayed in the Monitoring box of the job overview:

  • Function Requests indicates the number of requests sent to a Studio (classic) web service.
  • Function Events indicates the number of events in the request. By default, each request to a Studio (classic) web service contains up to 1,000 events.
