Run batch endpoints from Event Grid events in storage

  • Άρθρο

APPLIES TO: Azure CLI ml extension v2 (current) Python SDK azure-ai-ml v2 (current)

Event Grid is a fully managed service that you can use to easily manage events across many different Azure services and applications. The service simplifies the way that you build event-driven and serverless applications. This tutorial shows you how to trigger a batch endpoint's job to process files as soon as they're created in a storage account. The architecture uses a logic app workflow to subscribe to those events and trigger the endpoint.

The following diagram shows the architecture for this solution:

Conceptual diagram shows the components for this architecture.

The following steps describe the high-level steps in this solution:

  1. When a new blob is created in a specific storage account, a file created event is triggered.

  2. The event is sent to Event Grid to get processed to all the subscribers.

  3. The logic app workflow subscribes and listens to those events.

    The storage account can contain multiple data assets, so event filtering is applied to react only to events happening in a specific folder in the storage account. Further filtering can be done if needed, for example, based on file extensions.

  4. The logic app workflow triggers, and performs the following actions:

    1. Gets an authorization token to invoke batch endpoints using the credentials from a service principal.

    2. Triggers the batch endpoint (default deployment) using the newly created file as input.

  5. The batch endpoint returns the name of the job that was created to process the file.

Important

When you use a logic app workflow that connects with Event Grid to invoke batch endpoint, you generate one job per each blob file created in the storage account. Keep in mind that batch endpoints distribute the work at the file level, so no parallelization happens. Instead, you use the batch endpoints's capability to execute multiple jobs on the same compute cluster. If you need to run jobs on entire folders in an automatic fashion, we recommend that you to switch to Invoking batch endpoints from Azure Data Factory.

Prerequisites

  • You have a model correctly deployed as a batch endpoint. You can extend this architecture to work with Pipeline component deployments if needed.

  • Your batch deployment runs in a compute cluster called batch-cluster.

  • The logic app that you create communicates with Azure Machine Learning batch endpoints using REST.

    For more information about how to use the REST API for batch endpoints, see Create jobs and input data for batch endpoints.

Authenticate against batch endpoints

Azure Logic Apps can invoke the REST APIs of batch endpoints by using the HTTP action. Batch endpoints support Microsoft Entra ID for authorization and hence the request made to the APIs require a proper authentication handling.

This tutorial uses a service principal for authentication and interaction with batch endpoints in this scenario.

  1. Create a service principal by following Register an application with Microsoft Entra ID and create a service principal.

  2. Create a secret to use for authentication by following Option 3: Create a new client secret.

  3. Make sure to save the generated client secret Value, which appears only once.

  4. Make sure to save the client ID and the tenant id in the application's Overview pane.

  5. Grant your service principal access to your workspace by following Grant access. For this example, the service principal requires the following:

    • Permission in the workspace to read batch deployments and perform actions over them.
    • Permissions to read/write in data stores.

Enable data access

To indicate the input data that you want to send to the deployment job, this tutorial uses cloud URIs provided by Event Grid. Batch endpoints use the identity of the compute to mount the data, while keeping the identity of the job to read the mounted data. So, you have to assign a user-assigned managed identity to the compute cluster, and make sure the cluster has access to mount the underlying data. To ensure data access, follow these steps:

  1. Create a managed identity resource:

    IDENTITY=$(az identity create  -n azureml-cpu-cluster-idn  --query id -o tsv)

  2. Update the compute cluster to use the managed identity that we created:

    Note

    This examples assumes that you have a compute cluster created named cpu-cluster that is used for the default deployment in the endpoint.

    az ml compute update --name cpu-cluster --identity-type user_assigned --user-assigned-identities $IDENTITY

  3. In the Azure portal, make sure the managed identity has the correct permissions to read the data.

    To access storage services, you must have at least Storage Blob Data Reader access to the storage account. Only storage account owners can change your access level via the Azure portal.

Create a logic app

  1. In the Azure portal, on the Azure home page, select Create a resource.

  2. On the Azure Marketplace menu, select Integration > Logic App.

    Screenshot that shows Azure Marketplace menu with selected options for Integration and Logic App.

  3. On the Create Logic App pane, on the Basics tab, provide the following information about your logic app resource.

    Property Required Value Description
    Subscription Yes <Azure-subscription-name> Your Azure subscription name. This example uses Pay-As-You-Go.
    Resource Group Yes LA-TravelTime-RG The Azure resource group where you create your logic app resource and related resources. This name must be unique across regions and can contain only letters, numbers, hyphens (-), underscores (_), parentheses ((, )), and periods (.).
    Name Yes LA-TravelTime Your logic app resource name, which must be unique across regions and can contain only letters, numbers, hyphens (-), underscores (_), parentheses ((, )), and periods (.).

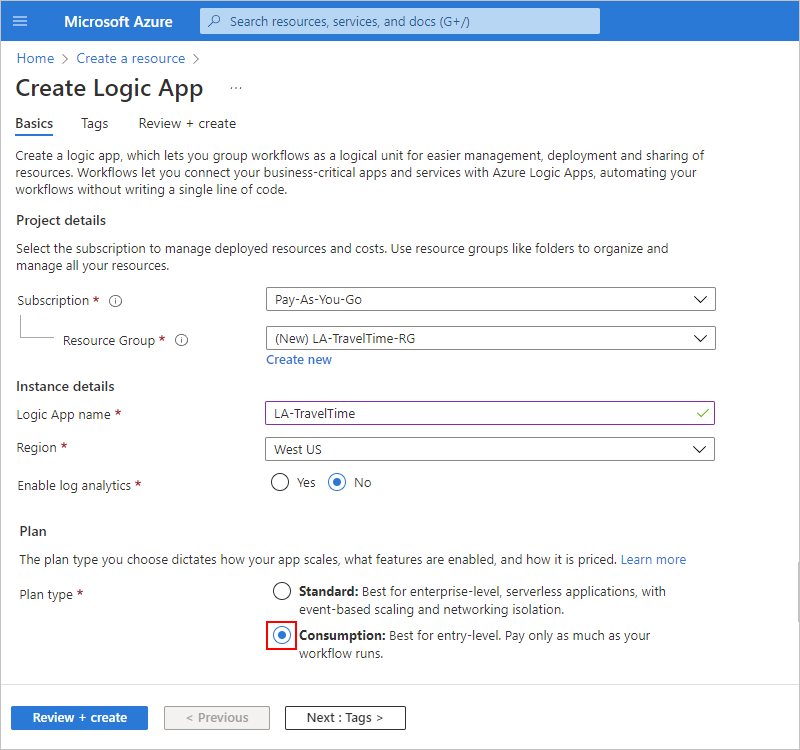

    Screenshot showing Azure portal, logic app creation pane, and info for new logic app resource.

  4. Before you continue making selections, go to the Plan section. For Plan type, select Consumption to show only the settings for a Consumption logic app workflow, which runs in multitenant Azure Logic Apps.

    Important

    For private-link enabled workspaces, you need to use the Standard plan for Azure Logic Apps with allow private networking configuration.

    The Plan type property also specifies the billing model to use.

    Plan type Description
    Standard This logic app type is the default selection and runs in single-tenant Azure Logic Apps and uses the Standard pricing model.
    Consumption This logic app type runs in global, multitenant Azure Logic Apps and uses the Consumption pricing model.

  5. Now continue with the following selections:

    Property Required Value Description
    Region Yes West US The Azure datacenter region for storing your app's information. This example deploys the sample logic app to the West US region in Azure.
    Enable log analytics Yes No This option appears and applies only when you select the Consumption logic app type. Change this option only when you want to enable diagnostic logging. For this tutorial, keep the default selection.

  6. When you're done, select Review + create. After Azure validates the information about your logic app resource, select Create.

  7. After Azure deploys your app, select Go to resource.

    Azure opens the workflow designer for your logic app.

Configure the workflow parameters

This logic app workflow uses parameters to store specific pieces of information that you need to run the batch deployment.

  1. On the workflow designer toolbar, select Parameters.

    Screenshot shows Parameters pane for defining parameters required for the workflow.

  2. On the Parameters pane, select Create parameter, and provide the following information about each parameter to create:

    Tip

    Use the values configured at Authenticating against batch endpoints.

    Parameter name Description Sample value
    tenant_id The tenant ID where the endpoint is deployed. 00000000-0000-0000-00000000
    client_id The client ID for the service principal used to invoke the endpoint. 00000000-0000-0000-00000000
    client_secret The client secret of the service principal used to invoke the endpoint. ABCDEFGhijkLMNOPQRstUVwz
    endpoint_uri The endpoint scoring URI.

    Important: This URI is for the endpoint that you want to execute. The endpoint must have a default deployment configured.    		 https://<endpoint_name>.<region>.inference.ml.azure.com/jobs

    The following example shows a sample parameter:

    Screenshot shows how to add one parameter in designer.

    For more information, see Create cross-environment parameters for workflow inputs in Azure Logic Apps.

Add the trigger

We want to trigger the logic app workflow each time a new file is created in a specific folder (data asset) of a storage account. The logic app uses the information from the event to invoke the batch endpoint and pass the specific file to process.

  1. On the workflow designer, follow these general steps to add an Event Grid trigger named When a resource event occurs.

  2. In the connection information box, select the authentication type to use, and then select Sign in.

  3. In the trigger box, provide the following information:

    Property Value Description
    Resource Type Microsoft.Storage.StorageAccounts The resource type emitting the events.
    Subscription Your subscription name The subscription for the storage account.
    Resource Name Your storage account name The name of the storage account where the files are generated.
    Event Type Item Microsoft.Storage.BlobCreated The event type.

  4. From the Advanced parameters list, select Prefix Filter, and provide the following value:

    /blobServices/default/containers/<container-name>/blobs/<path-to-data-folder>

    Important

    The Prefix Filter property allows Event Grid to only notify the workflow when a blob is created in the specific path we indicated. In this case, we assume that files are created by some external process in the folder specified by <path-to-data-folder> inside the container <container-name>, which is in the selected storage account. Configure this parameter to match the location of your data. Otherwise, the event is fired for any file created at any location of the storage account. For more information, see Event filtering for Event Grid.

    The following example shows how the trigger appears:

    Screenshot of the trigger activity of the logic app.

Configure the actions

  1. Under the When a resource event occurs trigger, follow these general steps to add the HTTP action. Rename the action to Authorize.

  2. In the Authorize action, provide the following information:

    Property Value Notes
    Method POST The HTTP method
    URI concat('https://login.microsoftonline.com/', parameters('tenant_id'), '/oauth2/token') To enter this expression, select inside the URI box. From the options that appear, select the expression editor (formula icon).
    Headers Content-Type with value application/x-www-form-urlencoded
    Body concat('grant_type=client_credentials&client_id=', parameters('client_id'), '&client_secret=', parameters('client_secret'), '&resource=https://ml.azure.com') To enter this expression, select inside the Body box. From the options that appear, select the expression editor (formula icon).

    The following example shows a sample Authorize action:

    Screenshot shows sample Authorize action in the logic app workflow.

  3. Under the Authorize action, add another HTTP action, and rename the title to Invoke.

  4. In the Invoke action, provide the following information:

    Property Value Notes
    Method POST The HTTP method
    URI endpoint_uri Select inside the URI box, and then under Parameters, select endpoint_uri.
    Headers Content-Type with value application/json
    Headers Authorization with value concat('Bearer ', body('Authorize')['access_token']) To enter this expression, select inside the Headers box. From the options that appear, select the expression editor (formula icon).

  5. Select inside the Body box, and from the options that appear, select the expression editor (formula icon) to enter the following expression:

    replace('{
 "properties": {
   "InputData": {
     "mnistinput": {
        "JobInputType" : "UriFile",
        "Uri" : "<JOB_INPUT_URI>"
     }
   }
  }
}', '<JOB_INPUT_URI>', triggerBody()?[0]['data']['url'])

    Tip

    The previous payload corresponds to a Model deployment. If you're working with a Pipeline component deployment, adapt the format according to the expectations of the pipeline's inputs. For more information about how to structure the input in REST calls, see Create jobs and input data for batch endpoints (REST).

    The following example shows a sample Invoke action:

    Screenshot shows sample Invoke action in the logic app workflow.

    Note

    The Invoke action triggers the batch job, but the action won't wait for its completion. By default, Azure Logic Apps isn't set up for long-running applications. If you need to wait for the job to complete, we recommend you to switch to Run batch endpoints from Azure Data Factory.

  6. When you're done, save your workflow.

    The logic app workflow is ready to execute and automatically triggers each time a new file is created under the indicated path.

  7. To confirm that the app successfully received an event, check the app's Runs history:

    Screenshot shows run history for the logic app workflow.
