Azure SQL and Microsoft SQL Server Microsoft Graph connectors

The Microsoft SQL Server or Azure SQL Microsoft Graph connectors allow your organization to discover and index data from an on-premises SQL Server database, or a database hosted in your Azure SQL instance in the cloud. The connector indexes specified content in Microsoft Search and Microsoft 365 Copilot. To keep the index up to date with source data, it supports periodic full and incremental crawls. With these SQL connectors, you can also restrict access to search results for certain users.

This article is for Microsoft 365 administrators or anyone who configures, runs, and monitors an Azure SQL or a Microsoft SQL server Microsoft Graph connector.

Capabilities

• Index records from your MS SQL server or Azure SQL database using a SQL query.
• Specify access permissions for every record with list of users or groups added in SQL query.
• Enable your end users to ask questions related to indexed records in Copilot.
• Use Semantic search in Copilot to enable users to find relevant content based on keywords, personal preferences, and social connections.

Limitations

• Microsoft SQL Server connector: The on-premises database must run SQL Server version 2008 or later.
• Azure SQL connector: The Microsoft 365 subscription and Azure subscription (hosting Azure SQL database) must lie within the same Microsoft Entra ID. Cross-tenant data flow isn't supported.
• To support high crawl speed and better performance, the connector is built to support OLTP (Online Transaction Processing) workloads only. OLAP (Online Analytical Processing) workloads which don't execute the provided SQL query in 40-seconds timeout and aren't supported.
• ACLs are only supported by using a User Principal Name (UPN), Microsoft Entra ID, or Active Directory Security.
• Indexing rich content inside database columns isn't supported. Examples of such content are HTML, JSON, XML, blobs, and document parsings that exist as links inside the database columns.

Prerequisites

• You must be the search admin for your organization's Microsoft 365 tenant.
• Install the Microsoft Graph connector agent (only applicable for MS SQL connector): To access your Microsoft SQL Server, you must install and configure the connector agent. See Install the Microsoft Graph connector agent to learn more.
• Service Account: To connect to your SQL database and allow Microsoft Graph Connector to update records regularly, you need a service account with read permissions granted to the service account.

Note

If you use Windows authentication while configuring the Microsoft SQL Server connector, the user with which you're trying to sign in needs to have interactive login rights to the machine where the connector agent is installed. For more information, see login policy management.

Get Started with Setup

1. Display name

A display name is used to identify each citation in Copilot, helping users easily recognize the associated file or item. Display name also signifies trusted content. Display name is also used as a content source filter. A default value is present for this field, but you can customize it to a name that users in your organization recognize.

2. SQL server

To connect to your SQL data, you need your SQL server address and database name.

3. Authentication Type

Azure SQL connector only supports Microsoft Entra ID OpenID Connect (OIDC) authentication to connect to the database.

Register an app (for Azure SQL Microsoft Graph connector only)

For Azure SQL connector, you must register an app in Microsoft Entra ID to allow the Microsoft Search app and Microsoft 365 Copilot to access data for indexing. To learn more about registering an app, refer to the Microsoft Graph documentation on how to register an app.

After completing the app registration and taking note of the app name, application (client) ID, and tenant ID, you need to generate a new client secret. The client is only displayed once. Remember to note & store the client secret securely. Use the client ID and client secret while configuring a new connection in Microsoft Search and Microsoft 365 Copilot.

To add the registered app to your Azure SQL Database, you need to:

1. Log in to your Azure SQL DB.
2. Open a new query window.
3. Create a new user by running the command 'CREATE USER [app name] FROM EXTERNAL PROVIDER'.
4. Add the user to the role by running the command 'exec sp_addrolemember 'db_datareader', [app name]' or 'ALTER ROLE db_datareader ADD MEMBER [app name]'.

To learn more about revoking access to any app registered in Microsoft Entra ID, see removing a registered app.

Firewall settings (for Azure SQL Microsoft Graph connector only)

For added security, you may configure IP firewall rules for your Azure SQL Server or database. To learn more about setting up IP firewall rules, refer to the documentation on IP firewall rules. Add the following client IP ranges in the firewall settings.

Region	Microsoft 365 Enterprise	Microsoft 365 Government
NAM	52.250.92.252/30, 52.224.250.216/30	52.245.230.216/30, 20.141.117.64/30
EUR	20.54.41.208/30, 51.105.159.88/30	NA
APC	52.139.188.212/30, 20.43.146.44/30	NA

4. Roll out to limited audience

Deploy this connection to a limited user base if you want to validate it in Copilot and other Search surfaces before expanding the roll-out to a broader audience. To know more about limited rollout, click here.

Content

To search your database content, you must specify SQL queries when you configure the connector. These SQL queries need to name all the database columns that you want to index (source properties). This includes any SQL joins that need to be performed to get all the columns. To restrict access to search results, you must specify Access Control Lists (ACLs) within SQL queries when you configure the connector.

1. Full crawl (Required)

a. Select data columns (Required) and ACL columns (Optional)

[Click to expand] Selecting data columns for full crawl query.

In this step, you configure the SQL query that runs a full crawl of the database. The full crawl selects all the columns or properties which need to be presented in Microsoft Copilot or Search. You can also specify ACL columns to restrict access to search results to specific users or groups.

Tip

To get all the columns that you need, you can join multiple tables.

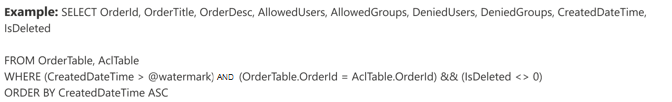

The example demonstrates a selection of five data columns that hold the data for the search: OrderId, OrderTitle, OrderDesc, CreatedDateTime, and IsDeleted. To set view permissions for each row of data, you can optionally select these ACL columns: AllowedUsers, AllowedGroups, DeniedUsers, and DeniedGroups. All these data columns also have the options to Query, Search, Retrieve, or Refine.

Select data columns as shown in this example query: SELECT orderId, orderTitle, orderDesc, allowedUsers, allowedGroups, deniedUsers, deniedGroups, createdDateTime, isDeleted

The SQL connectors don't allow column names with nonalphanumeric characters in the SELECT clause. Remove any nonalphanumeric characters from column names using an alias. Example - SELECT column_name AS columnName

To manage access to the search results, you can specify one or more ACL columns in the query. The SQL connector allows you to control access at per record level. You can choose to have the same access control for all records in a table. If the ACL information is stored in a separate table, you might have to do a join with those tables in your query.

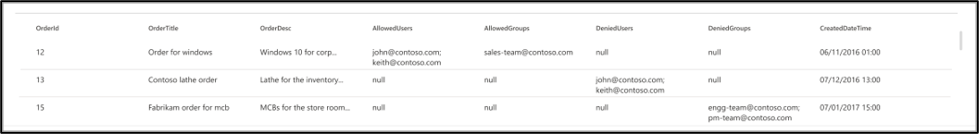

The use of each of the ACL columns in the above query is described below. The following list explains the four access control mechanisms.

• AllowedUsers: This column specifies the list of user IDs who can access the search results. In the following example, a list of users: john@contoso.com, keith@contoso.com, and lisa@contoso.com would only have access to a record with OrderId = 12.
• AllowedGroups: This column specifies the group of users who will be able to access the search results. In the following example, group sales-team@contoso.com would only have access to record with OrderId = 12.
• DeniedUsers: This column specifies the list of users who do not have access to the search results. In the following example, users john@contoso.com and keith@contoso.com don't have access to the record with OrderId = 13, whereas everyone else has access to this record.
• DeniedGroups: This column specifies the group of users who do not have access to the search results. In the following example, groups engg-team@contoso.com and pm-team@contoso.com don't have access to a record with OrderId = 15, whereas everyone else has access to this record.

b. Supported data types

[Click to expand] List of supported data types.

The table summarizes the SQL data types that are supported in the MS SQL and Azure SQL connectors. The table also summarizes the indexing data type for the supported SQL data type. To learn more about Microsoft Graph connectors supported data types for indexing, refer to the documentation on property resource types.

Category	Source data type	Indexing data type
Date and time	date datetime datetime2 smalldatetime	datetime
Exact numeric	bigint int smallint tinyint	int64
Exact numeric	bit	boolean
Approximate numeric	float real	double
Character string	char varchar text	string
Unicode character strings	nchar nvarchar ntext	string
String collection	char varchar text	stringcollection*
Other data types	uniqueidentifier	string

*To index a column as StringCollection, you need to cast a string to the string collection type. This can be done by clicking the 'Edit datatypes' link in Full crawl settings and selecting the appropriate columns as StringCollection along with specifying a delimiter to split the string.

For any other data type currently not directly supported, the column needs to be explicitly cast to a supported data type.

c. Watermark (Required)

[Click to expand] Specifying the watermark column in full crawl query

To prevent overloading the database, the connector batches and resumes full-crawl queries with a full-crawl watermark column. Using the value of the watermark column, each subsequent batch is fetched, and querying is resumed from the last checkpoint. Essentially this mechanism controls data refresh for full crawls.

Create query snippets for watermarks as shown in these examples:

• WHERE (CreatedDateTime > @watermark). Cite the watermark column name with the reserved keyword @watermark. If the sort order of the watermark column is ascending, use >; otherwise, use <.
• ORDER BY CreatedDateTime ASC. Sort on the watermark column in ascending or descending order.

In the configuration shown in the following image, CreatedDateTime is the selected watermark column. To fetch the first batch of rows, specify the data type of the watermark column. In this case, the data type is DateTime.

The first query fetches the first N number of rows by using: "CreatedDateTime > January 1, 1753 00:00:00" (min value of DateTime data type). After the first batch is fetched, the highest value of CreatedDateTime returned in the batch is saved as the checkpoint if the rows are sorted in ascending order. An example is March 1, 2019 03:00:00. Then the next batch of N rows is fetched by using "CreatedDateTime > March 1, 2019 03:00:00" in the query.

2. Manage properties

The SQL connector picks up all columns specified in the full crawl SQL query as source properties for ingestion. In this step, you can define the search schema for your content. This involves defining the search annotations like search, retrieve, query, and refine for selected source properties. This also includes assigning semantic labels and aliases to enhance search relevance. To learn more about search schema, refer to the documentation on guidelines for 'manage properties'.

3. Incremental crawl (optional)

a. Incremental sync query

In this optional step, provide a SQL query to run an incremental crawl of the database. With this query, the SQL connector determines any changes to the data since the last incremental crawl. As in the full crawl, select all columns where you want to select the options Query, Search, Retrieve or Refine. Specify the same set of ACL columns that you specified in the full crawl query.

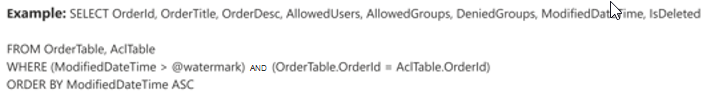

The components in the following image resemble the full crawl components with one exception. In this case, "ModifiedDateTime" is the selected watermark column. Review the full crawl steps to learn how to write your incremental crawl query and see the following image as an example.

b. Soft delete instructions (Optional)

In a SQL record system, a soft delete is a technique where, instead of physically removing a record from a database, you mark it as "deleted" by setting a specific flag or column. This allows the record to remain in the database, but it's logically excluded from most operations. To delete soft-deleted rows in your database during incremental crawl, specify the soft-delete column name and value that indicates the row is deleted.

Users

You can choose to use the Only people with access to this data source to restrict access to users or groups as selected in full crawl query or you can override them to make your content visible to Everyone.

1. Map columns containing access permissions information

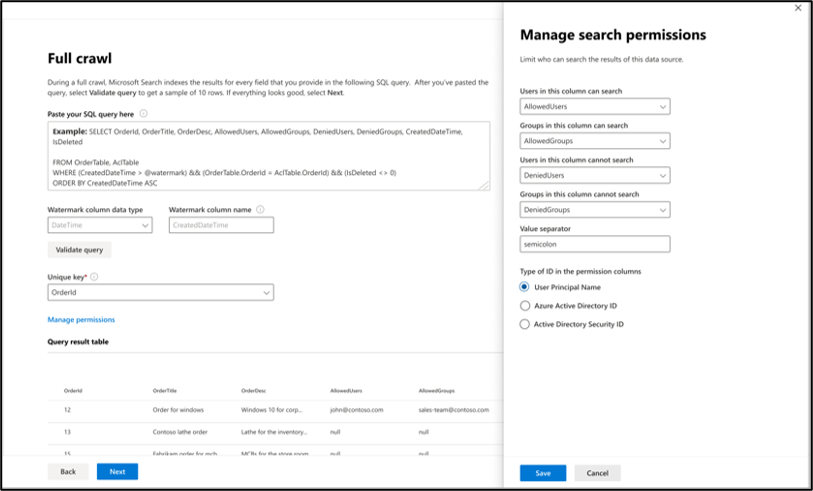

Choose the various access control (ACL) columns that specify the access control mechanism. Select the column name you specified in the full crawl SQL query. Note that "deny" takes precedence over "allow" permissions.

Each of the ACL columns is expected to be a multi-valued column. These multiple ID values can be separated by separators such as semicolon (;), comma (,), and so on. You need to specify this separator in the value separator field.

The following ID types are supported for use as ACLs:

• User Principal Name (UPN): A User Principal Name (UPN) is the name of a system user in an email address format. A UPN (for example: john.doe@domain.com) consists of the username (login name), separator (the @ symbol), and domain name (UPN suffix).
• Microsoft Entra ID: In Microsoft Entra ID, every user or group has an object ID that looks something like 'e0d3ad3d-0000-1111-2222-3c5f5c52ab9b'.
• Active Directory (AD) Security ID: In an on-premises AD setup, every user and group have an immutable, unique security identifier that looks something like 'S-1-5-21-3878594291-2115959936-132693609-65242.'

Sync

The refresh interval determines how often your data is synced between the data source and the Graph connector index.

You can configure full and incremental crawls based on the scheduling options present here. By default, incremental crawl (if configured) is set for every 15 minutes, and full crawl is set for every day. If needed, you can adjust these schedules to fit your data refresh needs.

At this point, you're ready to create the connection for Azure SQL or MS SQL. You can click on the "Create" button to publish your connection and index data from your database.

Troubleshooting

After publishing your connection, you can review the status under the Data sources tab in the admin center. To learn how to make updates and deletions, see Manage your connector. You can find troubleshooting steps for commonly seen issues here.

If you have issues or want to provide feedback, contact Microsoft Graph | Support.
