Sample charts

  • Článek

This article contains sample charts along with the respective data description and presentation XML strings. You can specify the:

  • Data description XML string for a chart using the SavedQueryVisualization.DataDescription or UserQueryVisualization.DataDescription for the organization-owned or user-owned chart respectively.
  • Presentation description XML string for a chart using the SavedQueryVisualization.PresentationDescription or UserQueryVisualization. PresentationDescription for the organization-owned or user-owned chart respectively.

Column chart

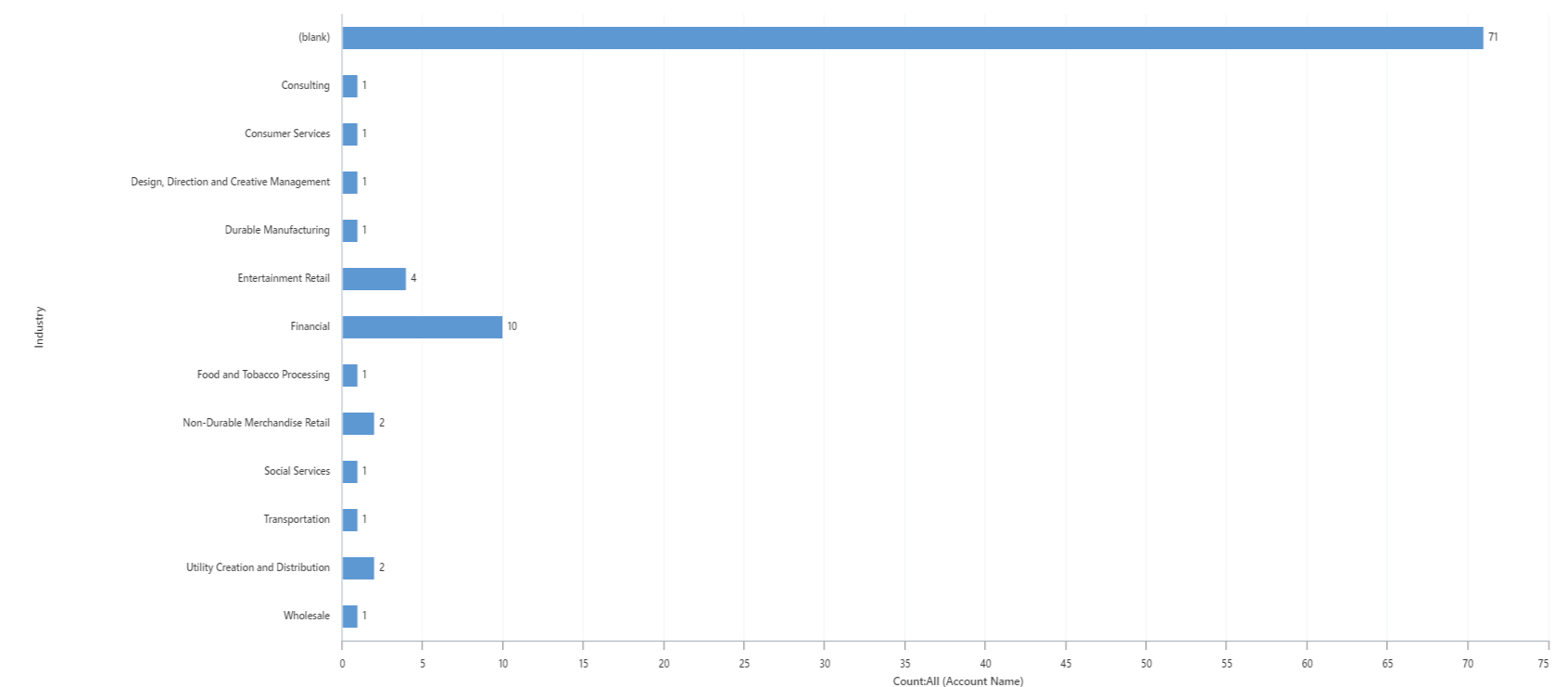

The following image is a column chart that shows the account by industry. We modified the presentation description of the existing Account By Industry default chart available in model-driven apps for the Account table to change it to a column chart.

Sample column chart: Accounts by Industry.

Column chart data description

The following example is the contents of the data description XML string for this chart.

<datadefinition>
  <fetchcollection>
    <fetch mapping="logical"
      aggregate="true">
      <entity name="account">
        <attribute groupby="true"
          alias="groupby_column"
          name="industrycode" />
        <attribute alias="aggregate_column"
          name="name"
          aggregate="count" />
      </entity>
    </fetch>
  </fetchcollection>
  <categorycollection>
    <category>
      <measurecollection>
        <measure alias="aggregate_column" />
      </measurecollection>
    </category>
  </categorycollection>
</datadefinition>

Column chart presentation description

The following example is the contents of the presentation description XML string for this chart.

<Chart>
  <Series>
    <Series ChartType="Column"
      IsValueShownAsLabel="True"
      Color="91, 151, 213"
      BackSecondaryColor="112, 142, 50"
      Font="{0}, 9.5px"
      LabelForeColor="59, 59, 59"
      CustomProperties="PointWidth=0.75, MaxPixelPointWidth=40">
      <SmartLabelStyle Enabled="True" />
    </Series>
  </Series>
  <ChartAreas>
    <ChartArea BorderColor="White"
      BorderDashStyle="Solid">
      <AxisY LabelAutoFitMinFontSize="8"
        TitleForeColor="59, 59, 59"
        TitleFont="{0}, 10.5px"
        LineColor="165, 172, 181"
        IsReversed="False">
        <MajorGrid LineColor="239, 242, 246" />
        <LabelStyle Font="{0}, 10.5px"
          ForeColor="59, 59, 59" />
      </AxisY>
      <AxisX LabelAutoFitMinFontSize="8"
        TitleForeColor="59, 59, 59"
        TitleFont="{0}, 10.5px"
        LineColor="165, 172, 181"
        IsReversed="False">
        <MajorGrid Enabled="False" />
        <MajorTickMark Enabled="False" />
        <LabelStyle Font="{0}, 10.5px"
          ForeColor="59, 59, 59" />
      </AxisX>
    </ChartArea>
  </ChartAreas>
  <Titles>
    <Title Name="Chart Title"
      DockingOffset="-3"
      Font="{0}, 13px"
      ForeColor="59, 59, 59"
      Alignment="TopLeft" />
  </Titles>
</Chart>

Bar chart

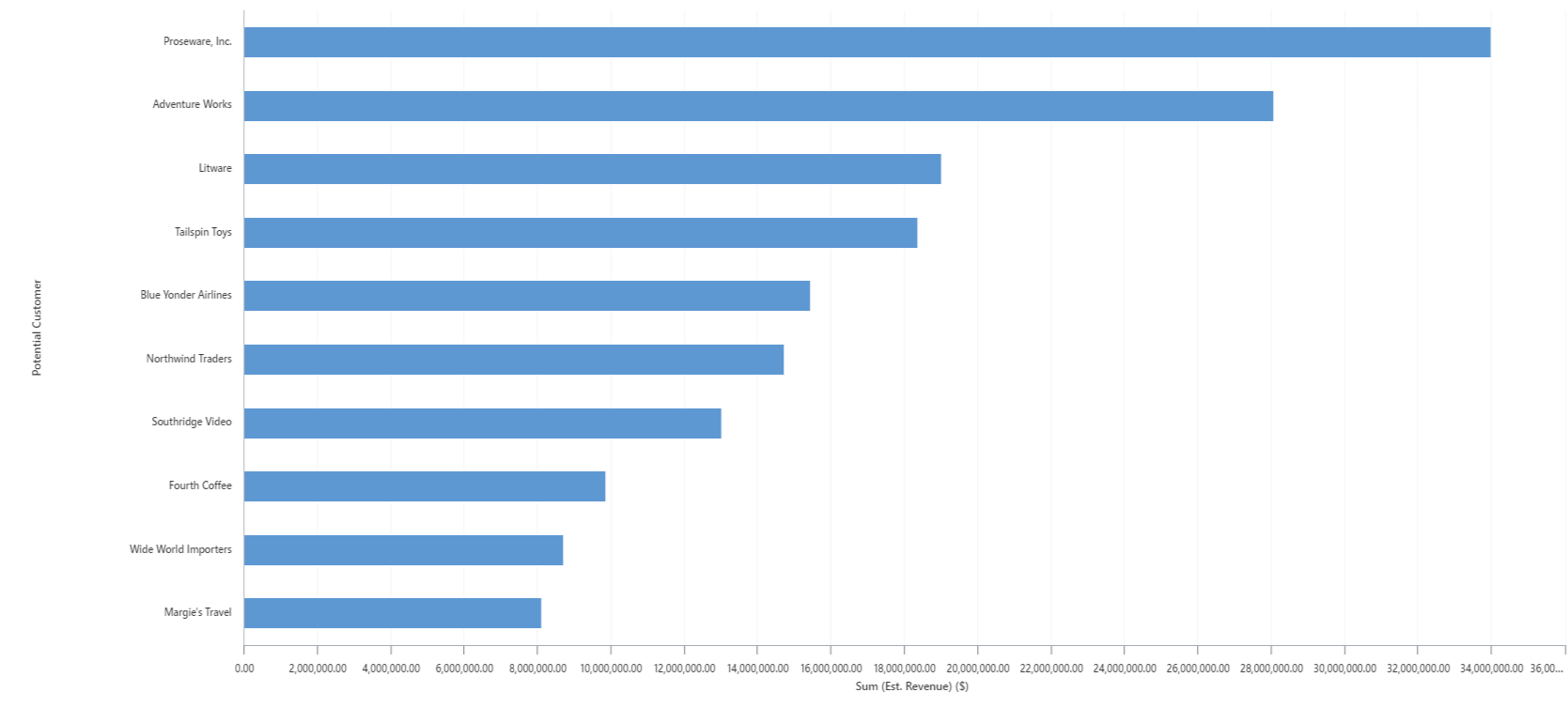

The following image is a bar chart that shows the top 10 customers. Bar chart is one of the default charts available in model-driven apps for the Opportunity table.

Sample bar chart: Top 10 Customers.

Bar chart data description

The following example is the contents of the data description XML string for this chart.

<datadefinition>
  <fetchcollection>
    <fetch mapping="logical"
      count="10"
      aggregate="true">
      <entity name="opportunity">
        <attribute name="estimatedvalue"
          aggregate="sum"
          alias="sum_estimatedvalue" />
        <attribute name="customerid"
          groupby="true"
          alias="customerid" />
        <order alias="sum_estimatedvalue"
          descending="true" />
      </entity>
    </fetch>
  </fetchcollection>
  <categorycollection>
    <category>
      <measurecollection>
        <measure alias="sum_estimatedvalue" />
      </measurecollection>
    </category>
  </categorycollection>
</datadefinition>

Bar chart presentation description

The following example is the contents of the presentation description XML string for this chart.

<Chart>
  <Series>
    <Series ChartType="Bar"
      IsValueShownAsLabel="False"
      Color="91, 151, 213"
      BackSecondaryColor="112, 142, 50"
      Font="{0}, 9.5px"
      LabelForeColor="59, 59, 59"
      CustomProperties="PointWidth=0.75, MaxPixelPointWidth=40">
      <SmartLabelStyle Enabled="True" />
    </Series>
  </Series>
  <ChartAreas>
    <ChartArea BorderColor="White"
      BorderDashStyle="Solid">
      <AxisY LabelAutoFitMinFontSize="8"
        TitleForeColor="59, 59, 59"
        TitleFont="{0}, 10.5px"
        LineColor="165, 172, 181"
        IsReversed="False">
        <MajorGrid LineColor="239, 242, 246" />
        <LabelStyle Font="{0}, 10.5px"
          ForeColor="59, 59, 59" />
      </AxisY>
      <AxisX LabelAutoFitMinFontSize="8"
        TitleForeColor="59, 59, 59"
        TitleFont="{0}, 10.5px"
        LineColor="165, 172, 181"
        IsReversed="False">
        <MajorGrid Enabled="False" />
        <MajorTickMark Enabled="False" />
        <LabelStyle Font="{0}, 10.5px"
          ForeColor="59, 59, 59" />
      </AxisX>
    </ChartArea>
  </ChartAreas>
  <Titles>
    <Title DockingOffset="-3"
      Font="{0}, 13px"
      ForeColor="59, 59, 59"
      Alignment="TopLeft" />
  </Titles>
</Chart>

Area chart

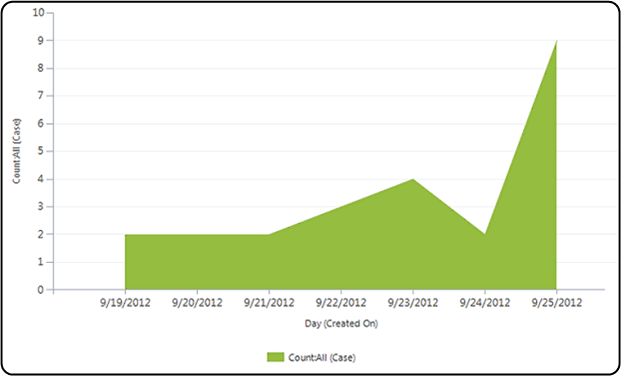

The following image is an area chart that shows the number of records generated between a given date range.

Sample area chart.

Area chart data description

The following example is the contents of the data description XML string for this chart.

<datadefinition>
  <fetchcollection>
    <fetch mapping="logical"
      aggregate="true">
      <entity name="incident">
        <order alias="groupby_column"
          descending="false" />
        <attribute alias="aggregate_column"
          name="incidentid"
          aggregate="count" />
        <attribute groupby="true"
          alias="groupby_column"
          dategrouping="day"
          name="createdon" />
        <attribute groupby="true"
          alias="groupby_priority"
          name="prioritycode" />
      </entity>
    </fetch>
  </fetchcollection>
  <categorycollection>
    <category>
      <measurecollection>
        <measure alias="aggregate_column" />
      </measurecollection>
    </category>
  </categorycollection>
</datadefinition>

Area chart presentation description

The following example is the contents of the presentation description XML for this chart.

<Chart Palette="None"
  PaletteCustomColors="91,151,213; 237,125,49; 160,116,166; 255,192,0; 68,114,196; 112,173,71; 37,94,145; 158,72,14; 117,55,125; 153,115,0; 38,68,120; 67,104,43; 124,175,221; 241,151,90; 186,144,192; 255,205,51; 105,142,208; 140,193,104; 50,125,194; 210,96,18; 150,83,159; 204,154,0; 51,90,161; 90,138,57;">
  <Series>
    <Series ChartType="StackedColumn"
      Font="{0}, 9.5px"
      LabelForeColor="59, 59, 59"
      CustomProperties="PointWidth=0.75, MaxPixelPointWidth=40" />
  </Series>
  <ChartAreas>
    <ChartArea BorderColor="White"
      BorderDashStyle="Solid">
      <AxisY LabelAutoFitMinFontSize="8"
        TitleForeColor="59, 59, 59"
        TitleFont="{0}, 10.5px"
        LineColor="165, 172, 181"
        IntervalAutoMode="VariableCount">
        <MajorGrid LineColor="239, 242, 246" />
        <MajorTickMark LineColor="165, 172, 181" />
        <LabelStyle Font="{0}, 10.5px"
          ForeColor="59, 59, 59" />
      </AxisY>
      <AxisX LabelAutoFitMinFontSize="8"
        TitleForeColor="59, 59, 59"
        TitleFont="{0}, 10.5px"
        LineColor="165, 172, 181"
        IntervalAutoMode="VariableCount">
        <MajorGrid Enabled="False" />
        <MajorTickMark Enabled="False" />
        <LabelStyle Font="{0}, 10.5px"
          ForeColor="59, 59, 59" />
      </AxisX>
    </ChartArea>
  </ChartAreas>
  <Titles>
    <Title Alignment="TopLeft"
      DockingOffset="-3"
      Font="{0}, 13px"
      ForeColor="0, 0, 0" />
  </Titles>
</Chart>

Line chart

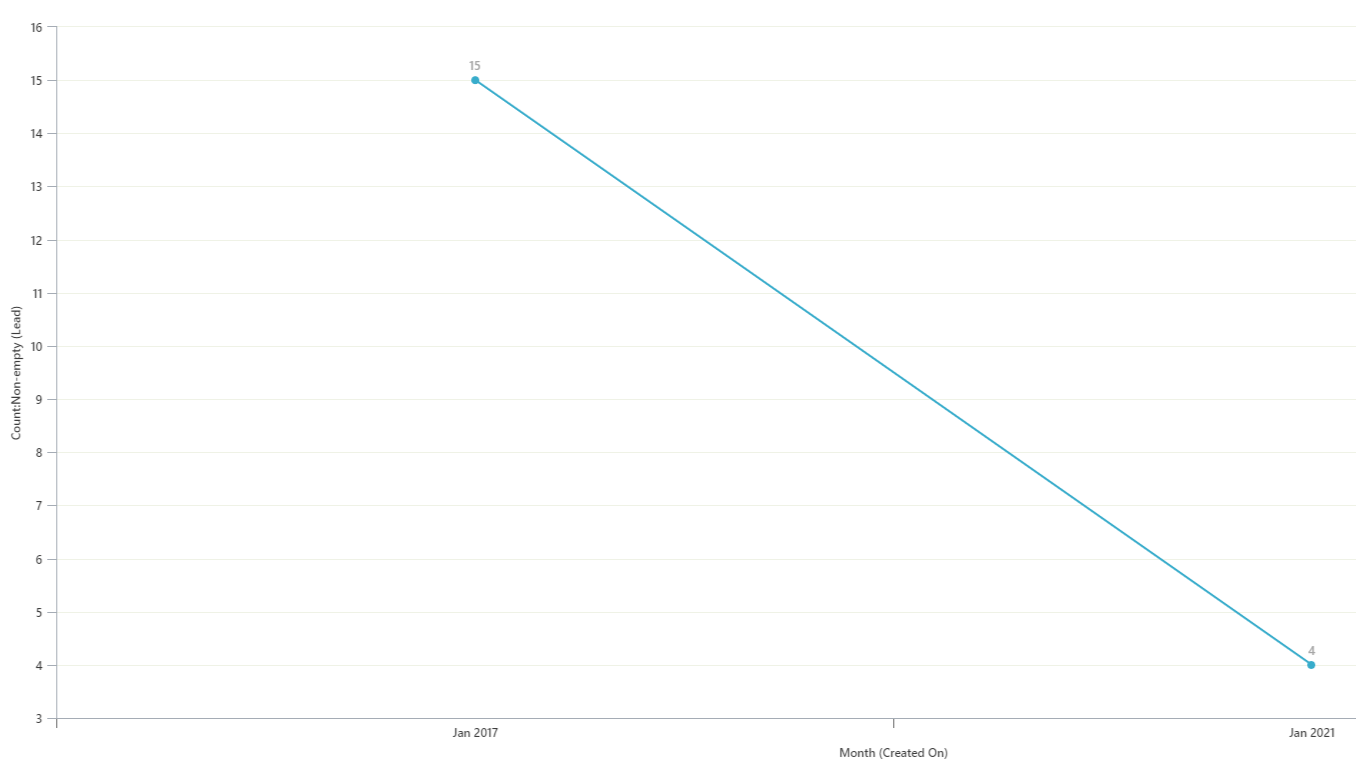

The following image is a line chart that shows the number of leads generated in the last five months. Line chart is one of the default charts available in model-driven apps for the Lead table.

Sample line chart: Lead Generation Rate.

Line chart data description

The following example is the contents of the data description XML string for this chart.

<datadefinition>
  <fetchcollection>
    <fetch mapping="logical"
      count="5"
      aggregate="true">
      <entity name="lead">
        <attribute name="leadid"
          aggregate="countcolumn"
          alias="count_leadid" />
        <attribute name="createdon"
          groupby="true"
          dategrouping="month"
          usertimezone="false"
          alias="createdon" />
        <order alias="createdon"
          descending="false" />
      </entity>
    </fetch>
  </fetchcollection>
  <categorycollection>
    <category>
      <measurecollection>
        <measure alias="count_leadid" />
      </measurecollection>
    </category>
  </categorycollection>
</datadefinition>

Line chart presentation description

The following example is the contents of the presentation description XML string for this chart.

<Chart>
  <Series>
    <Series IsValueShownAsLabel="True"
      BorderWidth="3"
      ChartType="Line"
      Color="49, 171, 204"
      MarkerStyle="Square"
      MarkerSize="9"
      MarkerColor="37, 128, 153" />
  </Series>
  <ChartAreas>
    <ChartArea BorderColor="White">
      <AxisY LabelAutoFitMinFontSize="8"
        TitleForeColor="59, 59, 59"
        TitleFont="{0}, 10.5px"
        LineColor="165, 172, 181">
        <MajorGrid LineColor="239, 242, 230" />
        <MajorTickMark LineColor="165, 172, 181" />
        <LabelStyle Font="{0}, 10.5px"
          ForeColor="59, 59, 59" />
      </AxisY>
      <AxisX LabelAutoFitMinFontSize="8"
        TitleForeColor="59, 59, 59"
        TitleFont="{0}, 10.5px"
        LineColor="165, 172, 181">
        <MajorGrid Enabled="False" />
        <LabelStyle Font="{0}, 10.5px"
          ForeColor="59, 59, 59" />
      </AxisX>
    </ChartArea>
  </ChartAreas>
  <Titles>
    <Title DockingOffset="-3"
      Font="{0}, 13px"
      ForeColor="59, 59, 59"
      Alignment="TopLeft" />
  </Titles>
</Chart>

Pie chart

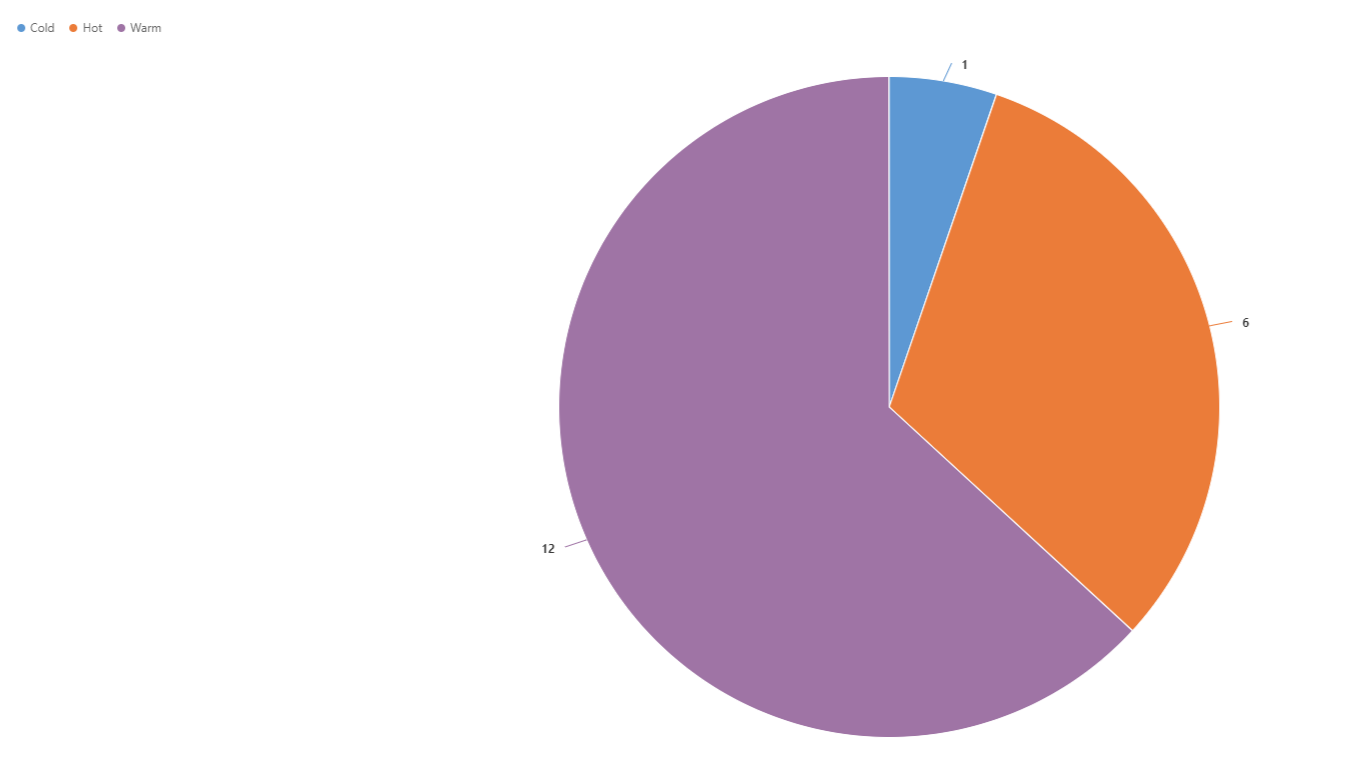

The following image is a pie chart that shows the total number of leads and their importance. Pie chart is one of the default charts available in model-driven apps for the Lead table.

Sample pie chart: Leads by Rating.

Pie chart data description

The following example is the contents of the data description XML string for this chart.

<datadefinition>
  <fetchcollection>
    <fetch mapping="logical"
      aggregate="true">
      <entity name="lead">
        <attribute groupby="true"
          alias="groupby_column"
          name="leadqualitycode" />
        <attribute alias="aggregate_column"
          name="fullname"
          aggregate="count" />
      </entity>
    </fetch>
  </fetchcollection>
  <categorycollection>
    <category>
      <measurecollection>
        <measure alias="aggregate_column" />
      </measurecollection>
    </category>
  </categorycollection>
</datadefinition>

Pie chart presentation description

The following example is the contents of the presentation description XML string for this chart.

<Chart Palette="None"
  PaletteCustomColors="91,151,213; 237,125,49; 160,116,166; 255,192,0; 68,114,196; 112,173,71; 37,94,145; 158,72,14; 117,55,125; 153,115,0; 38,68,120; 67,104,43; 124,175,221; 241,151,90; 186,144,192; 255,205,51; 105,142,208; 140,193,104; 50,125,194; 210,96,18; 150,83,159; 204,154,0; 51,90,161; 90,138,57;">
  <Series>
    <Series ShadowOffset="0"
      IsValueShownAsLabel="true"
      Font="{0}, 9.5px"
      LabelForeColor="59, 59, 59"
      CustomProperties="PieLabelStyle=Inside, PieDrawingStyle=Default"
      ChartType="pie">
      <SmartLabelStyle Enabled="True" />
    </Series>
  </Series>
  <ChartAreas>
    <ChartArea>
      <Area3DStyle Enable3D="false" />
    </ChartArea>
  </ChartAreas>
  <Legends>
    <Legend Alignment="Center"
      LegendStyle="Table"
      Docking="right"
      Font="{0}, 11px"
      ShadowColor="0, 0, 0, 0"
      ForeColor="59, 59, 59" />
  </Legends>
  <Titles>
    <Title Alignment="TopLeft"
      DockingOffset="-3"
      Font="{0}, 13px"
      ForeColor="0, 0, 0" />
  </Titles>
</Chart>

Funnel chart

The following image is a funnel chart that shows the sum of estimated revenue in each stage of the sales pipeline. Funnel chart is one of the default charts available in model-driven apps for the Opportunity table.

Sample funnel chart: Sales Pipeline.

Funnel chart data description

The following example is the contents of the data description XML string for this chart.

<datadefinition>
  <fetchcollection>
    <fetch mapping="logical"
      count="10"
      aggregate="true">
      <entity name="opportunity">
        <attribute name="estimatedvalue"
          aggregate="sum"
          alias="sum_estimatedvalue" />
        <attribute name="stepname"
          groupby="true"
          alias="stepname" />
        <order alias="stepname"
          descending="false" />
      </entity>
    </fetch>
  </fetchcollection>
  <categorycollection>
    <category>
      <measurecollection>
        <measure alias="sum_estimatedvalue" />
      </measurecollection>
    </category>
  </categorycollection>
</datadefinition>

Funnel chart presentation description

The following example is the contents of the presentation description XML string for this chart.

<Chart Palette="None"
  PaletteCustomColors="91,151,213; 237,125,49; 160,116,166; 255,192,0; 68,114,196; 112,173,71; 37,94,145; 158,72,14; 117,55,125; 153,115,0; 38,68,120; 67,104,43; 124,175,221; 241,151,90; 186,144,192; 255,205,51; 105,142,208; 140,193,104; 50,125,194; 210,96,18; 150,83,159; 204,154,0; 51,90,161; 90,138,57;">
  <Series>
    <Series ShadowOffset="0"
      IsValueShownAsLabel="true"
      Font="{0}, 9.5px"
      LabelForeColor="59, 59, 59"
      ChartType="Funnel"
      CustomProperties="FunnelLabelStyle=Outside, FunnelNeckHeight=0, FunnelPointGap=1, FunnelNeckWidth=5">
      <SmartLabelStyle Enabled="True" />
    </Series>
  </Series>
  <ChartAreas>
    <ChartArea>
      <Area3DStyle Enable3D="false" />
    </ChartArea>
  </ChartAreas>
  <Legends>
    <Legend Alignment="Center"
      LegendStyle="Table"
      Docking="right"
      Font="{0}, 11px"
      ShadowColor="0, 0, 0, 0"
      ForeColor="59, 59, 59" />
  </Legends>
  <Titles>
    <Title Alignment="TopLeft"
      DockingOffset="-3"
      Font="Segeo UI, 13px"
      ForeColor="0, 0, 0" />
  </Titles>
</Chart>

Multi-Series chart

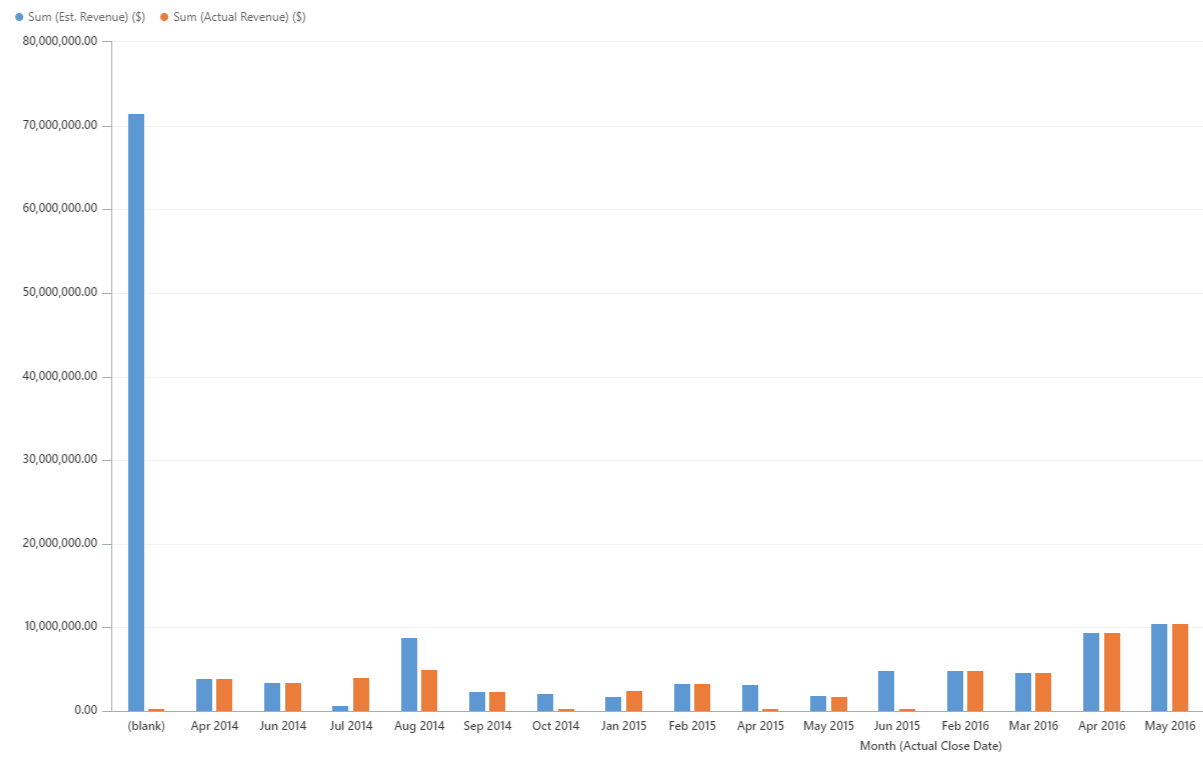

The following image is a multi-series chart that shows the estimated vs. actual revenue closed by month. You can use the chart designer in model-driven apps or methods described in the developer documentation to create these types of charts.

A multi-series chart has multiple <measurecollection> elements in the data description, each mapping to the corresponding <Series> element in the presentation description XML string.

A multi-series chart has multiple <Series> elements in the presentation description; the number of <Series> elements is the same as the number of <measurecollection> elements in the data description XML string.

Sample multi-series chart.

Multi-Series chart data description

The following example is the contents of the data description XML string for this chart.

<datadefinition>
  <fetchcollection>
    <fetch mapping="logical"
      aggregate="true">
      <entity name="opportunity">
        <attribute name="estimatedvalue"
          aggregate="sum"
          alias="estvalue" />
        <attribute name="actualvalue"
          aggregate="sum"
          alias="actvalue" />
        <attribute name="actualclosedate"
          groupby="true"
          alias="actclosedate"
          dategrouping="month" />
      </entity>
    </fetch>
  </fetchcollection>
  <categorycollection>
    <category>
      <measurecollection>
        <measure alias="estvalue" />
      </measurecollection>
      <measurecollection>
        <measure alias="actvalue" />
      </measurecollection>
    </category>
  </categorycollection>
</datadefinition>

Multi-Series chart presentation description

The following example is the contents of the presentation description XML string for this chart.

<Chart>
  <Series>
    <Series Color="91, 151, 213"
      BackSecondaryColor="74,107,155"
      Font="{0}, 9.5px"
      LabelForeColor="59, 59, 59"
      CustomProperties="PointWidth=0.75, MaxPixelPointWidth=40">
      <SmartLabelStyle Enabled="True" />
      <Points />
    </Series>
    <Series Color="237, 125, 49"
      BackSecondaryColor="126,153,79"
      Font="{0}, 9.5px"
      LabelForeColor="59, 59, 59"
      CustomProperties="PointWidth=0.75, MaxPixelPointWidth=40">
      <SmartLabelStyle Enabled="True" />
      <Points />
    </Series>
  </Series>
  <ChartAreas>
    <ChartArea BorderColor="White"
      BorderDashStyle="Solid">
      <AxisY LabelAutoFitMinFontSize="8"
        TitleForeColor="59, 59, 59"
        TitleFont="{0}, 10.5px"
        LineColor="165, 172, 181">
        <MajorGrid LineColor="239, 242, 246" />
        <MajorTickMark LineColor="165, 172, 181" />
        <LabelStyle Font="{0}, 10.5px"
          ForeColor="59, 59, 59" />
      </AxisY>
      <AxisX LabelAutoFitMinFontSize="8"
        TitleForeColor="59, 59, 59"
        TitleFont="{0}, 10.5px"
        LineColor="165, 172, 181">
        <MajorGrid Enabled="False" />
        <MajorTickMark Enabled="False" />
        <LabelStyle Font="{0}, 10.5px"
          ForeColor="59, 59, 59" />
      </AxisX>
    </ChartArea>
  </ChartAreas>
  <Legends>
    <Legend Alignment="Center"
      LegendStyle="Table"
      Docking="Bottom"
      Font="{0}, 11px"
      ShadowColor="0, 0, 0, 0"
      ForeColor="59,59,59" />
  </Legends>
  <Titles>
    <Title Alignment="TopLeft"
      DockingOffset="-3"
      Font="{0}, 13px"
      ForeColor="59, 59, 59" />
  </Titles>
  <BorderSkin PageColor="Control"
    BackColor="CornflowerBlue"
    BackSecondaryColor="CornflowerBlue" />
</Chart>

Comparison chart (Stacked Chart)

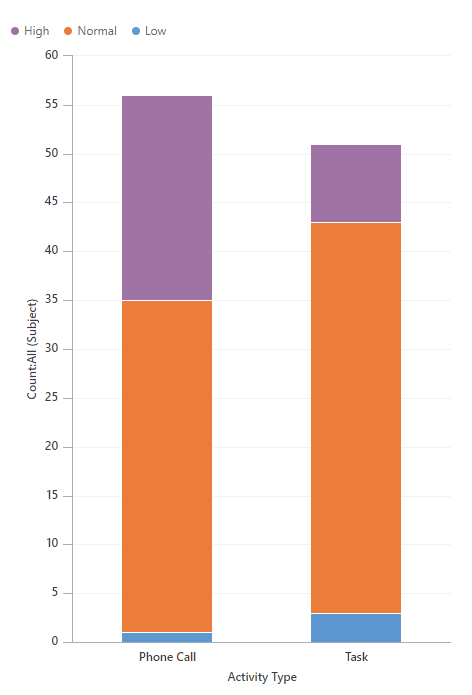

The following image is a comparison chart that shows the number of activities by type and priority. You can use the chart designer in model-driven apps or methods described in the developer documentation to create these types of charts.

A comparison chart has two groupby clauses in the data description XML.

Sample comparison chart.

Comparison chart data description

The following example is the contents of the data description XML string for this chart.

<datadefinition>
  <fetchcollection>
    <fetch mapping="logical"
      aggregate="true">
      <entity name="activitypointer">
        <attribute alias="aggregate_column"
          name="subject"
          aggregate="count" />
        <attribute groupby="true"
          alias="groupby_column"
          name="activitytypecode" />
        <attribute groupby="true"
          alias="groupby_priority"
          name="prioritycode" />
      </entity>
    </fetch>
  </fetchcollection>
  <categorycollection>
      category>
    <measurecollection>
      <measure alias="aggregate_column" />
    </measurecollection>
  </category>
</categorycollection>
</datadefinition>

Comparison chart presentation description

The following example is the contents of the presentation description XML string for this chart.

<Chart Palette="None"
  PaletteCustomColors="91,151,213; 237,125,49; 160,116,166; 255,192,0; 68,114,196; 112,173,71; 37,94,145; 158,72,14; 117,55,125; 153,115,0; 38,68,120; 67,104,43; 124,175,221; 241,151,90; 186,144,192; 255,205,51; 105,142,208; 140,193,104; 50,125,194; 210,96,18; 150,83,159; 204,154,0; 51,90,161; 90,138,57;">
  <Series>
    <Series ChartType="StackedColumn"
      Font="{0}, 9.5px"
      LabelForeColor="59, 59, 59"
      CustomProperties="PointWidth=0.75, MaxPixelPointWidth=40">
    </Series>
  </Series>
  <ChartAreas>
    <ChartArea BorderColor="White"
      BorderDashStyle="Solid">
      <AxisY LabelAutoFitMinFontSize="8"
        TitleForeColor="59, 59, 59"
        TitleFont="{0}, 10.5px"
        LineColor="165, 172, 181"
        IntervalAutoMode="VariableCount">
        <MajorGrid LineColor="239, 242, 246" />
        <MajorTickMark LineColor="165, 172, 181" />
        <LabelStyle Font="{0}, 10.5px"
          ForeColor="59, 59, 59" />
      </AxisY>
      <AxisX LabelAutoFitMinFontSize="8"
        TitleForeColor="59, 59, 59"
        TitleFont="{0}, 10.5px"
        LineColor="165, 172, 181"
        IntervalAutoMode="VariableCount">
        <MajorGrid Enabled="False" />
        <MajorTickMark Enabled="False" />
        <LabelStyle Font="{0}, 10.5px"
          ForeColor="59, 59, 59" />
      </AxisX>
    </ChartArea>
  </ChartAreas>
  <Legends>
    <Legend Alignment="Center"
      LegendStyle="Table"
      Docking="Bottom"
      Font="{0}, 11px"
      ShadowColor="0, 0, 0, 0"
      ForeColor="59,59,59">
    </Legend>
  </Legends>
  <Titles>
    <Title Alignment="TopLeft"
      DockingOffset="-3"
      Font="{0}, 13px"
      ForeColor="59, 59, 59">
    </Title>
  </Titles>
</Chart>

Comparison chart (100% Stacked Chart)

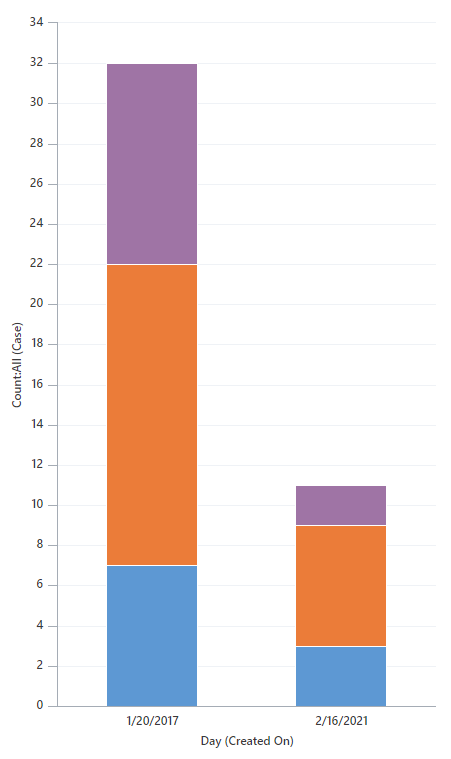

The following image is a comparison chart that shows the number of cases opened on any date, grouped by priority. You can use the chart designer in model-driven apps or methods available in the Web Services to create these types of charts.

A comparison chart has two groupby clauses in the data description XML.

Sample100% stacked chart.

Comparison chart (100% Stacked Chart) data description

The following example is the contents of the data description XML string for this chart.

<datadefinition>
  <fetchcollection>
    <fetch mapping="logical"
      aggregate="true">
      <entity name="incident">
        <order alias="groupby_column"
          descending="false" />
        <attribute alias="aggregate_column"
          name="incidentid"
          aggregate="count" />
        <attribute groupby="true"
          alias="groupby_column"
          dategrouping="day"
          name="createdon" />
        <attribute groupby="true"
          alias="groupby_priority"
          name="prioritycode" />
      </entity>
    </fetch>
  </fetchcollection>
  <categorycollection>
    <category>
      <measurecollection>
        <measure alias="aggregate_column" />
      </measurecollection>
    </category>
  </categorycollection>
</datadefinition>

Comparison chart (100% Stacked Chart) presentation description

The following example is the contents of the presentation description XML string for this chart.

<Chart Palette="None"
  PaletteCustomColors="149,189,66; 197,56,52; 55,118,193; 117,82,160; 49,171,204; 255,136,35; 168,203,104; 209,98,96; 97,142,206; 142,116,178; 93,186,215; 255,155,83">
  <Series>
    <Series ChartType="StackedBar100"
      Font="{0}, 9.5px"
      LabelForeColor="59, 59, 59"
      CustomProperties="PointWidth=0.75, MaxPixelPointWidth=40">
      <SmartLabelStyle Enabled="True" />
    </Series>
  </Series>
  <ChartAreas>
    <ChartArea BorderColor="White"
      BorderDashStyle="Solid">
      <AxisY LabelAutoFitMinFontSize="8"
        TitleForeColor="59, 59, 59"
        TitleFont="{0}, 10.5px"
        LineColor="165, 172, 181"
        IntervalAutoMode="VariableCount">
        <MajorGrid LineColor="239, 242, 246" />
        <MajorTickMark LineColor="165, 172, 181" />
        <LabelStyle Font="{0}, 10.5px"
          ForeColor="59, 59, 59" />
      </AxisY>
      <AxisX LabelAutoFitMinFontSize="8"
        TitleForeColor="59, 59, 59"
        TitleFont="{0}, 10.5px"
        LineColor="165, 172, 181"
        IntervalAutoMode="VariableCount">
        <MajorGrid Enabled="False" />
        <MajorTickMark Enabled="False" />
        <LabelStyle Font="{0}, 10.5px"
          ForeColor="59, 59, 59" />
      </AxisX>
    </ChartArea>
  </ChartAreas>
  <Titles>
    <Title Alignment="TopLeft"
      DockingOffset="-3"
      Font="{0}, 13px"
      ForeColor="0, 0, 0" />
  </Titles>
</Chart>

See also

Data visualization and analytics
Visualization data description schema
Create a chart
View data with visualizations (charts)
